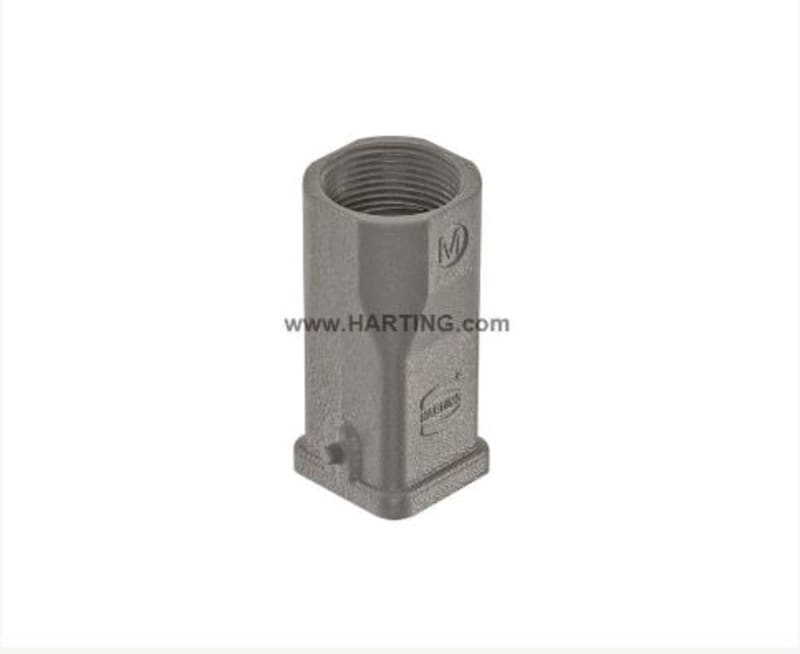

Han 3A-HTE-M25 w. glued seal
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19200031447 Manufacturer description: Hood; for Han-Brid®, with glued seal; Size: 3 A; Single locking lever; Top entry; 1x M25; Material (hood/housing): Zinc die-cast; Powder-coated; RAL 7037 (dust grey); Material (seal): NBR. Han 3A-HTE-M25 w. glued seal.
Technical Specifications
- Manufacturer part number (MPN)
- 19200031447
- EAN / GTIN
- 5713140164031
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han A®
- Type of hood/housing
- Hood
- Description of hood/housing
- for Han-Brid® | With glued seal
- Locking type
- Single locking lever
- Size
- 3 A
- Version
- Top entry
- Number of cable entries
- 1
- Cable entry
- 1x M25
- Field of application
- Standard Hoods/housings for industrial applications
- Pack contents
- Please order seal screw separately.
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Degree of protection acc. to IEC 60529
- IP44 | IP65 with seal screw | IP67 with seal screw
- Type rating acc. to UL 50 / UL 50E
- 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Zinc die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (seal)
- NBR
- UL / CSA
- UL 1977 ECBT2.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 10
- Net weight
- 75.4 g
- Country of origin
- China
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 27 mm
- UV resistant
- No
- Height
- 27 mm
- Depth
- 60 mm
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Zinc
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Plug case
- Degree of protection (IP), mounted
- IP44
- Material adaptor plate
- Aluminium
- Position cable feed
- Atop
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
