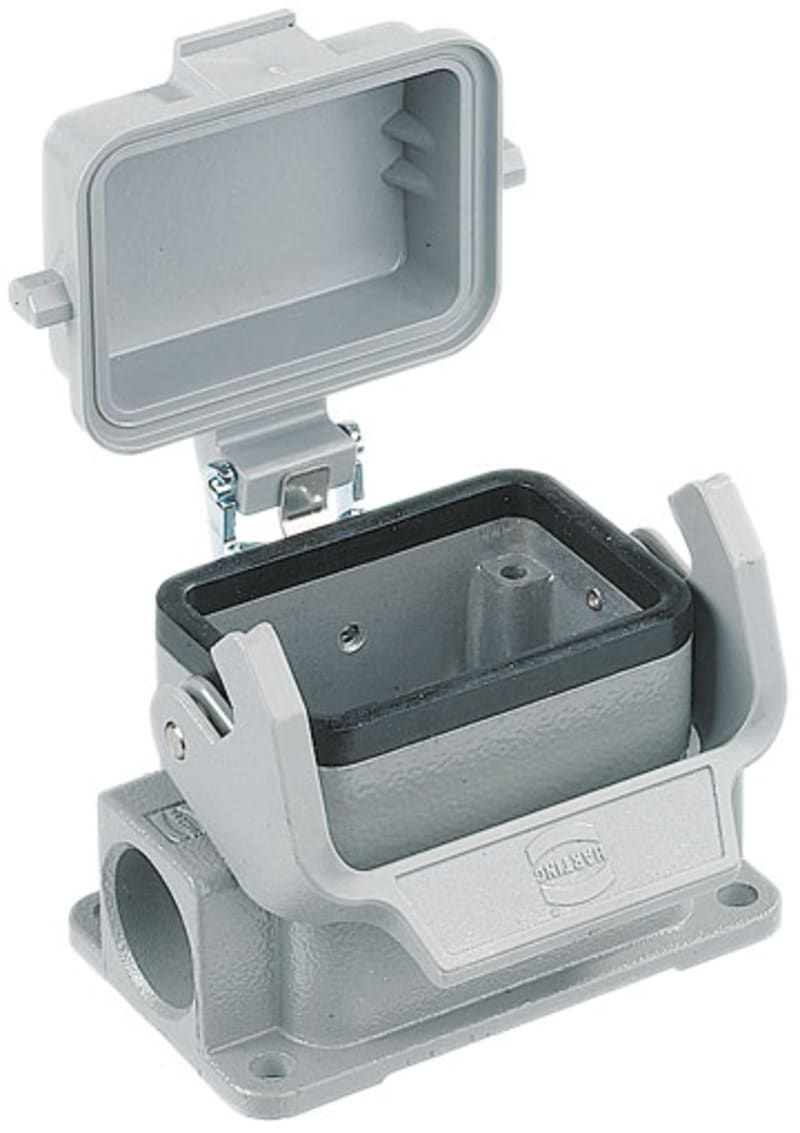

Han B Base Surface LC 1 Lever 2 x M20
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19300061295 Manufacturer description: Surface mounted housing; With thermo-plastic cover; Size: 6 B; Low construction; Single locking lever; Polycarbonate (PC), Stainless steel; Side entry; 2x M20; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey); Material (seal): NBR. UK 19.30.006.1295 HAN 6B HUIS.
Technical Specifications
- Manufacturer part number (MPN)
- 19300061295
- EAN / GTIN
- 5713140125162
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han® B
- Type of hood/housing
- Surface mounted housing
- Description of hood/housing
- With thermo-plastic cover
- Type
- Low construction
- Locking type
- Single locking lever
- Size
- 6 B
- Version
- Side entry
- Number of cable entries
- 2
- Cable entry
- 2x M20
- Field of application
- Standard hoods/housings for industrial connectors
- Han-Easy Lock®
- Yes
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Mating cycles
- 500
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- ECHA SCIP number
- 60b1a572-bb3f-476f-9307-b7d1688bd90c
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel | Naphthalene
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (seal)
- NBR
- Material (locking)
- Polycarbonate (PC) | Stainless steel
- Colour (locking)
- RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 211 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 52 mm
- UV resistant
- No
- Height
- 51.5 mm
- Depth
- 51.5 mm
- Shape
- Rectangular
- With hinged lid
- Yes
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 2
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 70 mm
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Socket case
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP65
- Position cable feed
- Sideways
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140125162
- SAP 1000299400
- Code 8187865
Product Documentation
