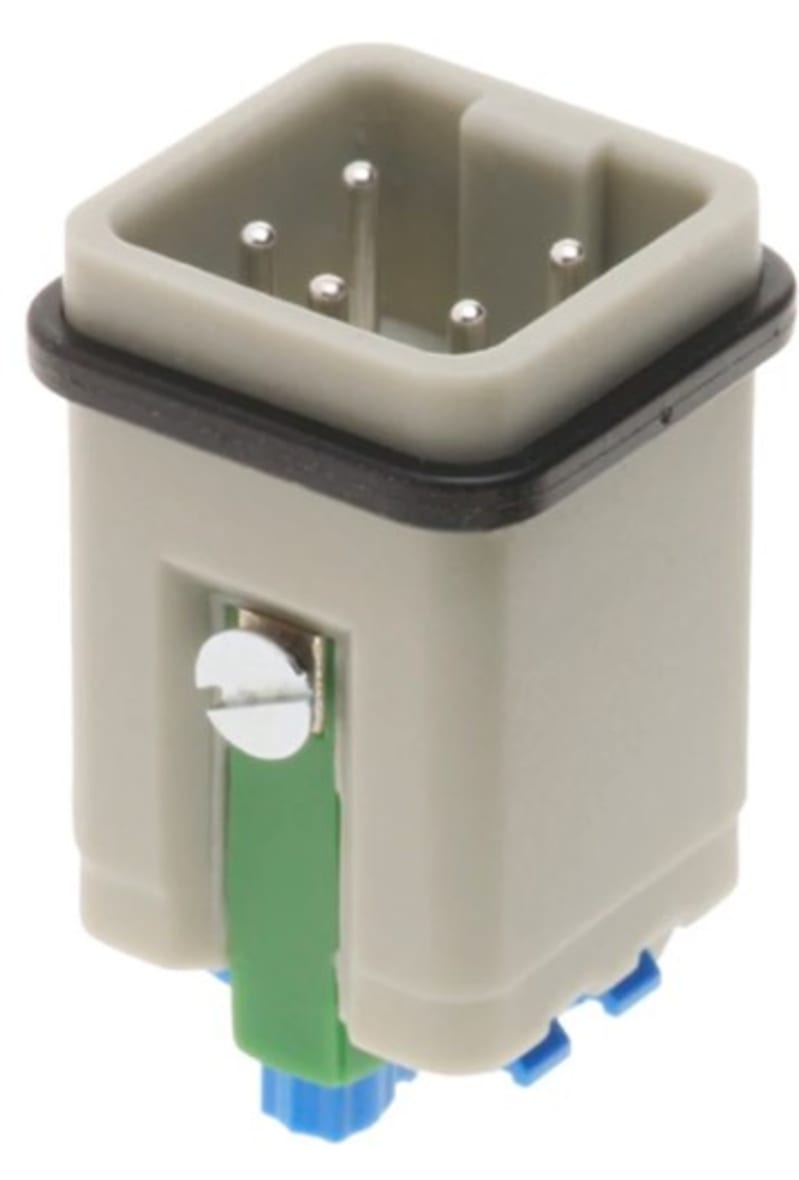

Han 3A male insert with Quick-Lock

Harting 09200032633 Manufacturer description: Inserts; Han-Quick Lock® termination; Male; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 10 A; Size: 3 A; Contacts: 3; Conductor cross-section: 0.5. 2.5 mm²; Copper alloy; Silver plated. Han A® 3A Plug insert, Han-Quick Lock®, 4+earth, 10A 230/400V, 0,5mm2 - 2,5mm2.

Manufacturer part number (MPN)

09200032633

EAN / GTIN

5713140038837

Sales unit

pcs

Package quantity

10 pcs

Category

Inserts

Series

Han A®

Termination method

Han-Quick Lock® termination

Gender

Male

Size

3 A

Number of contacts

3

PE contact

Yes

Details

Blue slide | for stranded wire according to IEC 60228 Class 5

Conductor cross-section (mm²)

0.5 ... 2.5 mm²

Rated current

10 A

Rated voltage conductor-earth

230 V

Rated voltage conductor-conductor

400 V

Rated impulse voltage

4 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Limiting temperature

-40 ... +125 °C

Mating cycles

500

ECHA SCIP number

564b7d75-7bf6-4cfb-acb1-2168eb61b675

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984

European customs tariff number

85366990

Packaging size

10

Net weight

16.5 g

Country of origin

Romania

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Width

21 mm

Height

21 mm

Depth

37.5 mm

Rated voltage

600 V

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

3

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

4 kV

Type of electric connection

Spring clamp connection

Material of contact surface

Silver

Overvoltage category

III

Diameter plug-in contact

1.6 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

0.5–2.5 mm²

Connectable conductor cross section multi-wired

0.5–2.5 mm²

With protective conductor

Yes

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

10 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

3

HS Code

8536.90
