Harting

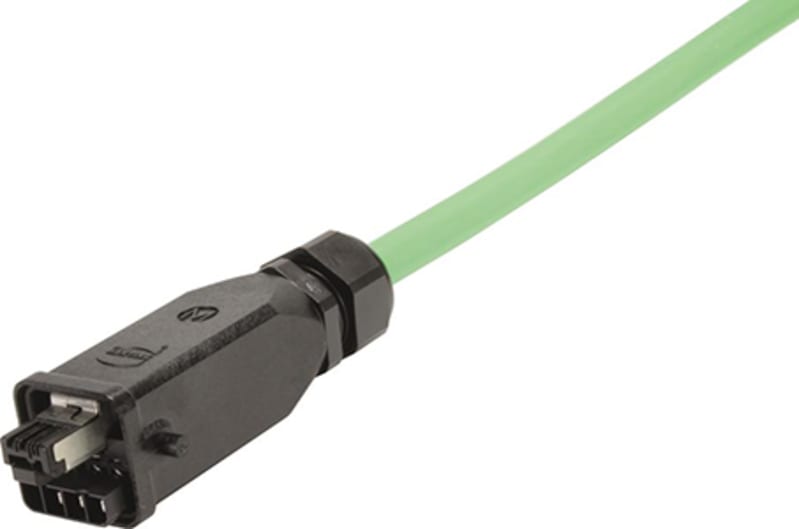

HAN3A RJ45 Hybrid CAT5 plug 4+4P IDC
Part number09451251300EAN / GTIN5713140058880HS code8536.70
Cables & Wiring
Signal & Data Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09451251300 Manufacturer description: Connectors; Cable connector; IDC insulation displacement termination; Contacts: 8; Hood; Straight; Size: 3 A; Material: Polycarbonate (PC). Han® 3A Hybrid Cable Plug complete in plastic. Cat. 5 + 4 contacts for 48V. IP65/67.
Technical Specifications
- Manufacturer part number (MPN)
- 09451251300
- EAN / GTIN
- 5713140058880
- Sales unit
- pcs
- Category
- Connectors
- Identification
- Hybrid
- Series of hoods/housings
- Han A®
- Element
- Cable connector
- Series
- RJ45
- Type of hood/housing
- Hood
- Description of hood/housing
- Straight
- Termination method
- IDC insulation displacement termination
- Size
- 3 A
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 8
- Number of power contacts
- 4
- Number of data contacts
- 4
- Conductor cross-section (mm²)
- 0.22 ... 0.32 mm² Stranded (Data) | 0.26 ... 0.32 mm² Solid (Data) | 1.5 mm² Power
- Conductor cross-section (AWG)
- AWG 24 ... AWG 22 Stranded (Data) | AWG 23 ... AWG 22 Solid (Data) | AWG 16 Power
- Wire outer diameter
- ≤1.6 mm (Data) | ≤2.75 mm (Power)
- Rated voltage (data)
- 50 V AC | 60 V DC
- Rated voltage (power)
- 48 V DC
- Rated current (power)
- 16 A
- Rated current (data)
- 1.76 A
- Limiting temperature
- -40 ... +70 °C
- Storage temperature
- +5 ... +50 °C
- Mating cycles
- 500
- Cable diameter
- 6 ... 12 mm
- Transmission characteristics
- Cat. 5 Class D up to 100 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R26
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Polycarbonate (PC)
- Colour (hood/housing)
- Black
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- Specifications
- EN 45545-2
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 69.605 g
- Country of origin
- Romania
- eCl@ss
- 27440113 Rectangular connectors (set)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Width
- 20 mm
- Height
- 20 mm
- Depth
- 50 mm
- Number of poles
- 8
- Rated current In
- 16 A
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.22–0.32 mm²
- Connectable conductor cross section multi-wired
- 0.22–0.32 mm²
- Housing material
- Plastic
- With protective conductor
- No
- Operating temperature
- -40–70 °C
- EMC-version
- Yes
- Number of conduit inlets
- 1
- With sealing
- No
Standards & Compliance
- HS Code
- 8536.70
Cross References
- EAN 5713140058880
- SAP 1000300130
- Code 8195781
Product Documentation
Document preview: HARTING 09451251300 — Data Sheet (OEM)
