Harting

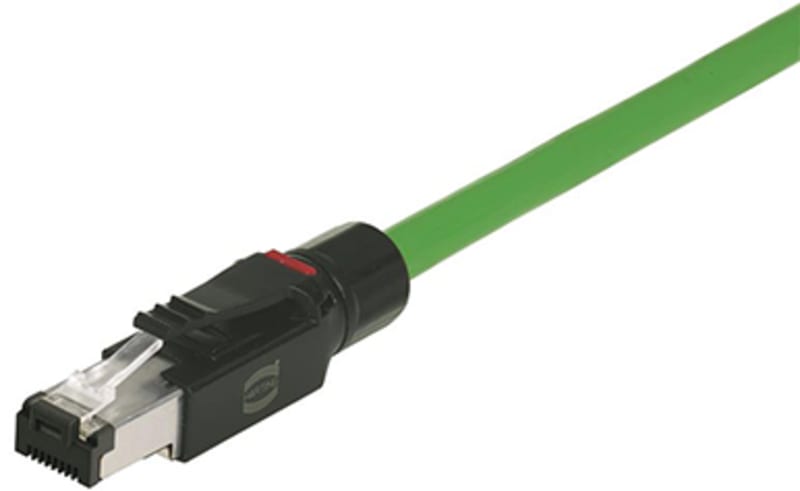

RJI RJ45 PN plug CAT5, 4P IDC straight
Part number09451511120EAN / GTIN5713140059351HS code8536.90
Cables & Wiring
Signal & Data Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09451511120 Manufacturer description: Connectors; Cable connector PROFINET, Straight; IDC insulation displacement termination; Contacts: 4; Material: Polyamide (PA); Degree of protection: IP20. RJ45 4P Field Plug IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 09451511120
- EAN / GTIN
- 5713140059351
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Connectors
- Element
- Cable connector
- Specification
- PROFINET | Straight
- Series
- HARTING RJ Industrial® | RJ45
- Features
- Suitable for all PoE versions
- Termination method
- IDC insulation displacement termination
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 4
- Conductor cross-section (mm²)
- 0.1 ... 0.32 mm²
- Conductor cross-section (AWG)
- AWG 27/7 ... AWG 22/7 Stranded | AWG 27/1 ... AWG 22/1 Solid
- Wire outer diameter
- 1.6 mm
- Limiting temperature
- -40 ... +70 °C
- Relative humidity
- 95 % Non-condensing (operation)
- Mating cycles
- 750
- Degree of protection acc. to IEC 60529
- IP20
- Cable diameter
- 4.5 ... 9 mm
- Transmission characteristics
- Cat. 5 Class D up to 100 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s
- ECHA SCIP number
- d361ed36-dee0-4df8-9f2e-b62dd7563c1a
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R26
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Polyamide (PA)
- Colour (hood/housing)
- Black
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- Specifications
- EN 45545-2
- European customs tariff number
- 85366990
- Packaging size
- 10
- Net weight
- 2.485 g
- Country of origin
- Romania
- eCl@ss
- 27440114 Rectangular connector (for field assembly)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Width
- 13.1 mm
- Height
- 16.11 mm
- Depth
- 57 mm
- Number of poles
- 4
- Rated voltage
- 24 V
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.1–0.32 mm²
- Connectable conductor cross section multi-wired
- 0.1–0.32 mm²
- Housing material
- Plastic
- With protective conductor
- No
- Operating temperature
- -40–70 °C
- Degree of protection (IP), mounted
- IP20
- EMC-version
- Yes
- Number of conduit inlets
- 1
- With sealing
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140059351
- SAP 1200111664
- Code 81963902
Product Documentation
Document preview: HARTING 09451511120 — Data Sheet (OEM)
More from Harting
Harting

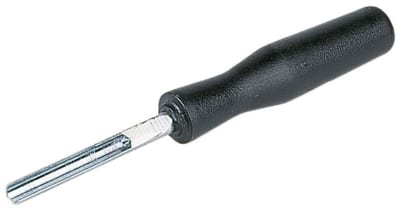

Removal Tool Han C 1,5-6 mm²
09990000305
Harting

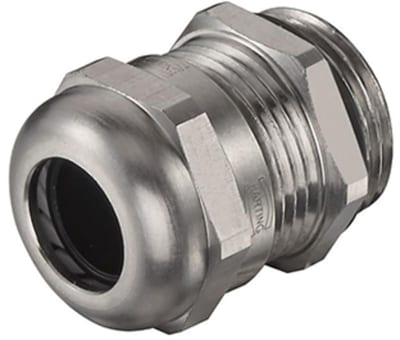

Han CGM-M M20X1,5 D.5-9MM/6-12MM
19000005081
Harting

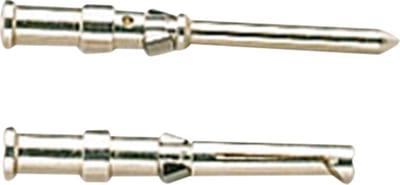

R 15-STI-C-0,5 MM²-AWG 20
09150006103
Harting
Han CGM-M M50X1,5 D.32-38MM
19000005086
Harting

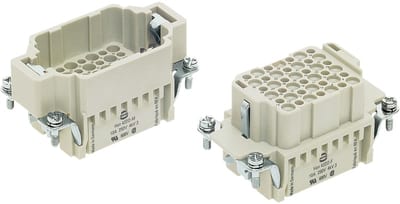

Han 42DD-SMC-MI-CRT (09160423001)
Harting

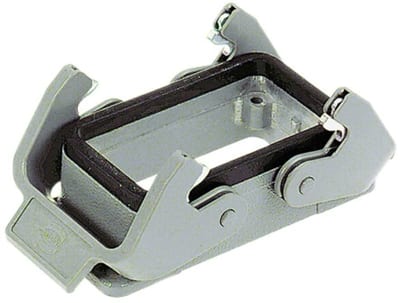

Han 10B-HBM-DL (09300100301)
