Harting
R 15-STI-C-0,5 MM²-AWG 20
Part number09150006103EAN / GTIN5713140021822HS code8536.69
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

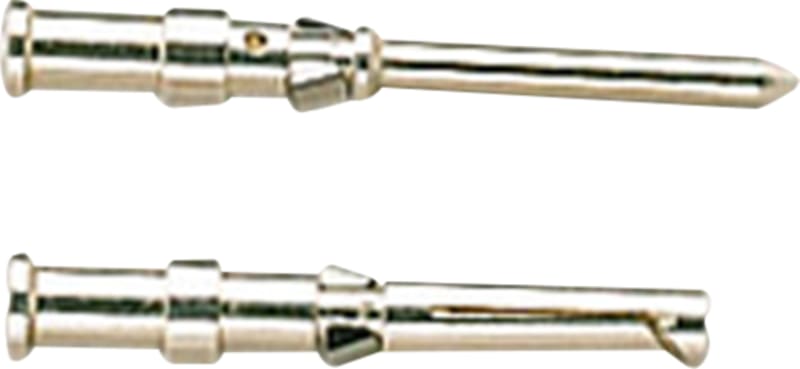

Harting 09150006103 Manufacturer description: Crimp contact; Rated current: ≤10 A; Male; Copper alloy; Silver plated; Conductor cross-section: 0.5 mm²; AWG 20. HAN D M CRIMP CONTACT AG 0,5 MM²-AWG 20.
Technical Specifications
- Manufacturer part number (MPN)
- 09150006103
- EAN / GTIN
- 5713140021822
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Category
- Contacts
- Type of contact
- Crimp contact
- Series
- Han D®
- Termination method
- Crimp termination
- Gender
- Male
- Manufacturing process
- Turned contacts
- Conductor cross-section (mm²)
- 0.5 mm²
- Conductor cross-section (AWG)
- AWG 20
- Rated current
- 10 A
- Contact resistance
- 3 mΩ
- Stripping length
- 8 mm
- Mating cycles
- 500
- ECHA SCIP number
- b51e5b97-eeb5-438b-8538-f1771d43c17d
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 100
- Net weight
- 0.6 g
- Country of origin
- Germany
- eCl@ss
- 27440204 Contact for industrial connectors
- ETIM
- EC000796
- UNSPSC 24.0
- 39121522
- Mounting method
- Inserted
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Type of electric connection
- Crimp connection
- Material of contact surface
- Silver
- Strip length
- 8 mm
- Diameter plug-in contact
- 1.6 mm
- Connectable conductor cross section multi-wired
- 0.5 mm²
- Max. rated current of one contact
- 10 A
- Material contact
- Other copper alloys
- Min. number of insertion cycles
- 500
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140021822
- SAP 1000444532
- Code 8542011
Product Documentation
Document preview: HARTING 09150006103 — Data Sheet (OEM)
