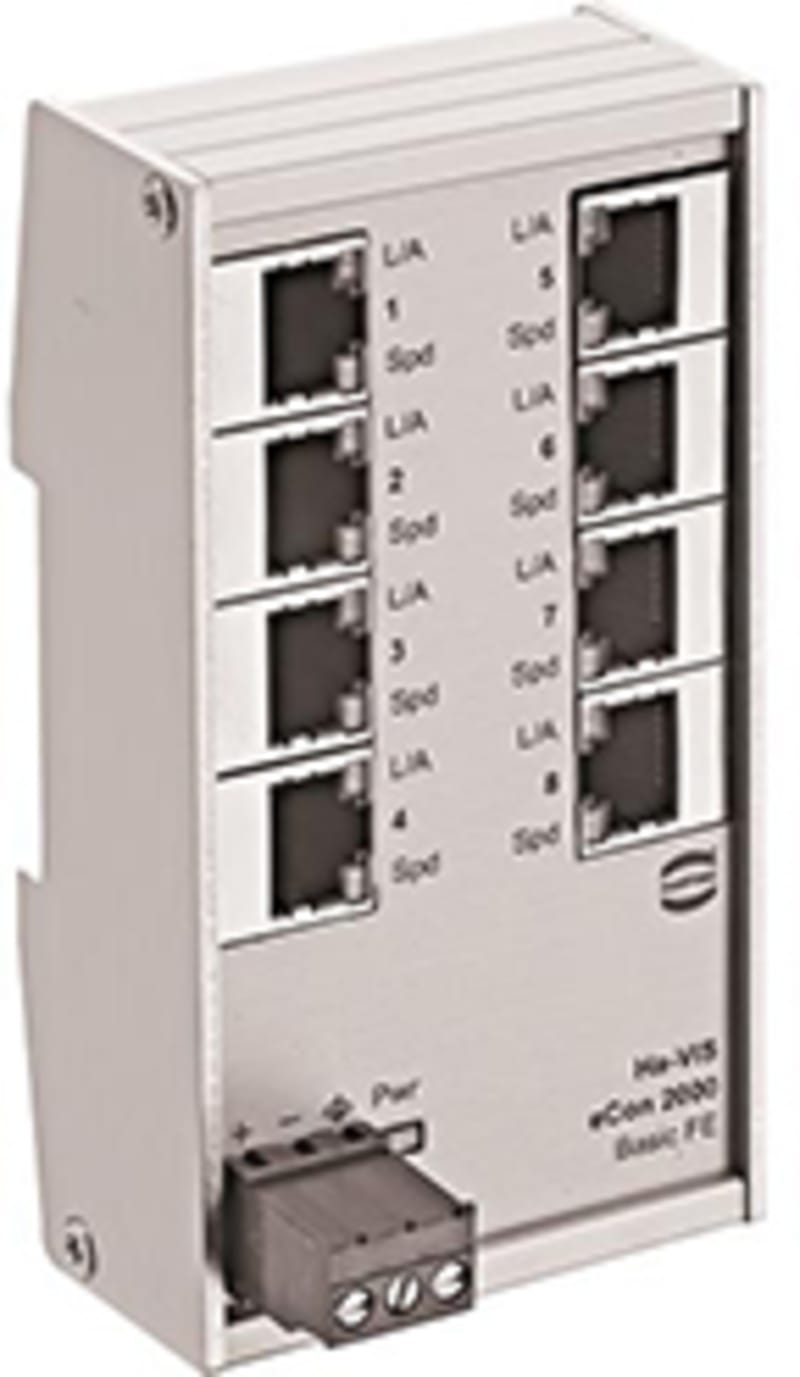

Ha-VIS eCon 2080BT-A

Harting 24020080000 Manufacturer description: Industrial Ethernet Switches; Unmanaged; Fast Ethernet; Nominal voltage: 24, 48; Total number of ports: 8; 10/100 Mbit/s (RJ45-Ports): 8; Operating temperature: -40. +70 °C. eCon 2080BT-A.

Manufacturer part number (MPN)

24020080000

EAN / GTIN

5713140147379

HS code

8536.90

Sales unit

pcs

Element

Industrial Ethernet Switches

Specification

Unmanaged

Series

Ha-VIS eCon 2000

Type of Ethernet

Fast Ethernet

Total number of ports

8

Fixing

35 mm DIN rail acc. to EN 60715

Switching technology

Store and Forward

Frame size

1.522 kB

MAC table size

1k Entries

Packet buffer size

0.44 Megabit

Non blocking

Yes

Quality of service

Yes

Energie Efficient Ethernet

Yes

Flow control

Off

Signal contact

No

PoE functionality

No

Pack contents

Pluggable screw contact for power supply | Assembly instructions

Operating temperature

-40 ... +70 °C

Storage temperature

-40 ... +85 °C

Relative humidity

0.1 ... 95 % Non-condensing (operation) | 0.1 ... 95 % Non-condensing (storage/transport)

Air pressure

≥795 hPa ≈ 2000 m

Degree of protection acc. to IEC 60529

IP30 mated condition

MTBF

2530000 h

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (hood/housing)

Aluminium (anodised)

Length

27.3 mm

Width

60 mm

Height

113.5 mm

EtherNet/IP

No

UL / CSA

UL 508 NRAQ.E253944 | CSA-C22.2 No. 142 NRAQ7.E253944

PROFINET

No

FCC

Yes

Approvals

CE | DNV GL

European customs tariff number

85176200

Packaging size

1

Net weight

277 g

Country of origin

Germany

eCl@ss

19170130 Network switch (general application)

ETIM

EC000734

UNSPSC 24.0

43222612

Nominal voltage

24 V DC | 48 V DC

Permissible voltage

9 ... 60 V DC

Surge protection

Yes

Operating current

<58 mA @ 24 V DC | <31 mA @ 48 V DC

Starting current

<2.8 A @ 24 V DC | <5.6 A @ 48 V DC

Overcurrent protection

2 A at input

Power consumption

<1.39 W @ 24 V DC

Termination method

Pluggable screw contact

Number of contacts

3

Conductor cross-section

0.08 ... 2.5 mm²

Conductor cross-section (AWG)

AWG 28 ... AWG 12

Pinout

+ / - / FE

Reverse polarity protection

Yes

Supply circuit

SELV (Circuit Breaker 10 A)

Transmission standard

10BASE-Te | 100BASE-TX EEE

Transmission physics

Twisted Pair Cat. 5

Auto-polarity

Yes

Auto-negotiation

Yes

Auto-MDI(X)

Yes

Transmission length

100 m

10/100 Mbit/s (RJ45-Ports)

8

Data rate

10 Mbit/s | 100 Mbit/s

HS Code

8536.90
