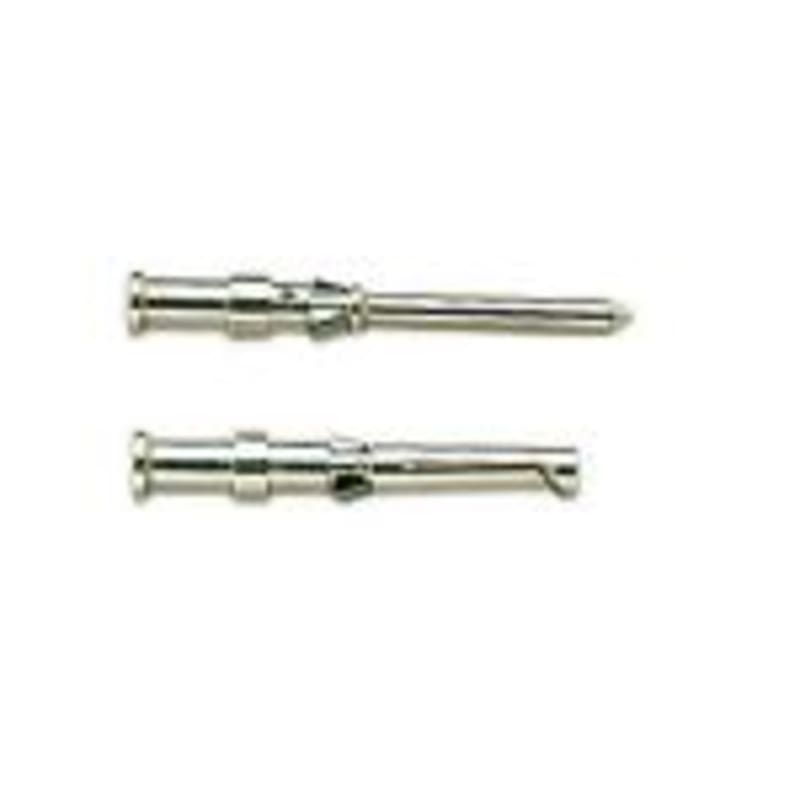

Han D F Crimp Contact Ag AWG 14
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09150006206 Manufacturer description: Crimp contact; Rated current: ≤10 A; Female; Copper alloy; Silver plated; Conductor cross-section: 2.5 mm²; AWG 14. Han D® crimp sleeve 2,5 mm2, silver.
Technical Specifications
- Manufacturer part number (MPN)
- 09150006206 EAN / GTIN: 5713140022096 Sales unit: pcs Package quantity: 100 pcs Category: Contacts Type of contact: Crimp contact Series: Han D® Termination method: Crimp termination Gender: Female Manufacturing process: Turned contacts Conductor cross-section (mm²): 2.5 mm² Conductor cross-section (AWG): AWG 14 Rated current: 10 A Contact resistance: 3 mΩ Stripping length: 6 mm Mating cycles: 500 ECHA SCIP number: b51e5b97-eeb5-438b-8538-f1771d43c17d China RoHS: 50 RoHS: compliant with exemption REACH SVHC substances: Yes | Lead REACH Annex XVII substances: Not contained REACH ANNEX XIV substances: Not contained ELV status: compliant with exemption California Proposition 65 substances: Yes | Lead RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight material (contacts): Copper alloy Surface (contacts): Silver plated Specifications: IEC 60664-1 | IEC 61984 European customs tariff number: 85366990 Packaging size: 100 Net weight: 0.63 g Country of origin: Germany eCl@ss: 27440204 Contact for industrial connectors ETIM: EC000796 UNSPSC 24.0: 39121522 Mounting method: Inserted Contact type: Bus Ambient temperature: -40–125 °C Type of electric connection: Crimp connection material of contact surface: Silver Strip length: 6 mm Diameter plug-in contact: 1.6 mm Connectable conductor cross section multi-wired: 2.5 mm² Max. rated current of one contact: 10 A material contact: Other copper alloys Min. number of insertion cycles: 500
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140022096
- SAP 1000444718
- Code 8240161
Product Documentation
More from Harting
Harting
Removal Tool, Han D, Mini
09990000052
Harting
Han RJ45 module, male for plugs
09140014622
Harting
Han 16B HOOD SIDE Entry M32
19300161522
Harting
Ha-VIS eCon 3160BT-A
24030160000
Harting
Han Q 7/0-M (09120073001)
Harting
Han CGM-P M40X1,5 D.22-32MM grey
19000005198
Harting
PN Type B Hybrid 4XAWG22/7 + 4X1.5, 50M
9456000340
Harting
Han B Hood Side Entry HC 2 Reels M32
19300100547
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 09150006206?
- 09150006206 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 09150006206.
- What is the HS code for 09150006206?
- The customs tariff (HS) code for 09150006206 is 8536.90.
- Who manufactures 09150006206?
- 09150006206 is a Harting product in the Electrical Components range.
- Is a datasheet available for 09150006206?
- Yes — the 09150006206 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 09150006206?
- The minimum order quantity is 1.
- Is 09150006206 available?
- Yes — 09150006206 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
