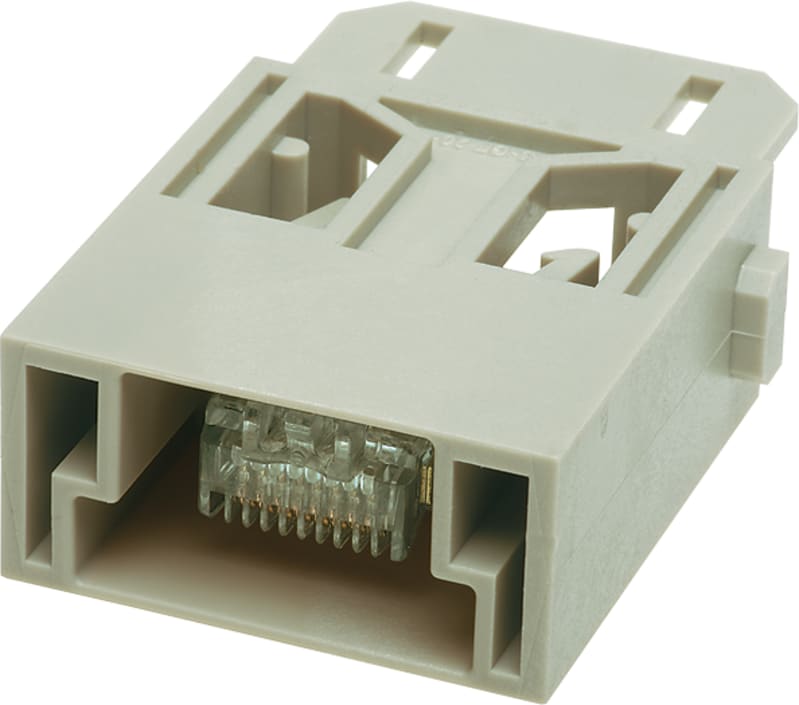

Han RJ45 module, male for plugs
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140014622 Manufacturer description: Han® RJ45 module; Single module; Male; Contacts: 8; Rated current: 1 A; Polycarbonate (PC); RAL 7032 (pebble grey). Han RJ45 module, male for plugs.
Technical Specifications
- Manufacturer part number (MPN)
- 09140014622
- EAN / GTIN
- 5713140019430
- Sales unit
- pcs
- Category
- Modules
- Type of module
- Han® RJ45 module
- Size of the module
- Single module
- Series
- Han-Modular®
- Gender
- Male
- Number of contacts
- 8
- Details
- for data connectors
- Rated current
- 1 A
- Rated voltage
- 50 V
- Rated impulse voltage
- 0.8 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 30 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- 500
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Not contained
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 6 g
- Country of origin
- Germany
- eCl@ss
- 27440207 Adapter for industrial connectors (module/contact insert)
- ETIM
- EC002312
- UNSPSC 24.0
- 39121469
- With protective conductor
- No
- Min. number of insertion cycles
- 500
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140019430
- SAP 1200010335
- Code 81381128
Product Documentation
More from Harting
Harting

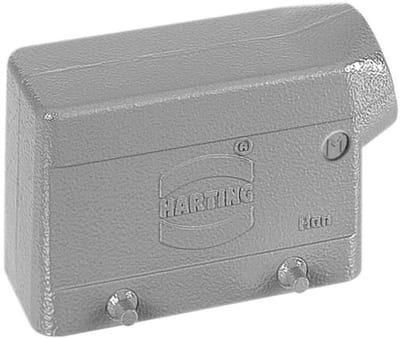

Han 16B HOOD SIDE Entry M32
19300161522
Harting
Ha-VIS eCon 3160BT-A
24030160000
Harting

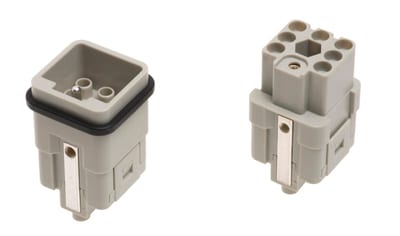

Han Q 7/0-M (09120073001)
Harting

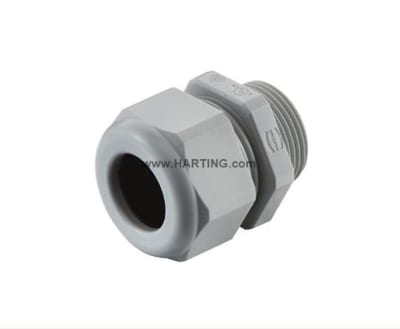

Han CGM-P M40X1,5 D.22-32MM grey
19000005198
Harting
PN Type B Hybrid 4XAWG22/7 + 4X1.5, 50M
9456000340
Harting

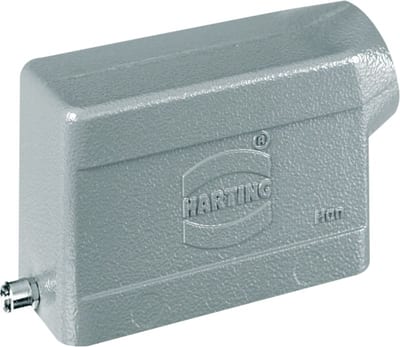

Han B Hood Side Entry HC 2 Reels M32
19300100547
Harting

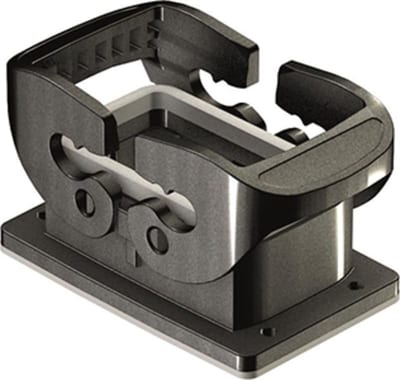

Han-Eco 10B Outd-HBM-with DL
19432100320
Harting

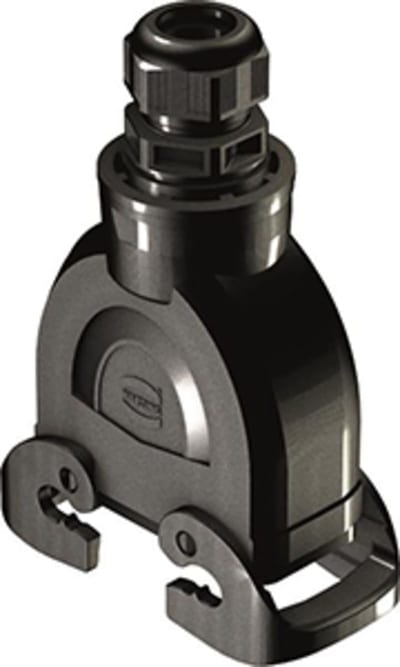

Han-Eco 16B-HCC-WITH DL-M40-GLANDED
