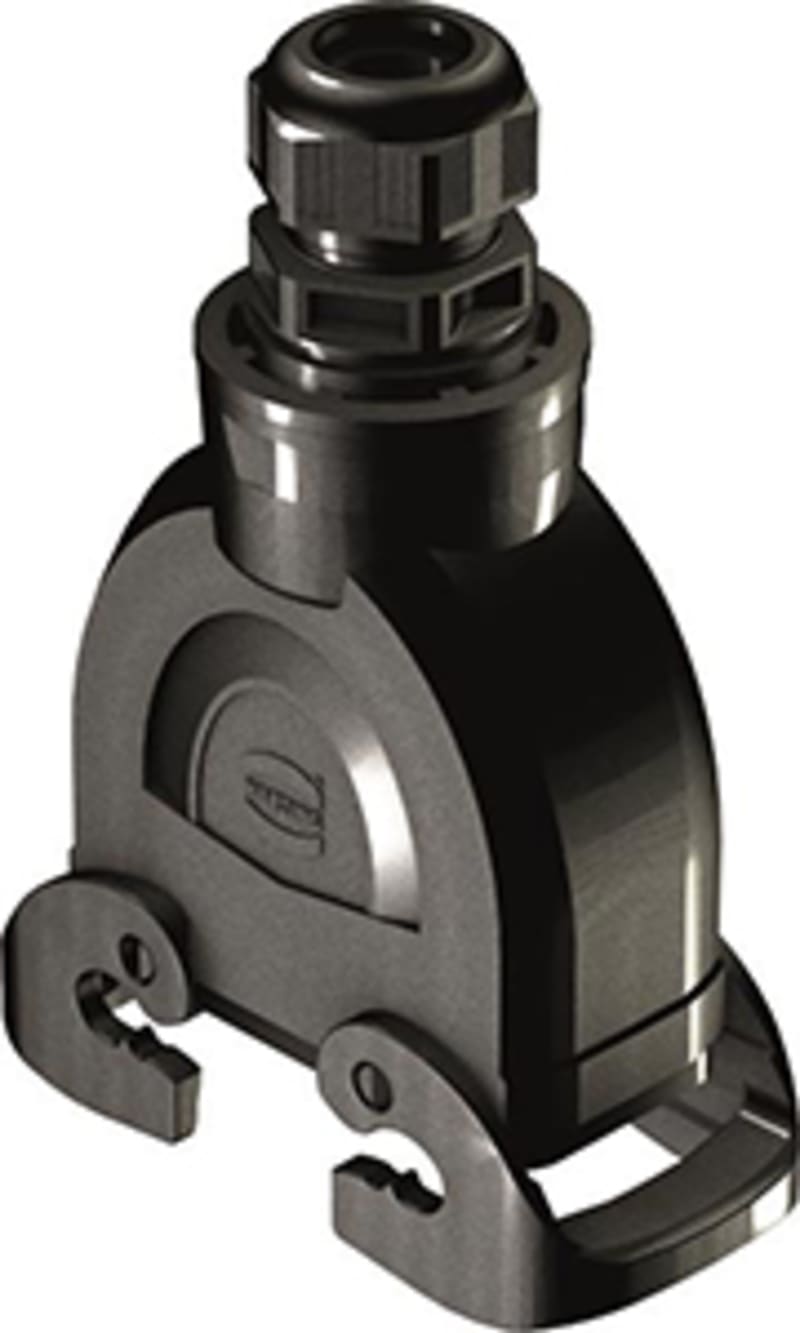

Han-Eco 16B-HCC-WITH DL-M40-GLANDED
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19431160738 Manufacturer description: Cable to cable housing; With integrated cable gland; Size: 16 B; Double locking lever; Polyamide (PA), Fibre-glass reinforced; Top entry; 1x M40; Material (hood/housing): Polyamide (PA), Fibre-glass reinforced; RAL 9005 (jet black); Material (seal): NBR. Han-Eco 16B cover, joint, M40.
Technical Specifications
- Manufacturer part number (MPN)
- 19431160738
- EAN / GTIN
- 5713140179189
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Eco® B
- Type of hood/housing
- Cable to cable housing
- Description of hood/housing
- With integrated cable gland
- Locking type
- Double locking lever
- Size
- 16 B
- Version
- Top entry
- Number of cable entries
- 1
- Cable entry
- 1x M40
- Field of application
- Hoods/housings for industrial applications
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Number of relockings
- 500
- Degree of protection acc. to IEC 60529
- IP66
- Clamping range
- 16 ... 28 mm
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-2) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (hood/housing)
- RAL 9005 (jet black)
- Material (seal)
- NBR
- Colour (seal)
- RAL 9005 (jet black)
- Material (locking)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (locking)
- RAL 9005 (jet black)
- Material flammability class acc. to UL 94
- V-0
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- CE
- Specifications
- IEC 61984 | EN 45545-2 Fire protection on railway vehicles
- European customs tariff number
- 85389099
- Packaging size
- 1
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 57 mm
- UV resistant
- Yes
- Height
- 165 mm
- Depth
- 140 mm
- With hinged lid
- No
- Housing colour
- Black
- Type of locking
- Double locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Housing material
- Plastic
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Coupling housing
- Degree of protection (IP), mounted
- IP66
- Material adaptor plate
- Plastic
- Position cable feed
- Atop
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- Metric
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 5713140179189
- SAP 1200592350
- Code 82971829
Product Documentation
More from Harting
Harting
Ha-VIS eCon 2160BT-A
24020160000
Harting
Han 32A-GG-QB-M32 (19200320437)
Harting
Ha-VIS eCon 2052GBT-AD-P
24024052120
Harting
HARTING outd. CAT5E 4X2XAWG26/7 PVC 50M
9456000240
Harting

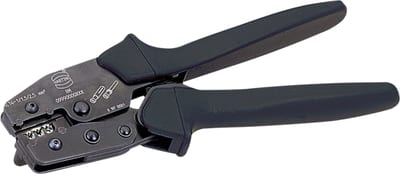

Han Crimp TOOL WITH Locator
09990000021
Harting
HAR PROFINET Typ B 4XAWG22/7 outd. 50M
9456000145
Harting

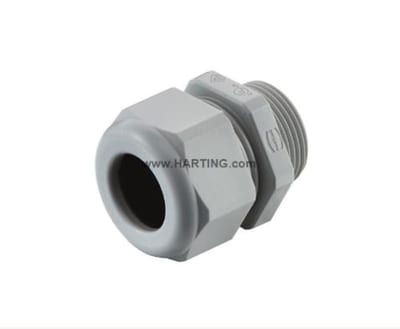

Han CGM-P M20X1,5 D.10-14MM grey
19000005184
Harting

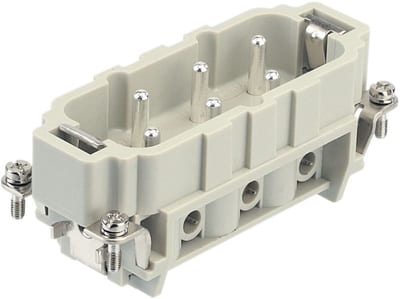

Han 6HSB-M-S (09310062601)
