Harting

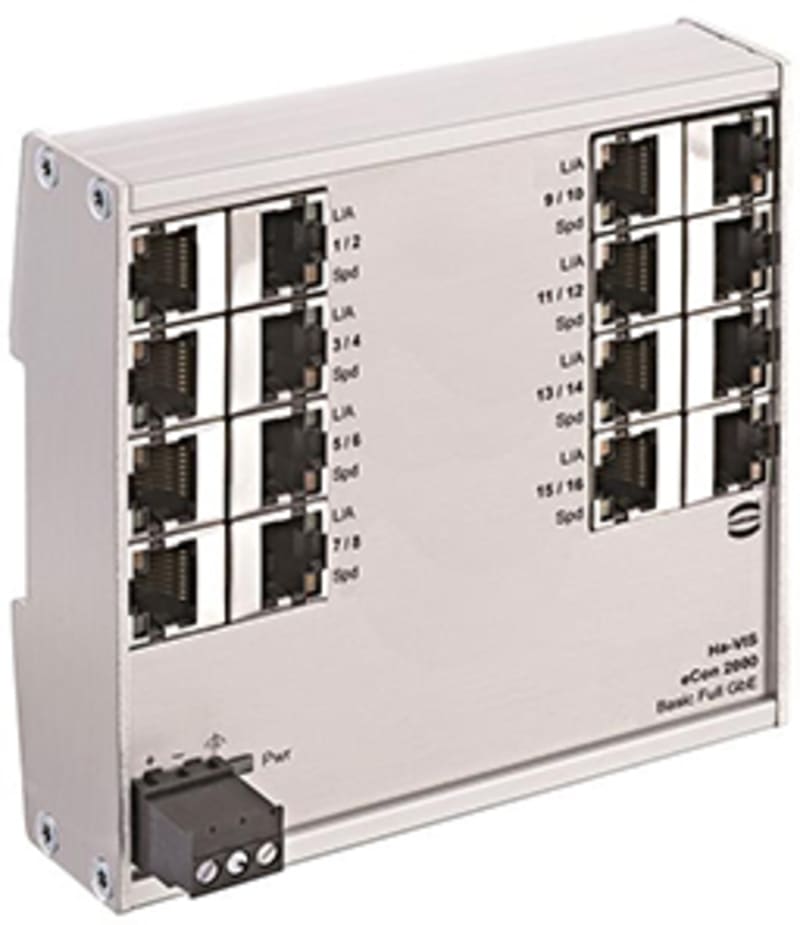

Ha-VIS eCon 2160BT-A
Part number24020160000EAN / GTIN5713140147416HS code8536.90
Control & Automation
Ethernet Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 24020160000 Manufacturer description: Industrial Ethernet Switches; Unmanaged; Fast Ethernet; Nominal voltage: 24, 48; Total number of ports: 16; 10/100 Mbit/s (RJ45-Ports): 16; Operating temperature: -40. +70 °C. eCon 2160BT-A.
Technical Specifications
- Manufacturer part number (MPN)
- 24020160000
- EAN / GTIN
- 5713140147416
- HS code
- 8536.90
- Sales unit
- pcs
- Element
- Industrial Ethernet Switches
- Specification
- Unmanaged
- Series
- Ha-VIS eCon 2000
- Type of Ethernet
- Fast Ethernet
- Total number of ports
- 16
- Fixing
- 35 mm DIN rail acc. to EN 60715
- Switching technology
- Store and Forward
- Frame size
- 2 kB
- MAC table size
- 8k Entries
- Packet buffer size
- 2 Megabit
- Non blocking
- Yes
- Quality of service
- Yes
- Energie Efficient Ethernet
- Yes
- Flow control
- Off
- Signal contact
- No
- PoE functionality
- No
- Pack contents
- Pluggable screw contact for power supply | Assembly instructions
- Operating temperature
- -40 ... +70 °C
- Storage temperature
- -40 ... +85 °C
- Relative humidity
- 0.1 ... 95 % Non-condensing (operation) | 0.1 ... 95 % Non-condensing (storage/transport)
- Air pressure
- ≥795 hPa ≈ 2000 m
- Degree of protection acc. to IEC 60529
- IP30 mated condition
- MTBF
- 1750000 h
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes
- Material (hood/housing)
- Aluminium (anodised)
- Length
- 27.3 mm
- Width
- 120 mm
- Height
- 113.5 mm
- EtherNet/IP
- No
- UL / CSA
- UL 508 NRAQ.E253944 | CSA-C22.2 No. 142 NRAQ7.E253944
- PROFINET
- No
- FCC
- Yes
- Approvals
- CE | DNV GL
- European customs tariff number
- 85176200
- Packaging size
- 1
- Net weight
- 491 g
- Country of origin
- Germany
- eCl@ss
- 19170130 Network switch (general application)
- ETIM
- EC000734
- UNSPSC 24.0
- 43222612
- Nominal voltage
- 24 V DC | 48 V DC
- Permissible voltage
- 9 ... 60 V DC
- Surge protection
- Yes
- Operating current
- <93 mA @ 24 V DC | <49 mA @ 48 V DC
- Starting current
- <1.6 A @ 24 V DC
- Overcurrent protection
- 2 A at input
- Power consumption
- <2.23 W @ 24 V DC
- Termination method
- Pluggable screw contact
- Number of contacts
- 3
- Conductor cross-section
- 0.08 ... 2.5 mm²
- Conductor cross-section (AWG)
- AWG 28 ... AWG 12
- Pinout
- + / - / FE
- Reverse polarity protection
- Yes
- Supply circuit
- SELV (Circuit Breaker 10 A)
- 10/100 Mbit/s (RJ45-Ports)
- 16
