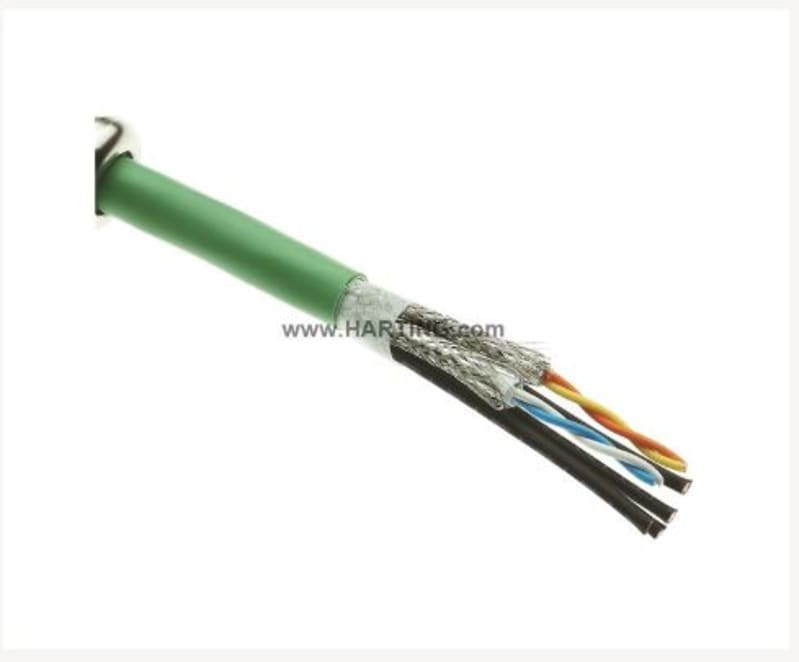

PN Type B Hybrid 4XAWG22/7 + 4X1.5, 50M
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 9456000340 Manufacturer description: Hybrid cable (copper / copper); Flame retardant; 4x AWG 22/7, 4x 1.5 mm²; FRNC (LSZH); Cable length: 50 m; Cat. 5 Class D up to 100 MHz. Hybrid Cat5 + 4 x 6mm2, FRNC outer jacket, green.
Technical Specifications
- Manufacturer part number (MPN)
- 9456000340
- EAN / GTIN
- 5713140062023
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- System cabling
- Element
- Bulk cables
- Specification
- Not assembled
- Type of cable
- Hybrid cable (copper / copper)
- Description of the cable
- Flame retardant
- Printing on cable
- HARTING PROFINET HYBRID CABLE CAT 5 FRNC * 4xAWG22/7 + 4x1.5 (SHIELDED) E333435 AWM 21282 * 09456000300020X internal lot number sequential length in metres
- Number of cores
- 8
- Core structure
- 4x AWG 22/7 | 4x 1.5 mm²
- Cable length
- 50 m
- Signal run time @ 20 °C
- 5.3 ns/m
- Limiting temperature
- -20 ... +70 °C
- Transmission characteristics
- Cat. 5 Class D up to 100 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s
- Coupling attenuation @ 20 °C / 10 MHz
- 10 mΩ/m
- Conductor resistance @ 20 °C
- ≤120 Ω/km
- Insulation resistance @ 20 °C
- 500 MΩ x km
- Impedance @ 100 MHz
- 100 Ω ±15 %
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes
- Material (cable)
- FRNC (LSZH)
- Colour (cable)
- Green
- PROFINET
- Yes
- Specifications
- EN 13602 | IEC 60332-1-2 Flame retardancy | UL style 21282 (80 °C / 150 V)
- European customs tariff number
- 85444290
- Packaging size
- 1
- Net weight
- 7000 g
- Country of origin
- Germany
- eCl@ss
- 27060501 Hybrid cable
- ETIM
- EC001579
- UNSPSC 24.0
- 26121639
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140062023
- SAP 1200592779
- Code 82973378
Product Documentation
