Circuit breaker TM 4X79-125A 25KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer HHA126H Circuit breaker, thermal and magnetic switch-off, adjustable 4x79 for 125A (Ir 0,63-0,8-1xIn) Ik 25kA.
Technical Specifications
- Manufacturer part number (MPN)
- HHA126H
- EAN / GTIN
- 3250613130923
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Breaking capacity
- 25 kA
- Rated permanent current Iu
- 125 A
- Number of poles
- 4
- Overload release current setting
- 80–125 A
- Rated voltage
- 220–440 V
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Wing knob
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Adjustment range undelayed short-circuit release
- 1500 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- No
- Device construction
- Built-in device fixed built-in technique
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613130923
- SAP 1000573386
- Code 8229274
Product Documentation
More from Hager Systemer
Hager Systemer
Changeover switch, In-O-II, 6M,3P, 80A
HIM308
Hager Systemer
Data double Aluminium for Schneider connector
GSETDM042LAN
Hager Systemer

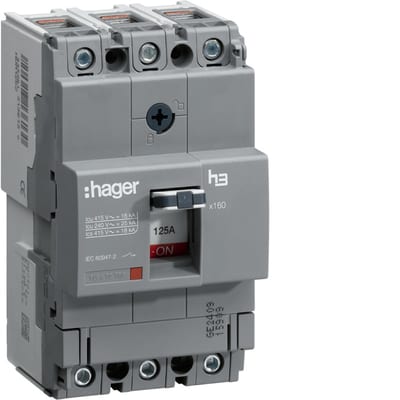

Circuit breaker TM 3X79-125A 25KA
HHA125H
Hager Systemer

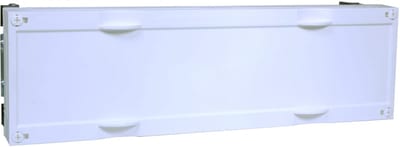

Sealed SYS.MOD.1-Pole SA.SK,1H,2F
UE12E0
Hager Systemer

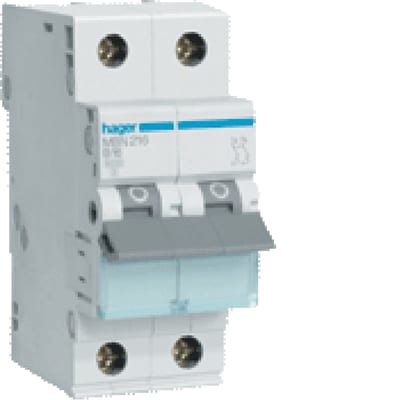

Miniature Circuit Breaker 2X10A B-Curve 10KA
NBN210
Hager Systemer

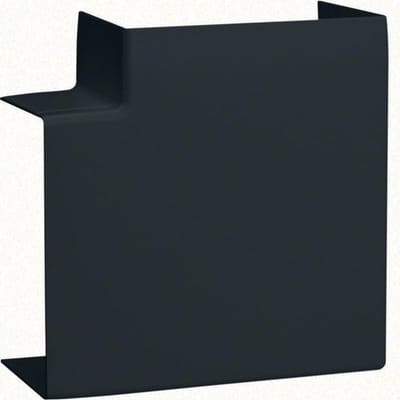

Flat angle for LF channel 60X110 BLACK
LFF6011059011
Hager Systemer

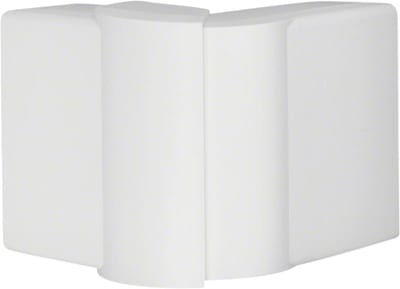

Hager Systemer External corner for LFF 40x90 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF4009039016
Hager Systemer

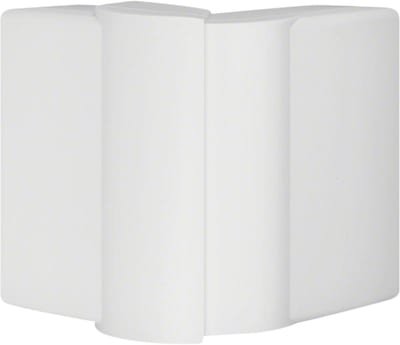

Hager Systemer External corner for LFF 40x110 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF4011039016
