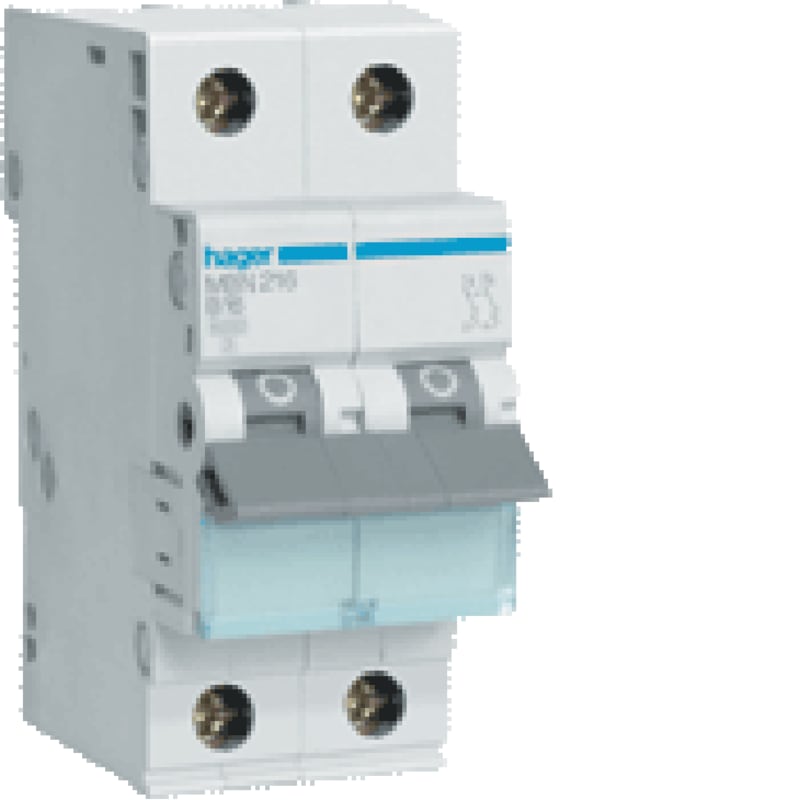

Miniature Circuit Breaker 2X10A B-Curve 10KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer NBN210 Miniature circuit breaker 10kA 2-pole 10A B.
Technical Specifications
- Manufacturer part number (MPN)
- NBN210
- EAN / GTIN
- 3250614613852
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Breaking capacity
- 10 kA
- Power loss
- 4.13 W
- Built-in depth
- 70 mm
- Release characteristic
- B
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated current
- 10 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 2
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- 70 °C
- Connectable conductor cross section multi-wired
- 25 mm²
- Connectable conductor cross section solid-core
- 25 mm²
- Explosion-proof
- No
- Flush-mounted installation
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250614613852
- SAP 1000070807
- Code 8728929
Product Documentation
More from Hager Systemer
Hager Systemer
Flat angle for LF channel 60X110 BLACK
LFF6011059011
Hager Systemer
Hager Systemer External corner for LFF 40x90 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF4009039016
Hager Systemer
Hager Systemer External corner for LFF 40x110 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF4011039016
Hager Systemer
Slotted WIRING DUCT,100X80MM GREY L=2
BA7100080
Hager Systemer
Data double Aluminium for Keystone connector
GSETDM102LAN
Hager Systemer
Circuit breaker TM 4X101-160A 25K
HHA161H
Hager Systemer
Miniature circuit breaker 3X125A, c-kar 15KA, 4,5-M
HMC399
Hager Systemer
Phase rail 1P 80A 12 MODKD180
KDN180A
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NBN210?
- NBN210 can be ordered from cballast.com as a Hager Systemer catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Hager Systemer product?
- The manufacturer part number is NBN210.
- What is the HS code for NBN210?
- The customs tariff (HS) code for NBN210 is 8536.90.
- Who manufactures NBN210?
- NBN210 is a Hager Systemer product in the Electrical Components range.
- Is a datasheet available for NBN210?
- Yes — the NBN210 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NBN210?
- The minimum order quantity is 1.
- Is NBN210 available?
- Yes — NBN210 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
