Hager Systemer External corner for LFF 40x110 mm trunking, moulded ABS, traffic white RAL 9016, adjustable 83...97 deg LFF4011039016
Pricing
Request a quote
We reply within 24 hours
Product Description

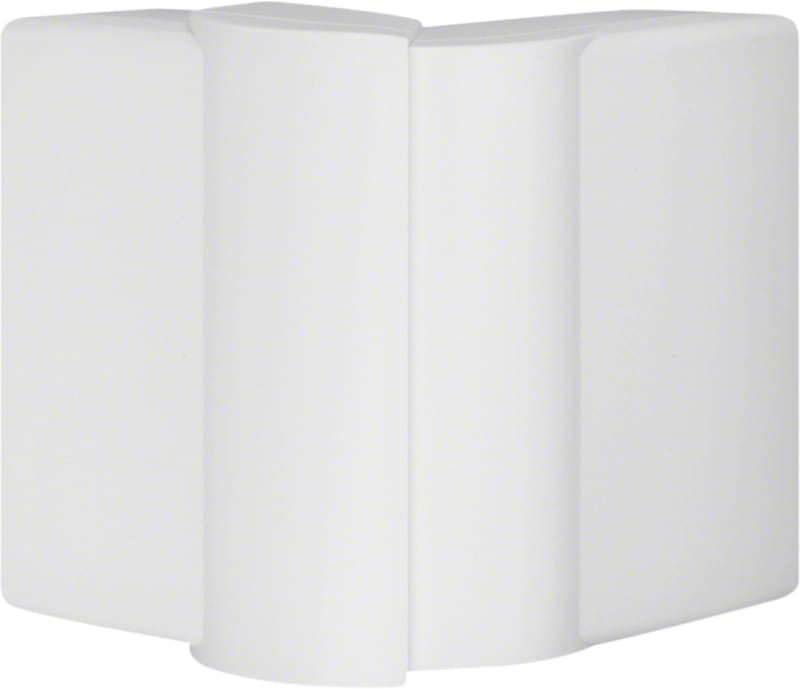

Moulded external corner hood for Hager tehalit LFF trunking in the 40x110 mm size (fits LFF 40x110). Part dimensions 40 mm x 110 mm, measurement a 68 mm. Covers a wall angle of 83 to 97 deg, with an overlapping edge that hides the cut ends of the channel. PC-ABS. Traffic white, RAL 9016, untreated. Impact resistance IK07. Operating temperature -5 to 60 °C. Halogen free. Click mounting. Not rated for circuit or functional integrity to DIN 4102-12. Supplied in packs of 5 pcs. Country of origin Germany. HS code 3925.90. Hager reference: SAP 1200495758, code 82617276.
Technical Specifications
- Manufacturer part number (MPN)
- LFF4011039016
- EAN / GTIN
- 4012740013222
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Height
- 40 mm
- Width
- 110 mm
- Measurement a
- 68 mm
- Type of accessory
- Moulded
- Angle range
- 83 - 97
- Material
- PC-ABS
- Treatment
- Untreated
- Colour
- Traffic white
- RAL code
- 9016
- Impact resistance IK
- IK07
- Suitable for functional integrity according to DIN4102-12
- No
- Operating temperature
- -5 - 60 °C
- With protective film
- No
- Overlapping
- Yes
- Mounting type
- Click mounting
- Related Series
- LFF 40x110
- Model
- Moulded hood
- Halogen free
- Yes
- RAL-number
- 9016
- Surface protection
- Untreated
- Type of fastening
- Snap on
- Impact strength
- IK07
- With protective foil
- No
- Angle
- 83–97 °
- Suitable for circuit integrity
- No
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4012740013222
- SAP 1200495758
- Code 82617276
Product Documentation
