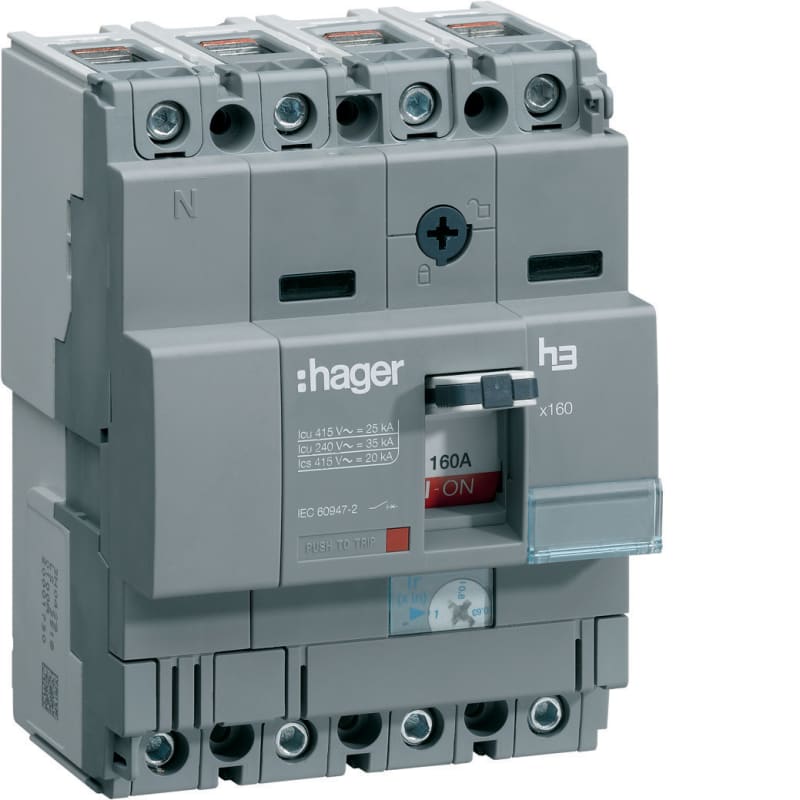

Circuit breaker TM 4X101-160A 25K
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer HHA161H Circuit breaker, thermal and magnetic switch-off, adjustable 4x101 for 160A (Ir 0,63-0,8-1xIn) Ik 25kA.
Technical Specifications
- Manufacturer part number (MPN)
- HHA161H
- EAN / GTIN
- 3250613130930
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated permanent current Iu
- 160 A
- Number of poles
- 4
- Overload release current setting
- 100–160 A
- Rated voltage
- 220–440 V
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Wing knob
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Adjustment range undelayed short-circuit release
- 1600 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- No
- Device construction
- Built-in device fixed built-in technique
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613130930
- SAP 1000573387
- Code 8686495
Product Documentation
More from Hager Systemer
Hager Systemer
Miniature circuit breaker 3X125A, c-kar 15KA, 4,5-M
HMC399
Hager Systemer
Phase rail 1P 80A 12 MODKD180
KDN180A
Hager Systemer
terminal cover set straight, eff.br 4-Pole X160
HYA022H
Hager Systemer
Changeover switch IN-0-II, 2X25A, 230VAC
SFB225
Hager Systemer
Slisset CABLE TRUNKING,19X19MM 1 Pcs=2 M
BA61501507030B
Hager Systemer
Slisset Cable Trunking 98X74MM 1 Pcs=2 M
DNG10007507030B
Hager Systemer
Miniature Circuit Breaker 2X10A C-Curve 10KA
NCN210
Hager Systemer
Hager Systemer Slotted panel trunking made of PVC BA7 25X25MM grey BA725025
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HHA161H?
- HHA161H can be ordered from cballast.com as a Hager Systemer catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Hager Systemer product?
- The manufacturer part number is HHA161H.
- What is the HS code for HHA161H?
- The customs tariff (HS) code for HHA161H is 8536.90.
- Who manufactures HHA161H?
- HHA161H is a Hager Systemer product in the Electrical Components range.
- Is a datasheet available for HHA161H?
- Yes — the HHA161H datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HHA161H?
- The minimum order quantity is 1.
- Is HHA161H available?
- Yes — HHA161H is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
