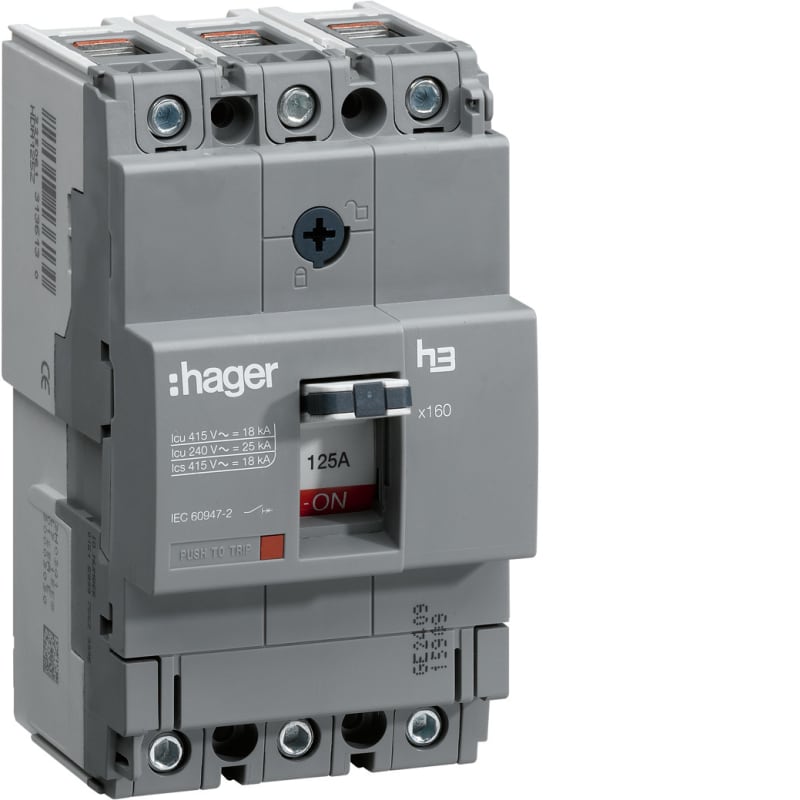

Circuit breaker TM 3X79-125A 25KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer HHA125H Circuit breaker, thermal and magnetic switch-off, adjustable 3x79 for 125A (Ir 0,63-0,8-1xIn) Ik 25kA.
Technical Specifications
- Manufacturer part number (MPN)
- HHA125H
- EAN / GTIN
- 3250613130503
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Breaking capacity
- 25 kA
- Rated permanent current Iu
- 125 A
- Number of poles
- 3
- Overload release current setting
- 80–125 A
- Rated voltage
- 220–415 V
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Wing knob
- With switched-off indicator
- Yes
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Adjustment range undelayed short-circuit release
- 1500 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device fixed built-in technique
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250613130503
- SAP 1000573379
- Code 8229252
Product Documentation
