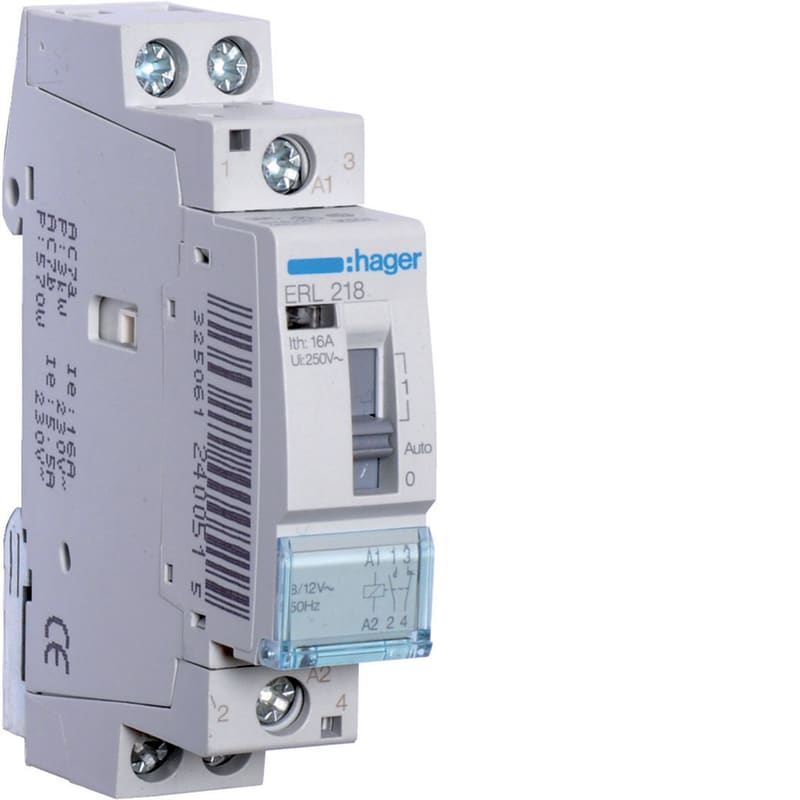

Hager Systemer Relay 16A, 1NO+1NC, 8/12V~50Hz ERL218
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ERL218 Contactor with switch in front 16A, 8/12V 1NO+1NC.
Technical Specifications
- Manufacturer part number (MPN)
- ERL218
- EAN / GTIN
- 3250612400515
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 108 pcs
- Type of contacts
- 1NC+1NO
- Number of contacts
- 2
- Cross-section flexible conductor
- 1 - 6 mm²
- Cross-section rigid conductor
- 1 - 10 mm²
- Rated current IN
- 16 A
- Number of modules
- 1
- Frequency
- 50 - 50 Hz
- Rated impulse withstand voltage Uimp
- 4000 V
- Rated insulation voltage Ui
- 250 V
- Rated operational voltage Ue
- 230 - 230 V
- Command voltage AC
- 12 - 12 V
- Command voltage DC
- 0 - 0 V
- Operating temperature
- -10 - 50 °C
- Storage/transport temperature
- -40 - 80 °C
- Category of use
- AC-7a/AC-7b
- Number of mechanical operations
- 100000
- Electric endurance in number of cycles
- 30000
- Power dissipation at IN
- 1.60 W
- Inrush power absorbed
- 7.40 VA
- Height
- 83 mm
- Width
- 17.85 mm
- Depth
- 60 mm
- Number of NO contacts
- 1
- With switch for manual switch
- Yes
- Nominal tightening torque
- 1.20 - 1.20 Nm
- Number of poles
- 2
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612400515
- SAP 1000221647
- Code 8908630
Product Documentation
