Surge protection device typ 2, 4-P, TNS 400V (SPB413)
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer SPB413 Surge protection device type 2, 4-p 400V TNS, Uc 275V, Up = 1,35kV, In 20kA, Iimp 40kA.
Technical Specifications
- Manufacturer part number (MPN)
- SPB413
- EAN / GTIN
- 3250615515131
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Voltage
- 400 V
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TT
- Yes
- System configuration other
- No
- Number of conductors (without earthing)
- 4
- Nominal discharge surge current (8/20)
- 15 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Voltage protection level
- 1.35 kV
- Voltage protection level L-N
- 1.35 kV
- Voltage protection level N-PE
- 1.35 kV
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Short-circuit breaking capacity (Isccr)
- 10 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 4 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8535.90
Cross References
- EAN 3250615515131
- SAP 1200586099
- Code 82957126
Product Documentation
More from Hager Systemer
Hager Systemer
Slotted WIRING DUCT,60X80MM GREY L=2
BA760080
Hager Systemer
Hager Systemer Impulse Relay 12 V 16 A 1NO+1NC
EPN519
Hager Systemer
Contactor, 1-M, brumfri, 2X25A, 12VDC
ESL225SDC
Hager Systemer
Slotted Channel, 73X36 Halogen-Free Blue
HNG75037BL
Hager Systemer
TRUNKING Base 68X130X2000MM NA
BRA651301ELN
Hager Systemer
Hager Systemer Contactor 40A, 3NO, 230V~50Hz ESC340
Hager Systemer

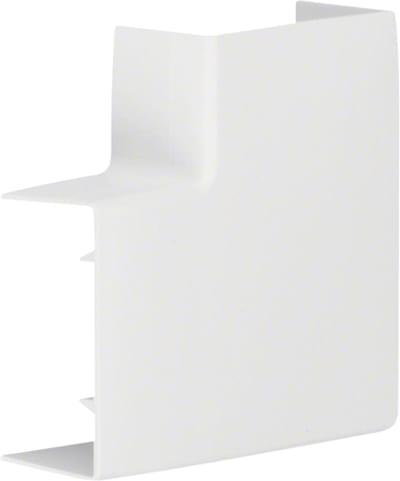

Flat angle / L angle for LF 30X60 WHITE
LFF3006059016
Hager Systemer

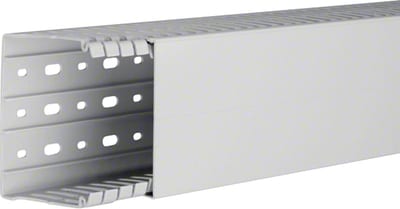

Slotted Trunking HALOGEN-FREE 60X100 L.GREY L=2M
