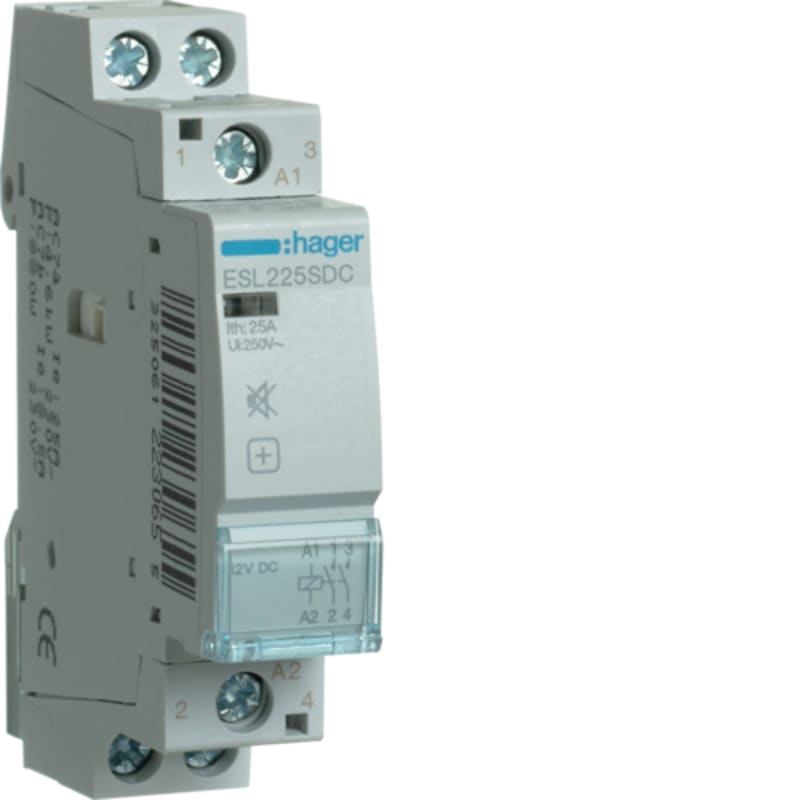

Contactor, 1-M, brumfri, 2X25A, 12VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ESL225SDC Modular contactor, 1-mod, brumfri, 2x25A, 12VDC.
Technical Specifications
- Manufacturer part number (MPN)
- ESL225SDC
- EAN / GTIN
- 3250612230655
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Voltage
- 12 V DC
- Rated operating voltage
- 230 V
- Rated operation current
- 25 A
- Utility category
- 7
- Rated excitation voltage
- 12 V
- Voltage type (operating voltage)
- AC
- Number of contacts as normally open contact
- 2
- Max. incandescent lamp load
- 1900 W
- Max. load fluorescent lamp
- 950 VA
- Slider for hand switch
- No
- Built-in depth
- 60 mm
- Additional equipment possible
- Yes
- Degree of protection (IP)
- IP2X
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612230655
- SAP 1000679312
- Code 8282638
Product Documentation
More from Hager Systemer
Hager Systemer
Slotted Channel, 73X36 Halogen-Free Blue
HNG75037BL
Hager Systemer
TRUNKING Base 68X130X2000MM NA
BRA651301ELN
Hager Systemer
Hager Systemer Contactor 40A, 3NO, 230V~50Hz ESC340
Hager Systemer
Flat angle / L angle for LF 30X60 WHITE
LFF3006059016
Hager Systemer
Slotted Trunking HALOGEN-FREE 60X100 L.GREY L=2M
HA760100
Hager Systemer

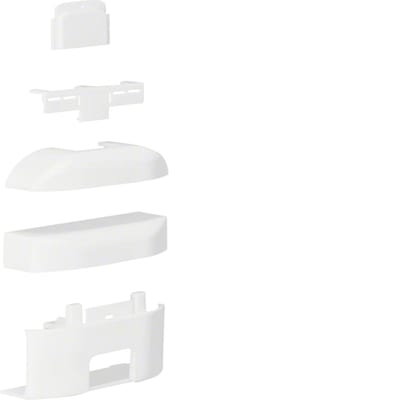

T-Piece ATA 12X20MM ABS White
ATA122089016
Hager Systemer

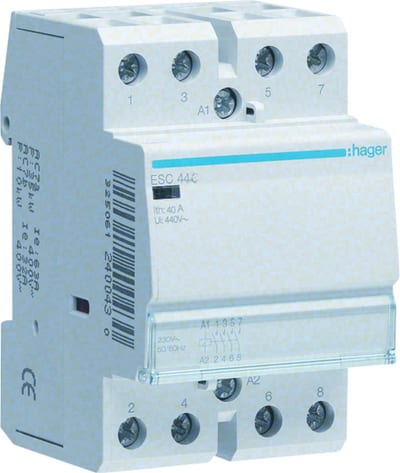

Hager Systemer Contactor 40A, 4NO, 230V~50Hz ESC440
Hager Systemer

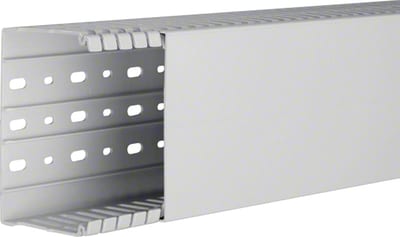

Slotted Trunking HALOGEN-FREE 100X100 L.GR L=2M
