Hager Systemer

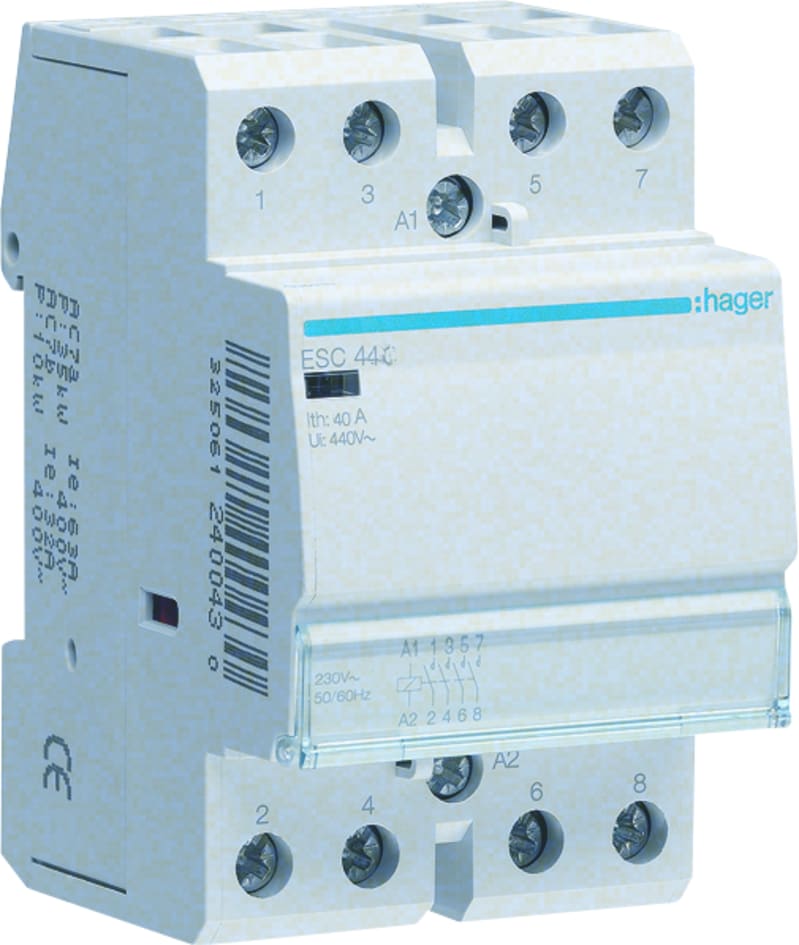

Hager Systemer Contactor 40A, 4NO, 230V~50Hz ESC440
Part numberESC440EAN / GTIN3250612401284HS code8536.90
Electrical Components
Contactors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer ESC440 Contactor 40A, 230V 4NO.
Technical Specifications
- Manufacturer part number (MPN)
- ESC440
- EAN / GTIN
- 3250612401284
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Type of contacts
- 4NO
- Number of contacts
- 4
- Cross-section flexible conductor
- 1.5 - 16 mm²
- Cross-section rigid conductor
- 1.5 - 25 mm²
- Rated current IN
- 40 A
- Acceptable current rating AC3
- 25 A
- Number of modules
- 3
- Frequency
- 50 - 50 Hz
- Rated impulse withstand voltage Uimp
- 4000 V
- Rated insulation voltage Ui
- 440 V
- Rated operational voltage Ue
- 400 - 400 V
- Command voltage AC
- 230 - 230 V
- Command voltage DC
- 0 - 0 V
- Operating temperature
- -10 - 50 °C
- Storage/transport temperature
- -40 - 80 °C
- Category of use
- AC-7a/AC-7b
- Number of mechanical operations
- 100000
- Electric endurance in number of cycles
- 30000
- Power dissipation at IN
- 14.30 W
- Inrush power absorbed
- 62.50 VA
- Height
- 85 mm
- Width
- 54 mm
- Depth
- 60 mm
- Number of NC contacts
- 0
- With switch for manual switch
- No
- Hum-free
- No
- Number of poles
- 4
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3250612401284
- SAP 1000221623
- Code 8908605
Product Documentation
Document preview: Hager Systemer Contactor 40A, 4NO, 230V~50Hz ESC440 — Specification sheet
