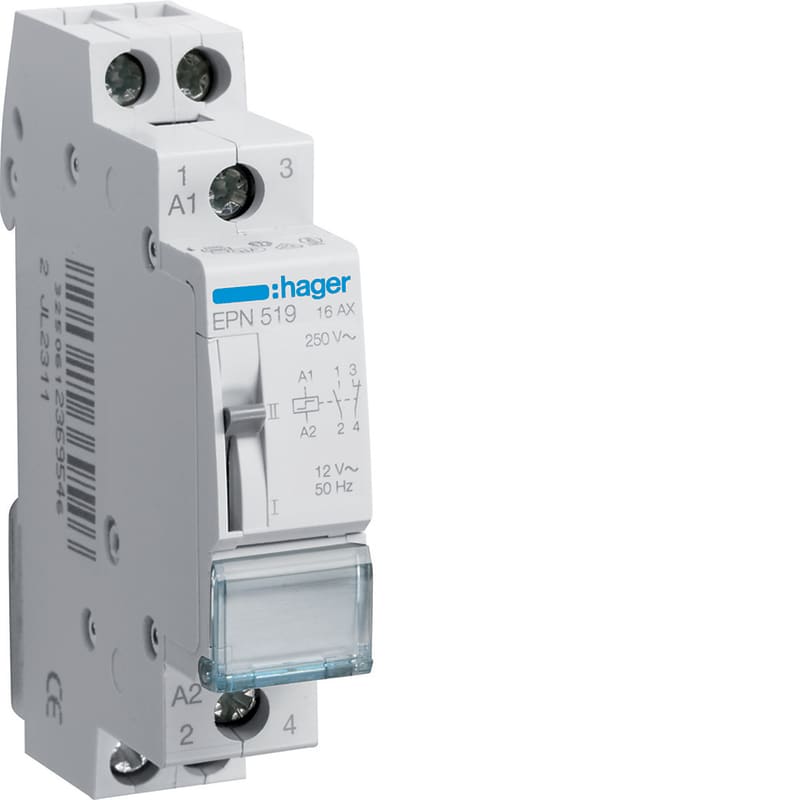

Hager Systemer Impulse Relay 12 V 16 A 1NO+1NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Hager Systemer EPN519 is a mechanical impulse relay rated 12 V, 16 A with one normally-open and one normally-closed contact. The 17.5-module DIN-rail device switches incandescent loads up to 1800 W and fluorescent loads up to 800 VA for staircase and corridor lighting. Suitable for manual operation via the front actuator.
Technical Specifications
- Manufacturer part number (MPN)
- EPN519
- EAN / GTIN
- 3250612369546
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 12 V
- Rated current
- 16 A
- Mounting method
- DIN rail
- Function
- Mechanical switch
- Built-in depth
- 63 mm
- Width in number of modular spacings
- 17.5
- Control voltage 1
- 12 V
- Type of control voltage 1
- AC
- Type of control voltage 2
- DC
- Frequency control voltage 1
- 50–60 Hz
- Frequency control voltage 2
- 50–60 Hz
- Suitable for manual operation
- Yes
- Voltage type (supply voltage)
- AC
- Supply voltage
- 250 V
- Max. switching current (cos phi = 0.6)
- 16 A
- Max. incandescent lamp load
- 1800 W
- Max. load fluorescent lamp
- 800 VA
- Rated switch current
- 16 A
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3250612369546
- SAP 1000004793
- Code 831508
Product Documentation
