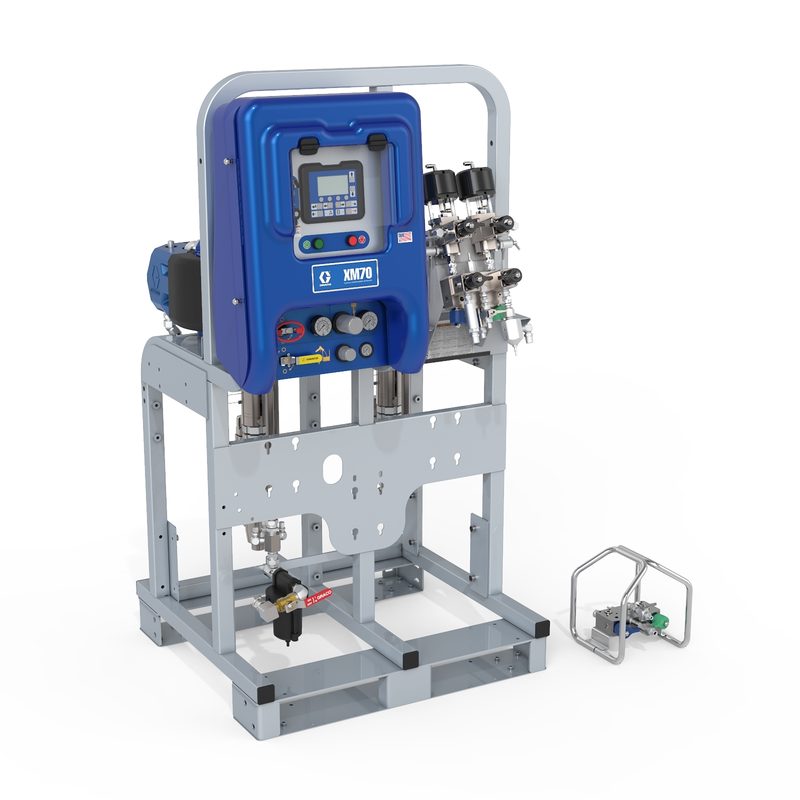

Graco XM70 Skid System, Hazardous Location, Bare
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco XM7N00 XM70 Skid System, Hazardous Location, Bare, part number XM7N00. Plural Component Sprayer (XM70). Mix ratio 1:1-10:1. Maximum working pressure 6300 psi (435 bar); maximum fluid flow 3 gpm (11.4 lpm). Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers. All values read from the Graco product page (XM7N00 on graco.com).
Technical Specifications
- Brand
- Graco Model: XM70 Part number: XM7N00 Maximum working pressure: 6300 psi (435 bar) Maximum flow rate: 3 gpm (11.4 lpm) Type: Plural Component Sprayer minimum mix ratio: 1:1 Maximum mix ratio: 10:1 Mix accuracy: 5% Tank capacity: No Tank Power source: Alternator Air inlet size: 3/4 in. Female NPT Sound pressure level: 84.8 at 70psi (0.48 MPa, 4.8 bar) dB(A) Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers
Standards & Compliance
- Pressure Rating
- 6300 psi (435 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
XM is Graco's plural-component (two-component) proportioning spray line for protective coatings and materials. The 1:1-10:1 mix ratio range and the wetted-material set determine which coatings this configuration handles. This configuration includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers. Confirm the electrical supply (phase/voltage), hopper/feed configuration and gun/tip suit the coating before ordering.
Product Documentation
More from Graco
Graco
Graco XM70 Skid System, Non-Hazardous, with Water Jacketed Hose and 25 Gallon Heated Hoppers, 480V
XM7H2W
Graco
Graco XM70 Skid System, Hazardous Location Components, with Electric Heated Hose, 480V
XM7K0E
Graco
Graco XM70 Skid System, Non-Hazardous, with Electric Heated Hose and 25 Gallon Heated Hoppers, 480V
XM7H2E
Graco
Graco XM70 Skid System, Hazardous Location Components, with Electric Heated Hose, 240V
XM7J0E
Graco
Graco XM70 Skid System, Hazardous Location Components, with Water Jacketed Hose, 240V
XM7J0W
Graco
Graco XM70 Skid System, Hazardous Location Components, with Electric Heated Hose and 25 Gallon Heated Hoppers, 240V
XM7J2E
Graco
Graco XM70 Skid System, Hazardous Location Components, with Water Jacketed Hose and 25 Gallon Heated Hoppers, 240V
XM7J2W
Graco
Graco XM70 Skid System, Hazardous Location, with Viscon HP Heaters, 240V
XM7E00
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
