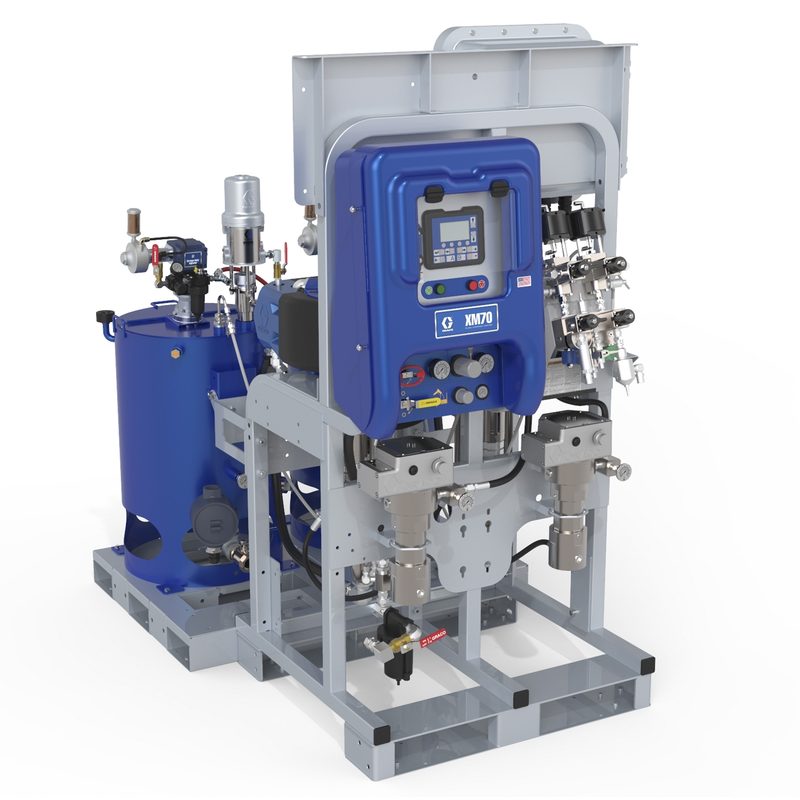

Graco XM70 Skid System, Hazardous Location Components, with Electric Heated Hose, 240V
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco XM7J0E XM70 Skid System, Hazardous Location Components, With Electric Heated Hose, 240V, part number XM7J0E. Plural Component Sprayer (XM70). Mix ratio 1:1-10:1. Maximum working pressure 6300 psi (435 bar); maximum fluid flow 3 gpm (11.4 lpm). Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers, Viscon HF Heaters, Electric Heated Hose Controller. All values read from the Graco product page (XM7J0E on graco.com).
Technical Specifications
- Brand
- Graco Model: XM70 Part number: XM7J0E Maximum working pressure: 6300 psi (435 bar) Maximum flow rate: 3 gpm (11.4 lpm) Type: Plural Component Sprayer minimum mix ratio: 1:1 Maximum mix ratio: 10:1 Mix accuracy: 5% Tank capacity: No Tank Power source: Alternator Air inlet size: 3/4 in. Female NPT Sound pressure level: 84.8 at 70psi (0.48 MPa, 4.8 bar) dB(A) Includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers, Viscon HF Heaters, Electric Heated Hose Controller Voltage: 240 V
Standards & Compliance
- Pressure Rating
- 6300 psi (435 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
XM is Graco's plural-component (two-component) proportioning spray line for protective coatings and materials. The 1:1-10:1 mix ratio range and the wetted-material set determine which coatings this configuration handles. This configuration includes: Merkur Solvent Flush Pump, Remote Manifold Carriage, XTR+ Gun, 35 ft Integrated Hose and Static Mixers, Viscon HF Heaters, Electric Heated Hose Controller. Confirm the electrical supply (phase/voltage), hopper/feed configuration and gun/tip suit the coating before ordering.
Product Documentation
More from Graco
Graco
Graco XM70 Skid System, Hazardous Location Components, with Water Jacketed Hose, 240V
XM7J0W
Graco
Graco XM70 Skid System, Hazardous Location Components, with Electric Heated Hose and 25 Gallon Heated Hoppers, 240V
XM7J2E
Graco
Graco XM70 Skid System, Hazardous Location Components, with Water Jacketed Hose and 25 Gallon Heated Hoppers, 240V
XM7J2W
Graco
Graco XM70 Skid System, Hazardous Location, with Viscon HP Heaters, 240V
XM7E00
Graco
Graco XM70 Sprayer, Pump Filter, Remote Manifold, Wall Power, 20gal (75L) Hoppers, Heat/Inlet/Mount/Agitator Kits
XM7A24
Graco
Graco XM70 HL Sprayer, Pump Filter, Remote Manifold, IS/Alternator, drum Kit with Dual 5:1 and Agitator
XM7D31
Graco
Graco XM70 HL Sprayer, Pump Filter, Remote Manifold, IS/Alternator, 20gal (75L)/7gal (26.5L) Hoppers, Inlet/Mount/Agitator/Circulation Kits
XM7D17
Graco
Graco XM70 HL Sprayer, Pump Filter, Remote Manifold, IS/Alternator, 20gal (75L)/7gal (26.5L) Hoppers, Mount/Agitator/5:1/Circulation Kits
XM7D19
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XM7J0E?
- XM7J0E can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is XM7J0E.
- What is the HS code for XM7J0E?
- The customs tariff (HS) code for XM7J0E is 8424.20.
- Who manufactures XM7J0E?
- XM7J0E is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for XM7J0E?
- Yes — the XM7J0E datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XM7J0E?
- The minimum order quantity is 1.
- Is XM7J0E available?
- Yes — XM7J0E is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
