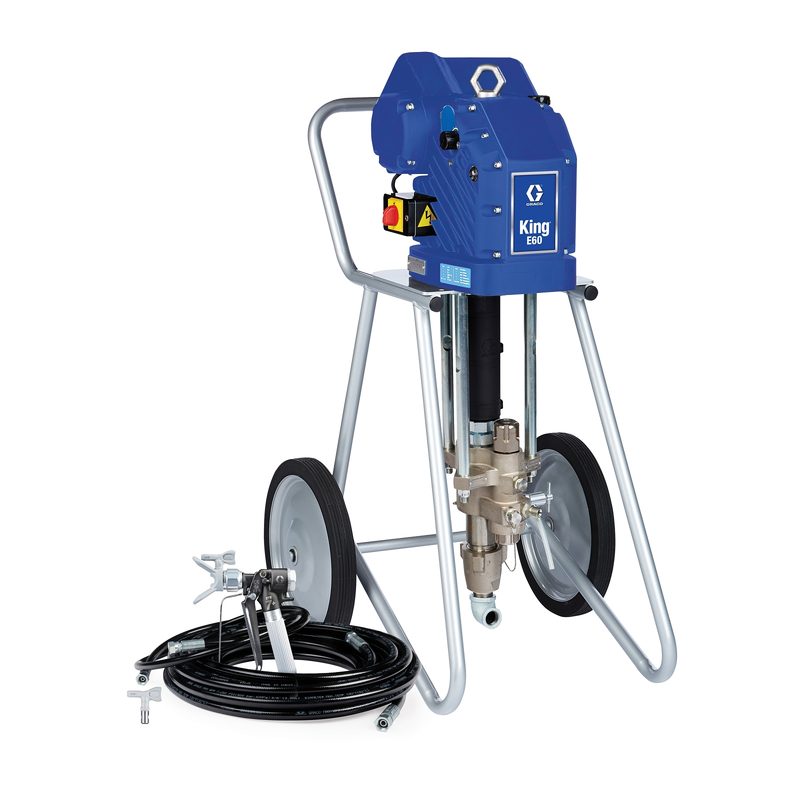

Graco King E60 Lightweight Cart Integrated Filter Gun Hose Whip Tip
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 273754 King E60 Lightweight Cart Integrated Filter Gun Hose Whip Tip, part number 273754. King E60 airless sprayer at 60:1 pressure ratio. Maximum working pressure 6000 psi (415 bar). Maximum fluid flow 0.9 gpm (3.4 lpm). For protective coating. Wetted parts: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum. Includes: Gun, Hose, Whip, Tip. All values read from the Graco product page (273754 on graco.com).
Technical Specifications
- Brand
- Graco Model: King E60 Part number: 273754 Maximum working pressure: 6000 psi (415 bar) Maximum flow rate: 0.9 gpm (3.4 lpm) Product type: Single Leg Type: Airless Sprayer Series: E60 Pump ratio: 60:1 (6000 psi) Motor type: Electric Pump type: Electric Piston Pump Pump rod type: Chromex Pump sleeve material: Hard Chrome, Stainless Steel Lower type: 145cc Xtreme Duty Lower Lower configuration: Integrated Filter Frame configuration: Lightweight Cart Compatible material: Protective Coating material application: Protective Coatings Gun model: XTR+ Number of guns: 1-2 Gun included: 1 Maximum tip size: 0.025 Power source: Electric Pressure control type: Electric Control Knob Phase: 1 Amperage: 120V/30A, 240V/20A Frequency: 50/60 Maximum continuous cycle rate: 44 Inlet paint strainer: 8 Mesh, 16 Mesh Outlet paint filter: 60 Mesh Fluid inlet size: 1 in. NPT Fluid outlet size: 1/2, 3/8 in. NPT Maximum hose length: 210 ft (64 m) Maximum operating temperature: 120 °F (50 °C) minimum operating temperature: 23 °F (-5 °C) minimum generator power: 5 kW Maximum sound pressure level: 77 dB(A) Weight: 295 lb (134 kg) Approved for hazardous locations: No Wetted material: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum Includes: Gun, Hose, Whip, Tip
Standards & Compliance
- Material
- Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
- Pressure Rating
- 6000 psi (415 bar) max working
- Temperature Range
- 23 to 120 °F
- HS Code
- 8424.20
Compatibility & Fitment
King is Graco's high-pressure airless pump/sprayer line for protective coatings and heavy, high-viscosity materials. The 60:1 pressure ratio sets the achievable fluid pressure for the air (or electric) supply; lower type 145cc Xtreme Duty Lower; frame Lightweight Cart; this is an electric (motor-driven) unit — confirm the supply voltage/phase/amperage and minimum generator power. This package includes: Gun, Hose, Whip, Tip. Confirm the gun/tip and hose suit the coating and viscosity before ordering.
Product Documentation
More from Graco
Graco
Graco King E60 Lightweight Cart Integrated Filter BARE
273755
Graco
Graco King E60 Hazardous Location Lightweight Cart Integrated Filter Gun Hose Whip Tip
273248
Graco
Graco King E50 Hazardous Location Heavy Duty Cart Integrated Filter Gun Hose Whip Tip
273252
Graco
Graco King E70 Lightweight Cart Integrated Filter BARE
273749
Graco
Graco King E70 Wall Mount Integrated Filter Gun Hose Whip Tip
273750
Graco
Graco King E50 Hazardous Location Heavy Duty Cart Integrated Filter BARE
273253
Graco
Graco King E50 Hazardous Location Lightweight Cart Integrated Filter Gun Hose Whip Tip
273254
Graco
Graco King E50 Hazardous Location Lightweight Cart Integrated Filter BARE
273255
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 273754?
- 273754 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 273754.
- What is the HS code for 273754?
- The customs tariff (HS) code for 273754 is 8424.20.
- Who manufactures 273754?
- 273754 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 273754?
- Yes — the 273754 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 273754?
- The minimum order quantity is 1.
- Is 273754 available?
- Yes — 273754 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
