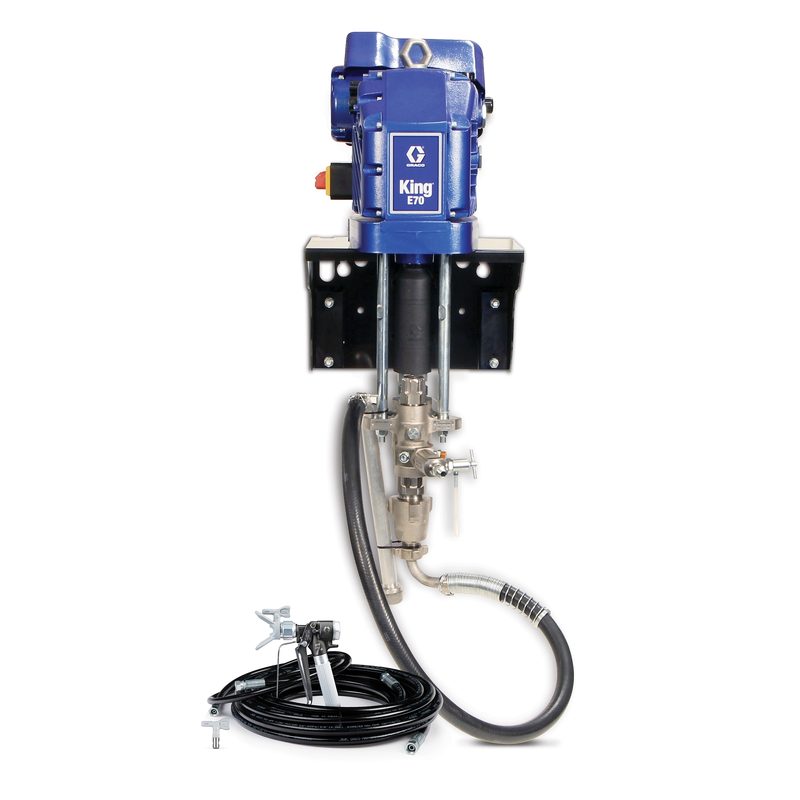

Graco 273750 King E70 Wall Mount Integrated Filter Gun Hose Whip Tip
Graco · Tools & Workshop Consumables · Spray Packages
Graco 273750 King E70 Wall Mount Integrated Filter Gun Hose Whip Tip, part number 273750. King E70 airless sprayer at 70:1 pressure ratio. Maximum working pressure 7250 psi (500 bar). Maximum fluid flow 0.7 gpm (2.6 lpm). For protective coating. Wetted parts: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum. Includes: Gun, Hose, Whip, Tip. All values read from the Graco product page (273750 on graco.com).
Specifications
- Part number
- 273750
- HS code
- 8424.20
- Material
- Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
- Pressure rating
- 7250 psi (500 bar) max working
- Temperature range
- 23 to 120 °F
Compatibility
King is Graco's high-pressure airless pump/sprayer line for protective coatings and heavy, high-viscosity materials. The 70:1 pressure ratio sets the achievable fluid pressure for the air (or electric) supply; lower type 115cc Xtreme Duty Lower; frame Wall Mount; this is an electric (motor-driven) unit — confirm the supply voltage/phase/amperage and minimum generator power. This package includes: Gun, Hose, Whip, Tip. Confirm the gun/tip and hose suit the coating and viscosity before ordering.
