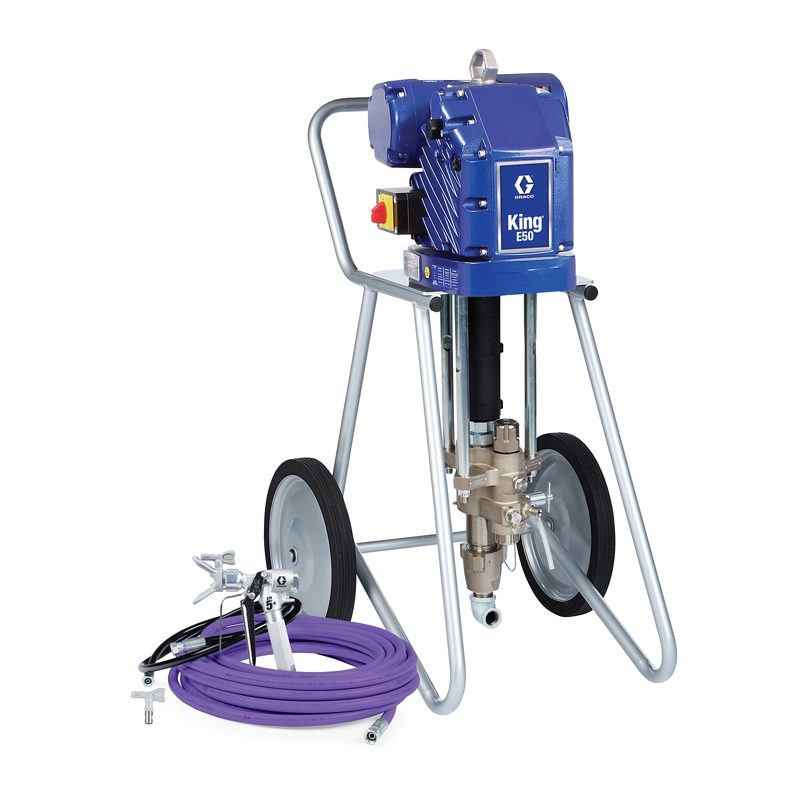

Graco King E50 Hazardous Location Lightweight Cart Integrated Filter Gun Hose Whip Tip
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 273254 King E50 Hazardous Location Lightweight Cart Integrated Filter Gun Hose Whip Tip, part number 273254. King E50 airless sprayer at 50:1 pressure ratio. Maximum working pressure 5000 psi (345 bar). Maximum fluid flow 0.6 gpm (2.3 lpm). For protective coating. Wetted parts: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum. Includes: Gun, Hose, Whip, Tip. All values read from the Graco product page (273254 on graco.com).
Technical Specifications
- Brand
- Graco Model: King E50 Part number: 273254 Maximum working pressure: 5000 psi (345 bar) Maximum flow rate: 0.6 gpm (2.3 lpm) Product type: Single Leg Type: Airless Sprayer Series: E50 Pump ratio: 50:1 (5000 psi) Motor type: Electric, Hazardous Locations Pump type: Pneumatic Piston Pump Pump rod type: Chromex Pump sleeve material: Hard Chrome, Stainless Steel Lower type: 145cc Xtreme Duty Lower Lower configuration: Integrated Filter Frame configuration: Lightweight Cart Compatible material: Protective Coating material application: Protective Coatings Gun model: XTR+ Number of guns: 1-2 Gun included: 1 Maximum tip size: 0.023 Power source: Electric Pressure control type: Electric Control Knob Phase: 1 Amperage: 120V/25A, 240V/15A Frequency: 50/60 Maximum continuous cycle rate: 44 Inlet paint strainer: 8 Mesh, 16 Mesh Outlet paint filter: 60 Mesh Fluid inlet size: 1 in. NPT Fluid outlet size: 1/2, 3/8 in. NPT Maximum hose length: 210 ft (64 m) Maximum operating temperature: 120 °F (50 °C) minimum operating temperature: 23 °F (-5 °C) minimum generator power: 5 kW Maximum sound pressure level: 77 dB(A) Weight: 295 lb (134 kg) Approved for hazardous locations: Yes Wetted material: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum Includes: Gun, Hose, Whip, Tip
Standards & Compliance
- Material
- Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
- Pressure Rating
- 5000 psi (345 bar) max working
- Temperature Range
- 23 to 120 °F
- HS Code
- 8424.20
Compatibility & Fitment
King is Graco's high-pressure airless pump/sprayer line for protective coatings and heavy, high-viscosity materials. The 50:1 pressure ratio sets the achievable fluid pressure for the air (or electric) supply; lower type 145cc Xtreme Duty Lower; frame Lightweight Cart; this is an electric (motor-driven) unit — confirm the supply voltage/phase/amperage and minimum generator power. This package includes: Gun, Hose, Whip, Tip. Confirm the gun/tip and hose suit the coating and viscosity before ordering.
