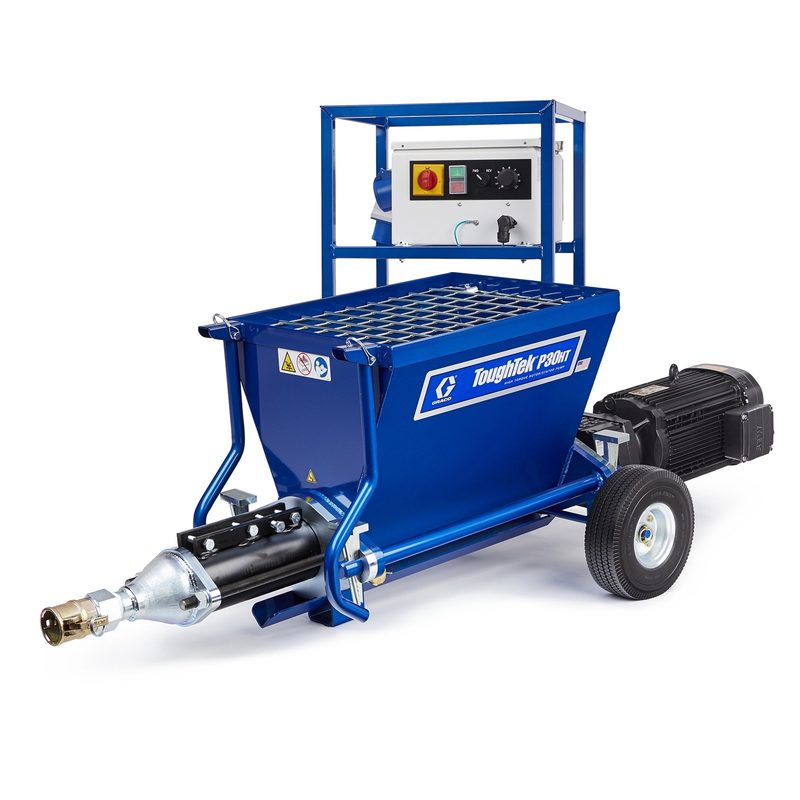

Graco ToughTek P30HT Rotor Stator Pump Package, 230V, 30A, 1PH

Graco 25M132 ToughTek P30HT Rotor Stator Pump Package, 230V, 30A, 1Ph, part number 25M132. Graco ToughTek P30HT rotor-stator / progressive-cavity pump for pumping and spraying cementitious and high-viscosity materials (mortar, plaster, render, stucco, self-levelling underlayment, fireproofing). 300 psi (21 bar) maximum working pressure. 9.8 GPM maximum flow. Compatible material: Water-Based material. All values read from the Graco product page (25M132 on graco.com).

Brand

Graco Line: ToughTek Model: P30HT Part number: 25M132 Compatible material: Water-Based material Fluid Inlet Size (in): 3.8 Fluid Outlet Size (in): 1-1/3 Fluid Outlet Thread Gender: Male Fluid Outlet Thread Type: NPT Includes: Applicator, Hose, Adapter Maximum Flow Rate (GPM): 9.8 Maximum Operating Temperature (°F): 120 Maximum Working Pressure (psi): 300 minimum Operating Temperature (°F): 32 Phase: 1 Type: Electric Rotor Stator Pump Voltage (V ac): 230 Weight (lb): 320 Wetted material: Tool Steel, Painted Steel, Plated Steel, PORON Fluid Inlet Size (mm): 96.5 Fluid Outlet Size (mm): 33.87 Maximum Flow Rate (L/min): 37.1 Maximum Operating Temperature (°C): 49 Maximum Working Pressure (bar): 21 minimum Operating Temperature (°C): 0 Weight (kg): 145

Pressure Rating

300 psi (21 bar) max working

Temperature Range

up to 120 °F (49 °C)

HS Code

8413.60
