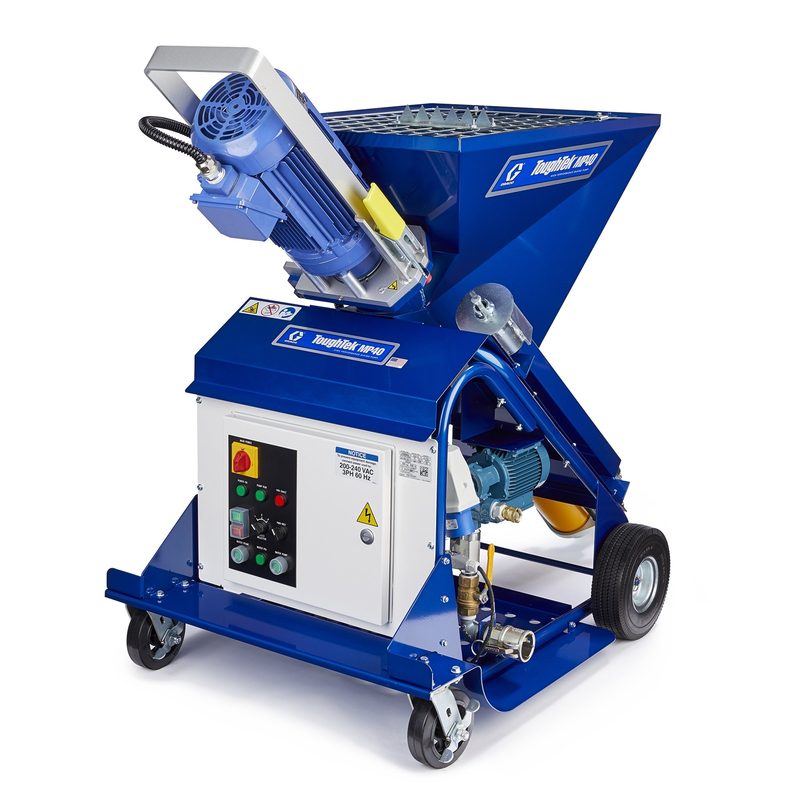

Graco ToughTek MP40 Mixing Pump

Graco 25M062 ToughTek MP40 Mixing Pump, part number 25M062. Graco ToughTek MP40 rotor-stator / progressive-cavity pump for pumping and spraying cementitious and high-viscosity materials (mortar, plaster, render, stucco, self-levelling underlayment, fireproofing). 300 psi (20.7 bar) maximum working pressure. 13 GPM maximum flow. Compatible material: Self-Leveling Underlayment. All values read from the Graco product page (25M062 on graco.com).

Brand

Graco Line: ToughTek Model: MP40 Part number: 25M062 Compatible material: Self-Leveling Underlayment Fluid Inlet Size (in): 3.8 Fluid Outlet Size (in): 1.5 Fluid Outlet Thread Gender: Male Fluid Outlet Thread Type: NPT material Output (bags/hr): 200 Maximum Flow Rate (GPM): 13 Maximum Working Pressure (MPa): 2.1 Maximum Working Pressure (psi): 300 Motor Type: Electric Overall Height (ft): 4.42 Overall Height (in): 53 Overall Length (ft): 5.33 Overall Length (in): 64 Overall Width (ft): 2.69 Overall Width (in): 32.25 Power Rating (HP): 7.5 Power Rating (W): 5593 Power Rating (kW): 5.59 Type: Electric Progressive Cavity drum Pump Weight (lb): 450 Wetted Parts: Tool Steel, Painted Steel, Plated Steel, PORON Fluid Inlet Size (cm): 9.7 Fluid Inlet Size (mm): 96.5200 Fluid Outlet Size (cm): 3.81 Fluid Outlet Size (mm): 38.1 Maximum Working Pressure (bar): 20.7 Maximum Working Pressure (kPa): 2070 Overall Height (cm): 134.62 Overall Height (m): 1.35 Overall Height (mm): 1346.2 Overall Length (cm): 163 Overall Length (m): 1.63 Overall Length (mm): 1626 Overall Width (cm): 81.92 Overall Width (m): 0.82 Overall Width (mm): 819.15 Weight (kg): 204.1

Pressure Rating

300 psi (20.7 bar) max working

HS Code

8413.60
