Product Description

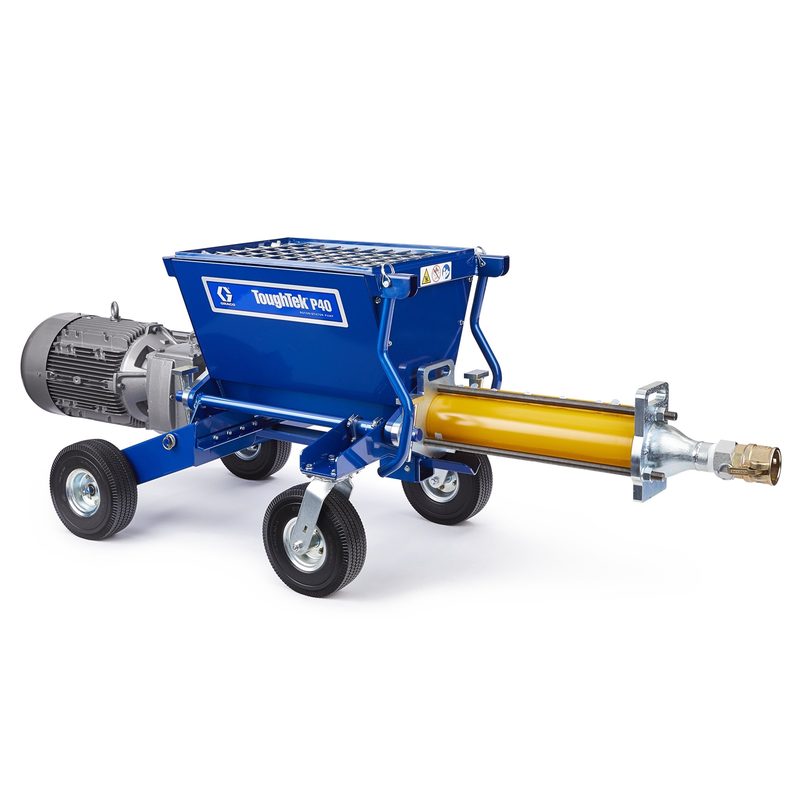

Graco 25M050 ToughTek P40 Bare Rotor Stator System, 230V, 25A, 3Ph, part number 25M050. Graco ToughTek P40 rotor-stator / progressive-cavity pump for pumping and spraying cementitious and high-viscosity materials (mortar, plaster, render, stucco, self-levelling underlayment, fireproofing). 600 psi (41.4 bar) maximum working pressure. 18.7 GPM maximum flow. Compatible material: Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing. All values read from the Graco product page (25M050 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- ToughTek
- Model
- P40
- Series
- P40
- Part number
- 25M050
- Compatible Material
- Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
- Fluid Inlet Size (in)
- 4.22
- Fluid Outlet Size (in)
- 2.0
- Fluid Outlet Thread Gender
- Male
- Fluid Outlet Thread Type
- NPT
- Material Output (bags/hr)
- 300
- Maximum Flow Rate (GPM)
- 18.7
- Maximum Working Pressure (MPa)
- 4.1
- Maximum Working Pressure (psi)
- 600
- Motor Type
- Electric
- Overall Height (ft)
- 2.58
- Overall Height (in)
- 31
- Overall Length (ft)
- 7
- Overall Length (in)
- 84
- Overall Width (ft)
- 2.42
- Overall Width (in)
- 29
- Power Rating (HP)
- 15
- Power Rating (W)
- 11186
- Power Rating (kW)
- 11.19
- Type
- Electric Rotor Stator Pump
- Weight (lb)
- 530
- Wetted Parts
- Tool Steel, Painted Steel, Plated Steel, PORON
- Fluid Inlet Size (cm)
- 10.7
- Fluid Inlet Size (mm)
- 107.1880
- Fluid Outlet Size (cm)
- 5.08
- Fluid Outlet Size (mm)
- 50.8
- Maximum Working Pressure (bar)
- 41.4
- Maximum Working Pressure (kPa)
- 4140
- Overall Height (cm)
- 78.74
- Overall Height (m)
- 0.79
- Overall Height (mm)
- 787.4
- Overall Length (cm)
- 213
- Overall Length (m)
- 2.13
- Overall Length (mm)
- 2134
- Overall Width (cm)
- 73.66
- Overall Width (m)
- 0.74
- Overall Width (mm)
- 736.60
- Weight (kg)
- 240.4
- Voltage
- 230 V
- Rated current
- 25 A
Standards & Compliance
- Pressure Rating
- 600 psi (41.4 bar) max working
- HS Code
- 8413.60
Compatibility & Fitment
ToughTek rotor-stator/progressive-cavity pumps move mortar, plaster, render and fireproofing. Confirm material viscosity, hose length/diameter, applicator type and voltage/phase before ordering; "bare" units exclude hose and applicator.
