Product Description

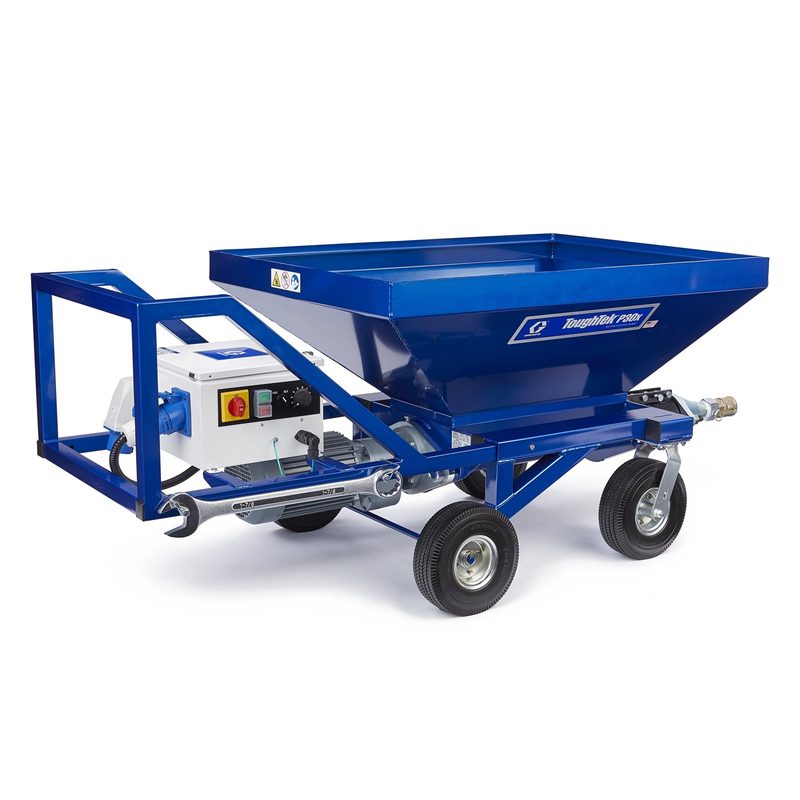

Graco 25M041 ToughTek P30X High Torque System, part number 25M041. Graco ToughTek P30X rotor-stator / progressive-cavity pump for pumping and spraying cementitious and high-viscosity materials (mortar, plaster, render, stucco, self-levelling underlayment, fireproofing). 300 psi (20.7 bar) maximum working pressure. 9.8 GPM maximum flow. Compatible material: Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing. All values read from the Graco product page (25M041 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- ToughTek
- Model
- P30X
- Series
- P30X HT
- Part number
- 25M041
- Compatible Material
- Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
- Fluid Inlet Size (in)
- 3.8
- Fluid Outlet Size (in)
- 1.5
- Fluid Outlet Thread Gender
- Male
- Fluid Outlet Thread Type
- NPT
- Maximum Flow Rate (GPM)
- 9.8
- Maximum Working Pressure (MPa)
- 2.1
- Maximum Working Pressure (psi)
- 300
- Motor Type
- Electric
- Overall Height (ft)
- 2.58
- Overall Height (in)
- 31
- Overall Length (ft)
- 6.58
- Overall Length (in)
- 79
- Overall Width (ft)
- 2.83
- Overall Width (in)
- 34
- Power Rating (HP)
- 7.5
- Power Rating (W)
- 5593
- Power Rating (kW)
- 5.59
- Type
- Electric Rotor Stator Pump
- Weight (lb)
- 440
- Wetted Parts
- Tool Steel, Painted Steel, Plated Steel, PORON
- Fluid Inlet Size (cm)
- 9.7
- Fluid Inlet Size (mm)
- 96.5200
- Fluid Outlet Size (cm)
- 3.81
- Fluid Outlet Size (mm)
- 38.1
- Maximum Working Pressure (bar)
- 20.7
- Maximum Working Pressure (kPa)
- 2070
- Overall Height (cm)
- 78.74
- Overall Height (m)
- 0.79
- Overall Height (mm)
- 787.4
- Overall Length (cm)
- 201
- Overall Length (m)
- 2
- Overall Length (mm)
- 2007
- Overall Width (cm)
- 86.36
- Overall Width (m)
- 0.86
- Overall Width (mm)
- 863.60
- Weight (kg)
- 199.6
Standards & Compliance
- Pressure Rating
- 300 psi (20.7 bar) max working
- HS Code
- 8413.60
Compatibility & Fitment
ToughTek rotor-stator/progressive-cavity pumps move mortar, plaster, render and fireproofing. Confirm material viscosity, hose length/diameter, applicator type and voltage/phase before ordering; "bare" units exclude hose and applicator.
