Graco Round Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.029 in (0.74 mm) Impingement Port
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248382 Round Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.029 in (0.74 mm) Impingement Port, part number 248382. Fusion MP Auto plural-component impingement-mix spray gun, 0.040 in (1.02 mm) fluid orifice, Round spray pattern. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam. All values read from the Graco product page (248382 on graco.com).
Technical Specifications
- Brand
- Graco Model: Fusion MP Series: Auto Part number: 248382 Type: Spray Gun Compatible material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam Spray pattern: Round Fluid orifice size: 0.040 in (1.02 mm) Maximum fluid pressure: 3500 psi (241 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Maximum flow rate @ pressure: 50 lb/min Sound pressure level: 70 dB(A) Sound power level: 79.9 dB(A) Overall length: 7.6 in (193 mm) Overall height: 3.75 in (95 mm) Overall width: 3.1 in (79 mm)
Standards & Compliance
- Pressure Rating
- 3500 psi (241 bar) max fluid
- Temperature Range
- up to 200 °F (93 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Fusion is Graco's plural-component impingement-mix spray-gun line for the Reactor proportioner range. Auto series; 0.040 in fluid orifice; Round spray pattern. Confirm orifice size, mix chamber/module and spray pattern match the material and output before ordering.
Product Documentation
More from Graco
Graco
Graco Round Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.035 in (0.9 mm) Impingement Port
248383
Graco
Graco Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.017 in (0.43 mm) Ceramic Tip and 0.013 in (0.33 mm) Impingement Port
248384
Graco
Graco Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Ceramic Tip and 0.018 in (0.46 mm) Impingement Port
248385
Graco
Graco Round Pattern Automatic Fusion Mechanical Purge Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.035 in (0.9 mm) Impingement Port
248386
Graco
Graco Round Pattern Automatic Fusion Mechanical Purge Gun with 0.070 in (1.8 mm) Ceramic Tip and 0.057 in (1.45 mm) Impingement Port
248387
Graco

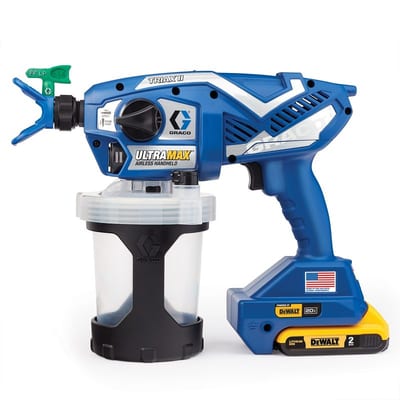

Graco UltraMAX Cordless Handheld Airless Sprayer
17M367
Graco

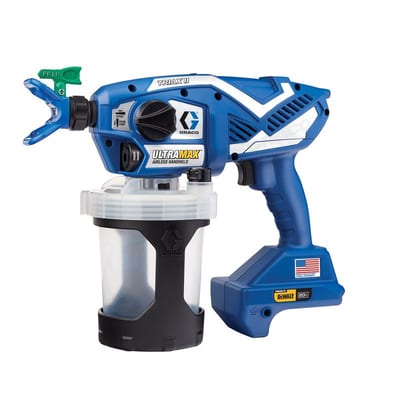

Graco UltraMAX Cordless Handheld Airless Sprayer, Tool-Only
17P928
Graco

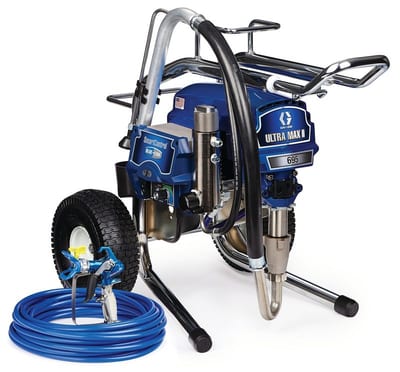

Graco Ultra Max II 695 Standard Series Electric Airless Sprayer, Lo-Boy
