Product Description
Graco 247955 T1 Complete Package: Includes 2 Pumps (Stainless Steel), 2 Supply Hoses, Air Supply Kit and Desicant Dryer Kit, part number 247955. Graco T1 pneumatic (air-operated) piston transfer/supply pump. 2:1 pump ratio. 360 psi maximum working pressure. 2.5 gpm maximum flow rate. 1/2 in fluid outlet. Wetted material Stainless Steel. For industrial applications. All values read from the Graco product page (247955 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- T1
- Part number
- 247955
- Air Inlet Size (in)
- 1/4
- Air Inlet Thread Gender
- Female
- Air Inlet Thread Type
- NPT
- Application
- Industrial
- Compatible Material
- Polyurethane Materials
- Cycles Per Gallon
- 40
- Fluid Outlet Size (in)
- 1/2
- Fluid Outlet Thread Gender
- Female
- Fluid Outlet Thread Type
- NPT
- For Use With
- Reactor Proportioner
- Material
- Stainless Steel
- Maximum Air Inlet Pressure (MPa)
- 1.2
- Maximum Air Inlet Pressure (psi)
- 180
- Maximum Continuous Cycle Rate (CPM)
- 100
- Maximum Flow Rate (GPM)
- 2.5
- Maximum Operating Temperature (°F)
- 180
- Maximum Working Pressure (MPa)
- 2.5
- Maximum Working Pressure (psi)
- 360
- Model
- T1
- Package Options
- Air Supply & Supply Hose
- Pump Ratio
- 2:1
- Seal Material
- PTFE
- Sound Power Level (dB(A))
- 96.8
- Sound Pressure Level (dB(A))
- 88.7
- Type
- Pneumatic Piston Pump
- Weight (lb)
- 18.5
- Wetted Material
- Stainless Steel
- Air Inlet Size (mm)
- 6.35
- Fluid Outlet Size (mm)
- 12.7
- Maximum Air Inlet Pressure (bar)
- 12.5
- Maximum Air Inlet Pressure (kPa)
- 1250
- Maximum Flow Rate (L/min)
- 9.5
- Maximum Operating Temperature (°C)
- 82
- Maximum Working Pressure (bar)
- 25
- Maximum Working Pressure (kPa)
- 2500
- Weight (kg)
- 8.4
Standards & Compliance
- Material
- Stainless Steel
- Pressure Rating
- 360 psi max
- HS Code
- 8413.50
Compatibility & Fitment
Air-operated piston transfer/supply pump. Confirm pump ratio, wetted material and fluid/air inlet thread against the fluid and air supply before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco T1 Package: Includes 2 Pumps (Stainless Steel) and 2 Supply Hoses
247956
Graco
Graco T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio
256200
Graco
Graco FieldLazer S100 Airless Field Striper
248942
Graco
Graco FieldLazer ES100 Battery-Powered Airless Field Striper
25U542
Graco
Graco SG3 Metal Spray Gun
243012
Graco
Graco Husky 2150 AL 2 in. (51 mm) NPT Remote Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm
DG3777
Graco

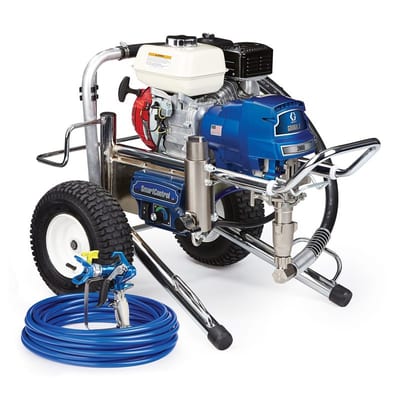

Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Lo-Boy
17E826
Graco

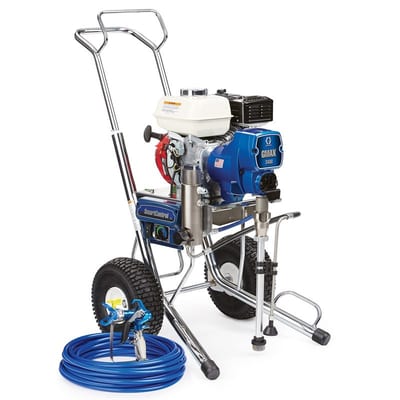

Graco GMAX 3400 Standard Series Gas Airless Sprayer
