Product Description

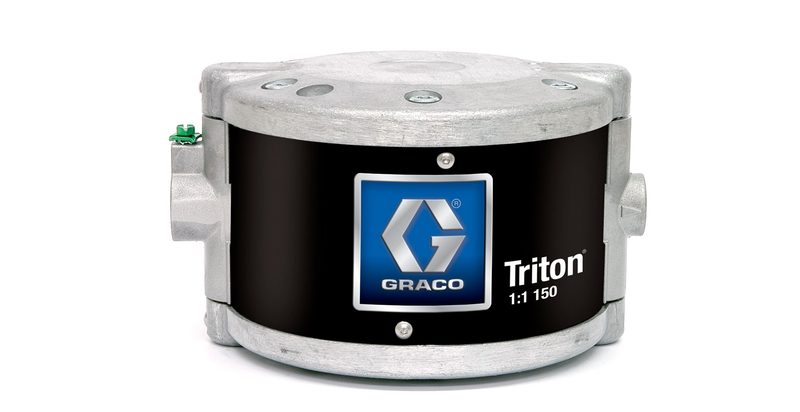

Graco 246654 Triton aluminum air-powered diaphragm pump, part number 246654. Maximum working pressure 115 psi (8 bar); maximum fluid flow 2 gpm (7.6 lpm). Aluminum fluid section. All values read from the Graco product page (246654 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Triton
- Part number
- 246654
- Product type
- Package
- Material
- Aluminum
- Pump ratio
- 1:1
- Power source
- Air
- Maximum working pressure
- 115 psi (8 bar)
- Maximum flow rate
- 2 gpm (7.6 lpm)
- Maximum air inlet pressure
- 115 psi (8 bar)
- Fluid inlet size
- 3/4 in. (19.05 mm)
- Fluid outlet size
- 3/8 in. (9.525 mm)
- Air inlet size
- 1/4 in.
- Air inlet thread type
- NPT
Standards & Compliance
- Material
- Aluminum
- Pressure Rating
- 115 psi (8 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
Triton is Graco's air-powered (pneumatic diaphragm) finishing pump line. The 1:1 pump ratio feeds fluid at supply-air pressure; the aluminum fluid section is matched to the coating being handled. This is the bare pump; add the mount, hoses and applicator to suit the application. Confirm the compressed-air supply and mount suit the installation before ordering.
Product Documentation
More from Graco
Graco

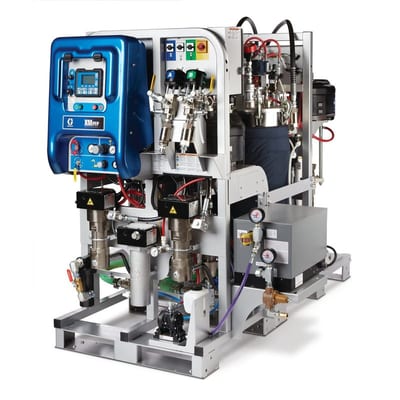

Graco XM PFP Sprayer System, Non-Hazardous Location, 1:1 to 1.5:1 Ratio Range, Heated Hose Bundle
24W626
Graco
Graco Complete XM PFP System, 50 ft (15.2 m) Dual Heated Hose, Mix Manifold, 17 ft (5.2 m) Static Mix Line, 30:1 Flush Pump, XHF Gun with 429 Tip
262869
Graco
Graco 2K PFP Firetex Proportioning System
262898
Graco

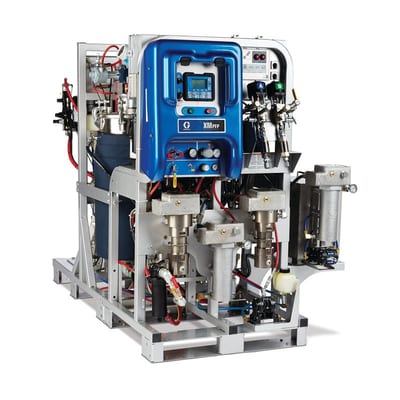

Graco Complete XM PFP System for Explosive Atmospheres, 50FT Dual (3/4X1/2) Heated Hose, Mix Manifold, 17FT Static Mix Line, 30:1 Flush Pump, 429TIP
262943
Graco
Graco Complete XM PFP System for Explosive Atmospheres, 50FT Dual (3/4X3/4) Heated Hose, Mix Manifold, 17FT Static Mix Line, 30:1 Flush Pump, 429TIP
262945
Graco

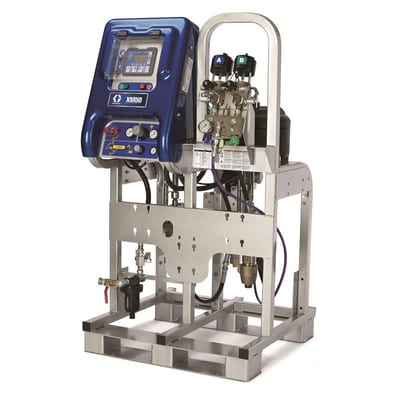

Graco XM50 Sprayer, Pump Filter, Wall Power
XM1A00
Graco

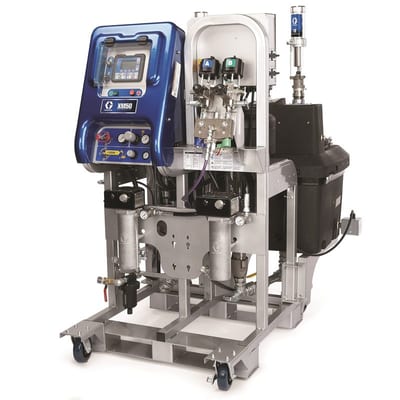

Graco XM50 Sprayer, Pump Filter, Wall Power, 20gal (75L)/7gal (26.5L) Hoppers, Inlet/Mount/Agitator Kits
