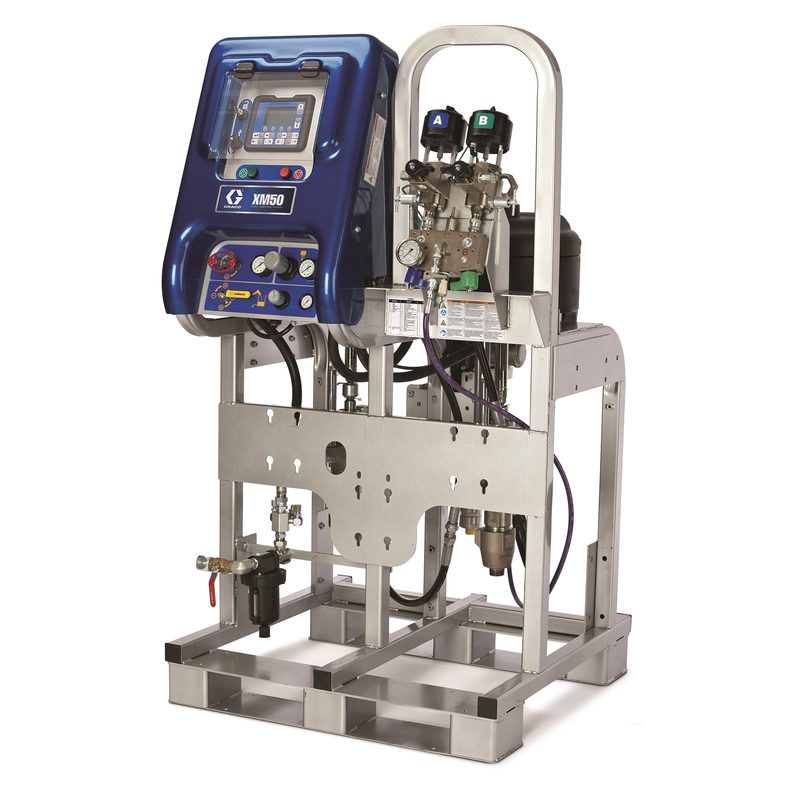

Graco XM50 Sprayer, Pump Filter, Wall Power
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco XM1A00 XM50 Sprayer, Pump Filter, Wall Power, part number XM1A00. Plural Component (XM50). Mix ratio 1:1-10:1. Maximum working pressure 5200 psi (358 bar); maximum fluid flow 3 gpm (11.36 lpm). Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents. Wetted parts: Aluminum, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene. Includes: Whip Hose, Static Mixer, XTR Spray Gun. All values read from the Graco product page (XM1A00 on graco.com).
Technical Specifications
- Brand
- Graco Model: XM50 Part number: XM1A00 Maximum working pressure: 5200 psi (358 bar) Maximum flow rate: 3 gpm (11.36 lpm) Product type: Plural Component Type: Plural Component Sprayer Component type: Plural-Component Measuring type: Electronic Positive Displacement Gun type: Airless Gun Compatible material: Protective Coating, Primer, Epoxy, Polyurethane, Two-Component Coating, Solvents Flush type: Solvent minimum mix ratio: 1:1 Maximum mix ratio: 10:1 Number of tanks: 0 Feed pumps: None 20 gal heated hopper method: None Power source: Electric Air inlet size: 3/4 in. Female NPT Sound pressure level: 86 dB(A) Overall height: 70 in. Wetted material: Aluminum, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene Includes: Whip Hose, Static Mixer, XTR Spray Gun
Standards & Compliance
- Material
- Aluminum, Stainless Steel, Carbide, UHMWPE, PTFE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather, Polypropylene
- Pressure Rating
- 5200 psi (358 bar) max working
- HS Code
- 8424.20
Compatibility & Fitment
XM is Graco's plural-component (two-component) proportioning spray line for protective coatings and materials. The 1:1-10:1 mix ratio range and compatibility with protective coating, primer, epoxy, polyurethane, two-component coating, solvents determine which coatings this configuration handles. This configuration includes: Whip Hose, Static Mixer, XTR Spray Gun. Confirm the electrical supply (phase/voltage), hopper/feed configuration and gun/tip suit the coating before ordering.
