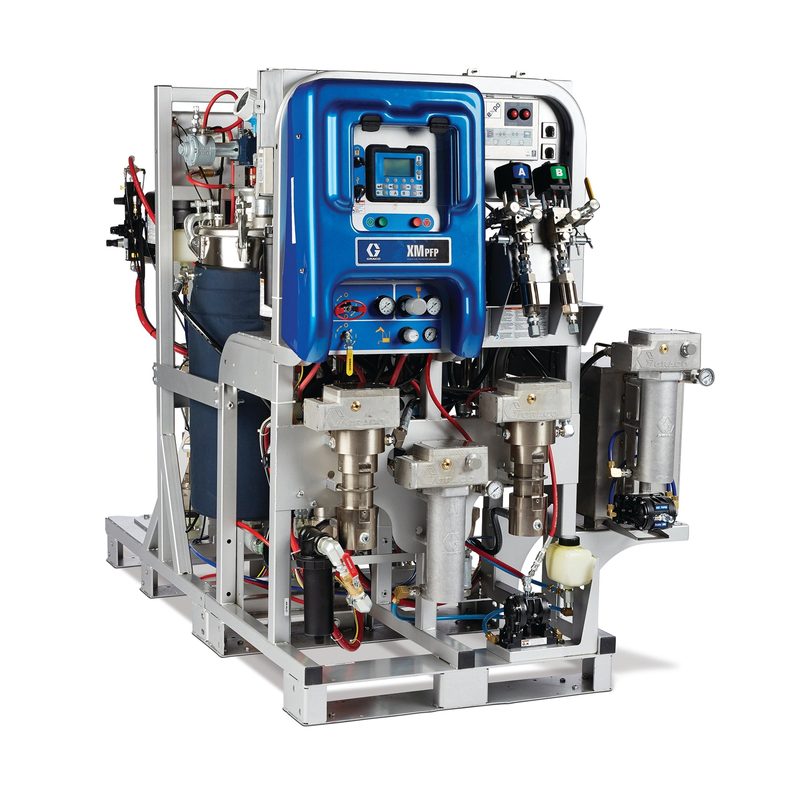

Graco Complete XM PFP System for Explosive Atmospheres, 50FT Dual (3/4X1/2) Heated Hose, Mix Manifold, 17FT Static Mix Line, 30:1 Flush Pump, 429TIP

Graco 262943 Complete XM PFP System for Explosive Atmospheres, 50ft Dual (3/4x1/2) Heated Hose, Mix Manifold, 17ft Static Mix Line, 30:1 Flush Pump, 429Tip, part number 262943. Plural Component. Mix ratio 1.5:1-4:1. maximum fluid flow 3 gpm (11.36 lpm). Compatible material: Intumescent Fireproofing Epoxy. Wetted parts: Aluminum, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather. Includes: (2) Heated PFP Hoses. All values read from the Graco product page (262943 on graco.com).

Brand

Graco Model: XM Part number: 262943 Maximum flow rate: 3 gpm (11.36 lpm) Product type: Plural Component Type: Proportioning Package Component type: Plural-Component Measuring type: Positive Displacement, Dosing Valve Applicator type: Manual Gun type: Airless Gun Compatible material: Intumescent Fireproofing Epoxy Flush type: Hot Water, Solvent Mix ratio: 1.5:1-4:1 minimum mix ratio: 1.5:1 Maximum mix ratio: 4:1 Mix accuracy: +/- 5 Number of tanks: 2 Tank capacity: 20 Number of catalysts: 1 Number of resin colors: 1 Power source: Electric, Air Power rating: 18.8 Phase: 3 Amperage: 63, 40 Hose length: 67 ft (20.4 m) Air inlet size: 1 in. Female NPT Sound pressure level: 86 dB(A) Overall height: 70, 84 in. Overall width: 38, 76 in. Overall depth: 52, 104 in. Wetted material: Aluminum, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather Includes: (2) Heated PFP Hoses

Material

Aluminum, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Carbon Steel, Alloy Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, Polyethylene, Leather

HS Code

8424.20
