Graco Round Fusion Air-Purge Gun with 000 Mix Chamber and 0.020 in (0.51 mm) Orifice Size
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 246099 Round Fusion Air-Purge Gun with 000 Mix Chamber and 0.020 in (0.51 mm) Orifice Size, part number 246099. Fusion AP Round plural-component impingement-mix spray gun, 0.020 in (0.51 mm) fluid orifice, Round spray pattern. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam. All values read from the Graco product page (246099 on graco.com).
Technical Specifications
- Brand
- Graco Model: Fusion AP Series: Round Part number: 246099 Type: Spray Gun Gun type: Air Purge Gun Applicator type: Manual Compatible material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam Spray pattern: Round Pattern size: 5 in @ 24 in from target Fluid orifice size: 0.020 in (0.51 mm) Mix chamber: 000 (.020) Impingement port size: 0.020 in (0.50 mm) Maximum fluid pressure: 3500 psi (241 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Maximum flow rate @ pressure: 50 lb/min Air inlet size: 1/4 in Sound pressure level: 81.1 dB(A) Sound power level: 91 dB(A) Gun weight: 2.5 lb (1.1 kg) Overall length: 7.5 in (191 mm) Overall height: 8.1 in (206 mm) Overall width: 3.3 in (84 mm)
Standards & Compliance
- Pressure Rating
- 3500 psi (241 bar) max fluid
- Temperature Range
- up to 200 °F (93 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Fusion is Graco's plural-component impingement-mix spray-gun line for the Reactor proportioner range. Round series; Air Purge Gun; 0.020 in fluid orifice; mix chamber 000 (.020); Round spray pattern. Confirm orifice size, mix chamber/module and spray pattern match the material and output before ordering.
Product Documentation
More from Graco
Graco
Graco Round Fusion Air-Purge Gun with 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size
246100
Graco
Graco Round Fusion Air-Purge Gun with 03 Mix Chamber and 0.060 in (1.5 mm) Orifice Size
246103
Graco
Graco Round Fusion Air-Purge Gun with 04 Mix Chamber and 0.070 in (1.8 mm) Orifice Size
246104
Graco
Graco Round Fusion Air-Purge Gun with 05 Mix Chamber and 0.070 in (1.8 mm) Orifice Size
246105
Graco
Graco Round Fusion Air-Purge Gun with 02 Mix Chamber and 0.052 in (1.3 mm) Orifice Size
246102
Graco
Graco Adhesive/Spatter Round Pattern Fusion Air-Purge Gun for Fleeceback Roofing Systems
248408
Graco
Graco Round Fusion Air-Purge Gun with 00-01 Mix Chamber and 0.037 in (0.94 mm) Orifice Size
248617
Graco

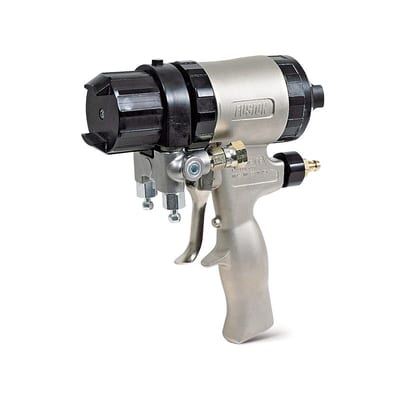

Graco Manual Fusion Solvent-Purge Gun
