Graco Manual Fusion Solvent-Purge Gun
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248597 Manual Fusion Solvent-Purge Gun, part number 248597. Fusion MP Specialty plural-component impingement-mix spray gun. Maximum fluid pressure 3500 psi (241 bar). Maximum fluid temperature 200 °F. Compatible material: Non-Flammable Foam, Polyurea. All values read from the Graco product page (248597 on graco.com).
Technical Specifications
- Brand
- Graco Model: Fusion MP Series: Specialty Part number: 248597 Type: Spray Gun Gun type: Solvent Purge Spray Gun Component type: Plural-Component Applicator type: Manual Trigger type: Two-Finger Compatible material: Non-Flammable Foam, Polyurea Maximum fluid pressure: 3500 psi (241 bar) Maximum fluid working pressure: 3500 psi (242 bar) Maximum air inlet pressure: 130 psi (9 bar) minimum air inlet pressure: 80 psi (5.5 bar) Maximum fluid temperature: 200 °F (93 °C) Air inlet size: 1/4 in NPT Component A inlet size: 1/2-20 in UNF Component B inlet size: 9/16-18 in UNF Sound pressure level: 70 dB(A) Sound power level: 79.9 dB(A) Gun weight: 3.7 lb (1.68 kg) Overall length: 9 in (228 mm) Overall height: 8.1 in (206 mm) Overall width: 3.5 in (89 mm) For use with: Reactor Spray Foam and Coatings Equipment
Standards & Compliance
- Pressure Rating
- 3500 psi (241 bar) max fluid
- Temperature Range
- up to 200 °F (93 °C)
- HS Code
- 8424.20
Compatibility & Fitment
Fusion is Graco's plural-component impingement-mix spray-gun line for the Reactor proportioner range. Specialty series; Solvent Purge Spray Gun; Confirm orifice size, mix chamber/module and spray pattern match the material and output before ordering.
Product Documentation
More from Graco
Graco
Graco Fusion Automatic Solvent-Purge Gun
248647
Graco
Graco Round Fusion Air-Purge Gun with 03 Mix Chamber
248379
Graco
Graco Round Fusion Air-Purge Gun with 01 Mix Chamber
248377
Graco
Graco Fusion Air-Purge Gun, 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port & 8-10 in (203-254 mm) Flat Pattern Size
248381
Graco
Graco Fusion Air-Purge Gun, 0.024 in (0.61 mm) Orifice Size, 0.020 in (0.51 mm) Impingement Port and Low Flow 8-10 in (203-254 mm) Flat Pattern Size
248380
Graco
Graco Round Fusion Air-Purge Gun with 00 Mix Chamber
248376
Graco
Graco Round Auto Fusion Air-Purge Gun with 02 Mix Chamber
248378
Graco

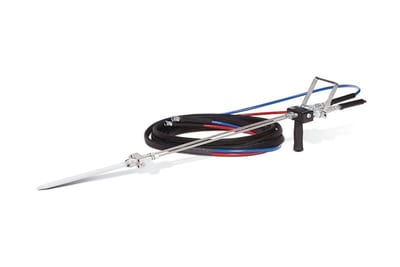

Graco Manual 2K Dispense Gun
