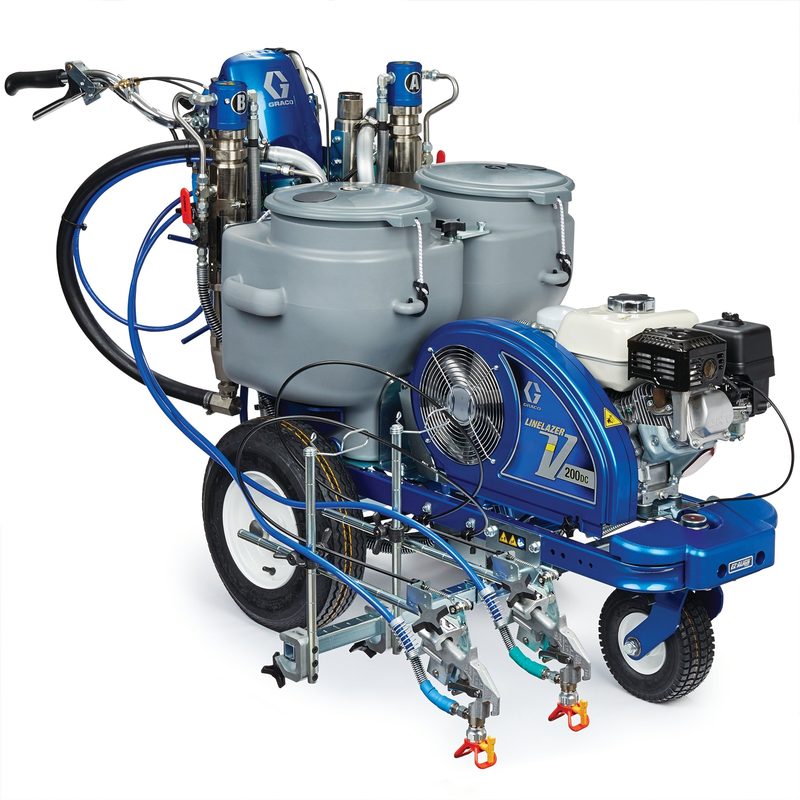

Graco LineLazer V 200DC Standard Series Airless Line Striper, 2 Manual Guns

Graco 17Y231 LineLazer V 200DC Standard Series Airless Line Striper, 2 Manual Guns, part number 17Y231. Graco LineLazer walk-behind line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 2.15 gpm maximum flow rate. Gas Hydraulic powered. Honda GX200 engine. 2 gun(s). Maximum tip size 0.033 in. Weight 381 lb. All values read from the Graco product page (17Y231 on graco.com).

Brand

Graco

Line

LineLazer

Part number

17Y231

Attachments

None

Compatible Material

Road-Marking Paint

Compatible Surfaces

Pavement, Turf

Engine Brand

Honda

Engine Model

GX200

Fuel Tank Capacity (gal)

0.95

Gun Activation

2 Manual

Hopper Volume Capacity (gal)

10

Includes

Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), TSL, 4 oz

Maximum Flow Rate (GPM)

2.15

Maximum Sound Pressure Level (dB(A))

85.5

Maximum Tip Size (in)

0.033

Maximum Working Pressure (psi)

3300

Model

LineLazer V

Number of Colors

Two Colors

Number of Guns

2

Number of Hoppers

2

Number of Pumps

2

Overall Height (in)

44.5

Overall Length (in)

68.75

Overall Width (in)

34.25

Power Rating (HP)

6.5

Power Rating (kW)

4.85

Power Source

Gas Hydraulic

Product Series

Standard

Pump Type

Endurance

Series

200DC

Type

Walk-Behind Line Striper

Weight (lb)

381

Fuel Tank Capacity (L)

3.6

Hopper Volume Capacity (L)

38

Maximum Flow Rate (L/min)

8.14

Maximum Tip Size (cm)

0.0838

Maximum Tip Size (mm)

1.194

Maximum Working Pressure (bar)

227

Maximum Working Pressure (kPa)

2270

Overall Height (cm)

113.03

Overall Height (mm)

1130.3

Overall Length (cm)

174.63

Overall Length (mm)

1746.25

Overall Width (cm)

87.0

Overall Width (mm)

870

Weight (kg)

173

Pressure Rating

3300 psi max working

HS Code

8424.89
