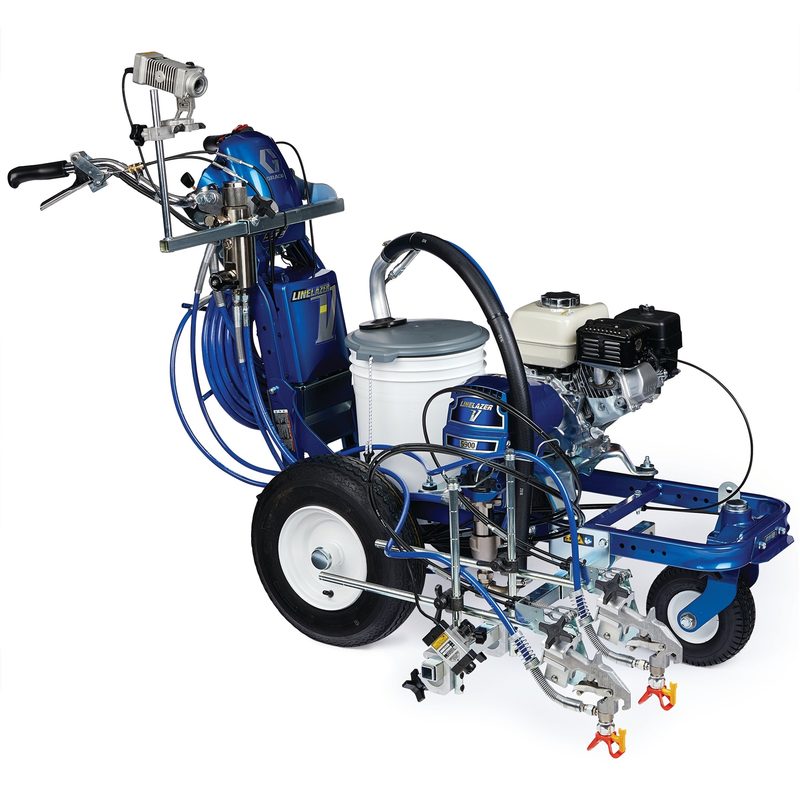

Graco LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17U802 LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000, part number 17U802. Graco LineLazer walk-behind line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 1.6 gpm maximum flow rate. Gas powered. Honda GX160 engine. 2 gun(s). Maximum tip size 0.043 in. Weight 261 lb. All values read from the Graco product page (17U802 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- LineLazer
- Part number
- 17U802
- Attachments
- LazerGuide 2000, LazerGuide 1700
- Bead System
- Optional
- Compatible Material
- Road-Marking Paint
- Compatible Surfaces
- Pavement, Turf
- Engine Brand
- Honda
- Engine Model
- GX160
- Features
- SmartControl
- Fuel Tank Capacity (gal)
- 0.95
- Gun Activation
- 1 Automatic & 1 Manual
- Includes
- LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
- Maximum Flow Rate (GPM)
- 1.6
- Maximum Tip Size (in)
- 0.043
- Maximum Working Pressure (psi)
- 3300
- Model
- LineLazer V
- Number of Colors
- One Color
- Number of Guns
- 2
- Number of Pumps
- 1
- Power Rating (HP)
- 5.5
- Power Rating (W)
- 4100
- Power Rating (kW)
- 4.1
- Power Source
- Gas
- Product Series
- HP Automatic
- Pump Type
- Endurance
- Series
- 5900
- Type
- Walk-Behind Line Striper
- Weight (lb)
- 261
- Fuel Tank Capacity (L)
- 3.6
- Maximum Flow Rate (L/min)
- 6.06
- Maximum Tip Size (cm)
- 0.1092
- Maximum Tip Size (mm)
- 1.092
- Maximum Working Pressure (bar)
- 227
- Maximum Working Pressure (kPa)
- 2270
- Weight (kg)
- 121
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.89
Compatibility & Fitment
Complete LineLazer striper. Confirm power source (gas / battery), number of guns and tip sizes against the marking application before ordering. Bundled gun, hose and tip kit is listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns, LazerGuide 2000
17U803
Graco
Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
17U804
Graco

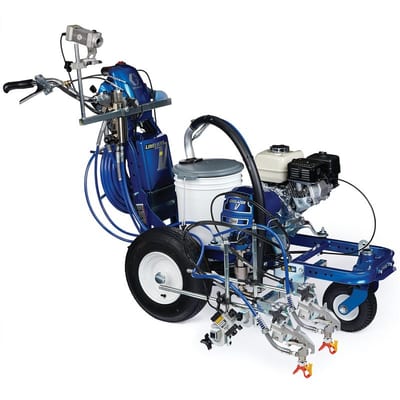

Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns, LazerGuide 2000
17U805
Graco

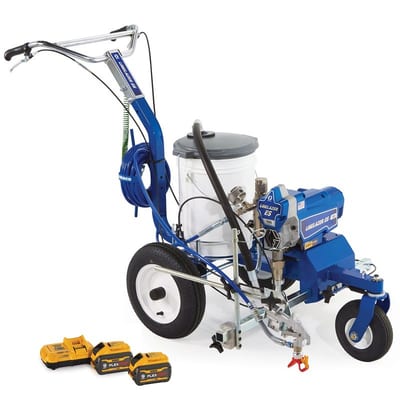

Graco LineLazer ES 500 Battery-Powered Airless Line Striper
25U546
Graco

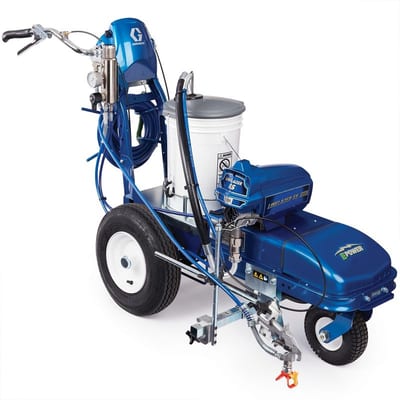

Graco LineLazer ES 1000 Battery-Powered Airless Line Striper, 1 Manual Gun, 2 Lithium Batteries
25U676
Graco

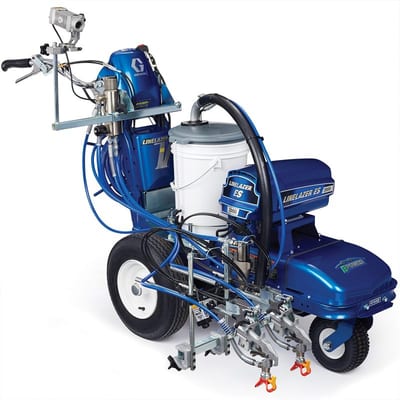

Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
25U683
Graco
Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 2 Auto Guns, LazerGuide 2000
25U684
Graco

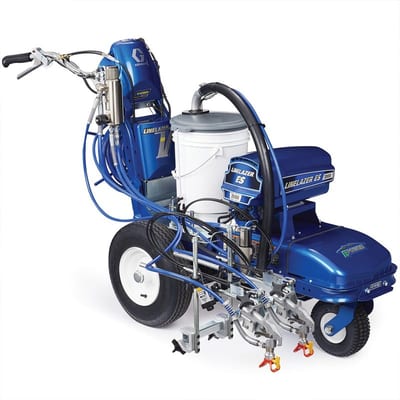

Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun
