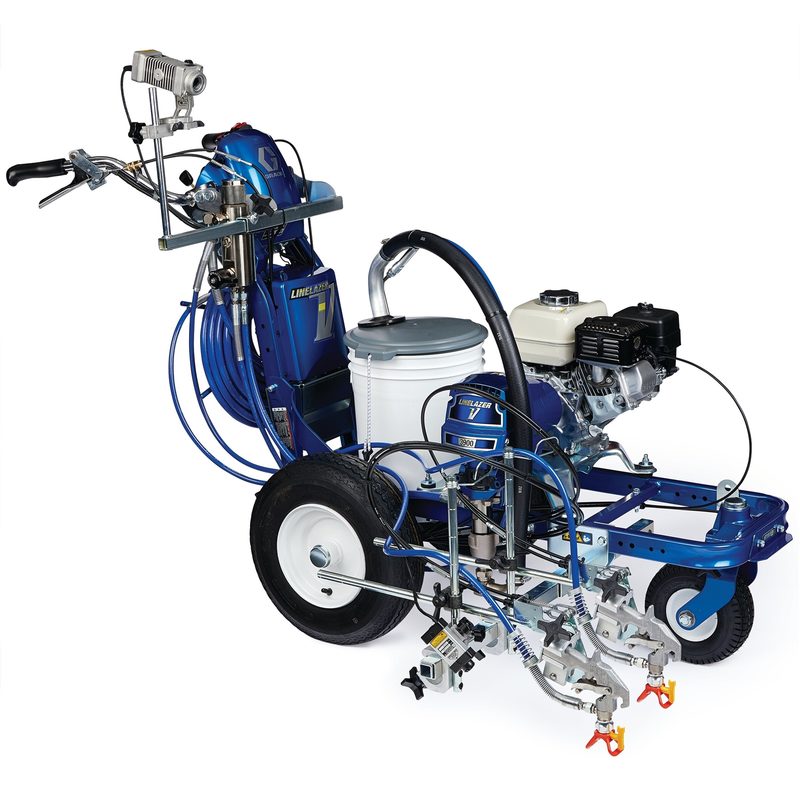

Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17U804 LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000, part number 17U804. Graco LineLazer walk-behind line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 1.25 gpm maximum flow rate. Gas powered. Honda GX120 engine. 2 gun(s). Maximum tip size 0.036 in. Weight 240 lb. All values read from the Graco product page (17U804 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- LineLazer
- Part number
- 17U804
- Attachments
- LazerGuide 2000, LazerGuide 1700
- Bead System
- Optional
- Compatible Material
- Road-Marking Paint
- Compatible Surfaces
- Pavement, Turf
- Engine Brand
- Honda
- Engine Model
- GX120
- Features
- SmartControl
- Fuel Tank Capacity (gal)
- 0.66
- Gun Activation
- 1 Automatic & 1 Manual
- Includes
- LazerGuide 2000, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
- Maximum Flow Rate (GPM)
- 1.25
- Maximum Tip Size (in)
- 0.036
- Maximum Working Pressure (psi)
- 3300
- Model
- LineLazer V
- Number of Colors
- One Color
- Number of Guns
- 2
- Number of Pumps
- 1
- Power Rating (HP)
- 4
- Power Rating (W)
- 2980
- Power Rating (kW)
- 2.98
- Power Source
- Gas
- Product Series
- HP Automatic
- Pump Type
- Endurance
- Series
- 3900
- Type
- Walk-Behind Line Striper
- Weight (lb)
- 240
- Fuel Tank Capacity (L)
- 2.5
- Maximum Flow Rate (L/min)
- 4.73
- Maximum Tip Size (cm)
- 0.0914
- Maximum Tip Size (mm)
- 0.914
- Maximum Working Pressure (bar)
- 227
- Maximum Working Pressure (kPa)
- 2270
- Weight (kg)
- 109
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.89
Compatibility & Fitment
Complete LineLazer striper. Confirm power source (gas / battery), number of guns and tip sizes against the marking application before ordering. Bundled gun, hose and tip kit is listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns, LazerGuide 2000
17U805
Graco
Graco LineLazer ES 500 Battery-Powered Airless Line Striper
25U546
Graco
Graco LineLazer ES 1000 Battery-Powered Airless Line Striper, 1 Manual Gun, 2 Lithium Batteries
25U676
Graco
Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun, LazerGuide 2000
25U683
Graco
Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 2 Auto Guns, LazerGuide 2000
25U684
Graco
Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun
25U679
Graco

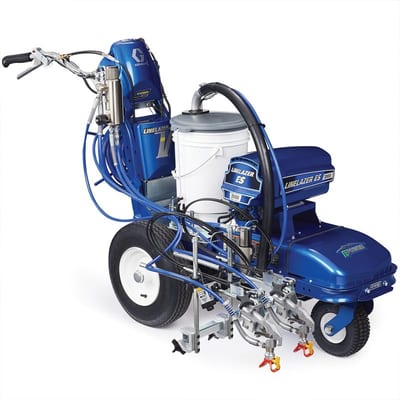

Graco LineLazer V ES 2000 HP Automatic Series Battery-Powered Airless Line Striper, 2 Auto Guns
25U680
Graco

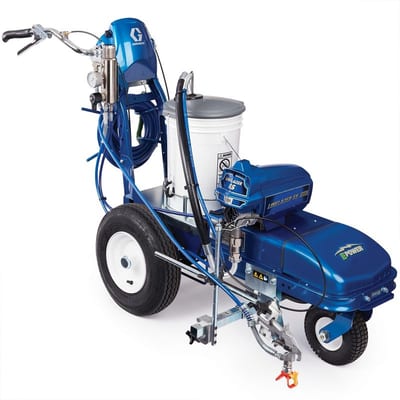

Graco LineLazer ES 1000 Battery-Powered Airless Line Striper, 1 Manual Gun, 1 Lithium Battery
