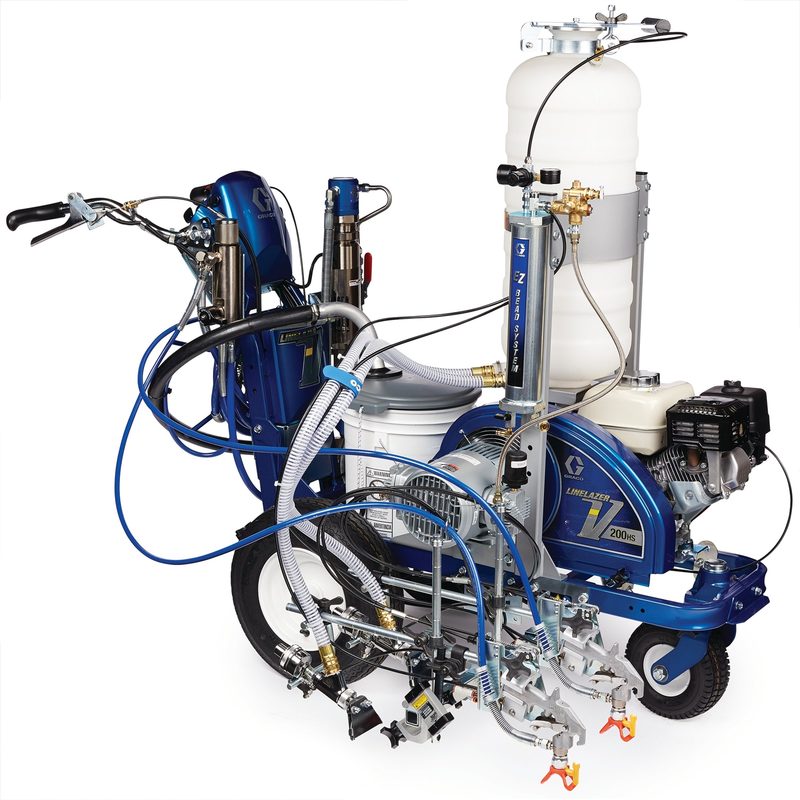

Graco LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17H465 LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns, part number 17H465. Graco LineLazer walk-behind line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 2.15 gpm maximum flow rate. Gas Hydraulic powered. Honda GX200 engine. 2 gun(s). Maximum tip size 0.034 in. Weight 417 lb. All values read from the Graco product page (17H465 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- LineLazer
- Part number
- 17H465
- Attachments
- LazerGuide 1700
- Bead System
- Pressurized Bead System
- Bead Tank Size (lb)
- 120
- Compatible Material
- Road-Marking Paint
- Compatible Surfaces
- Pavement, Turf
- Engine Brand
- Honda
- Engine Model
- GX200
- Features
- Air Valves, Bead Embedment, Bead Pressurized System, Bead Tank
- Fuel Tank Capacity (gal)
- 0.95
- Gun Activation
- 2 Automatic
- Includes
- Pressurized Bead System, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
- Maximum Flow Rate (GPM)
- 2.15
- Maximum Sound Pressure Level (dB(A))
- 85.5
- Maximum Tip Size (in)
- 0.034
- Maximum Working Pressure (psi)
- 3300
- Model
- LineLazer V
- Number of Colors
- One Color
- Number of Guns
- 2
- Number of Pumps
- 1
- Power Rating (HP)
- 6.5
- Power Rating (W)
- 4850
- Power Rating (kW)
- 4.85
- Power Source
- Gas Hydraulic
- Product Series
- HP Reflective
- Pump Type
- Endurance
- Series
- 200HS
- Type
- Walk-Behind Line Striper
- Weight (lb)
- 417
- Fuel Tank Capacity (L)
- 3.6
- Maximum Flow Rate (L/min)
- 8.14
- Maximum Tip Size (cm)
- 0.0864
- Maximum Tip Size (mm)
- 0.864
- Maximum Working Pressure (bar)
- 227
- Maximum Working Pressure (kPa)
- 2270
- Weight (kg)
- 189.1
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.89
Compatibility & Fitment
Complete LineLazer striper. Confirm power source (gas / battery), number of guns and tip sizes against the marking application before ordering. Bundled gun, hose and tip kit is listed under "Includes" in the specifications.
