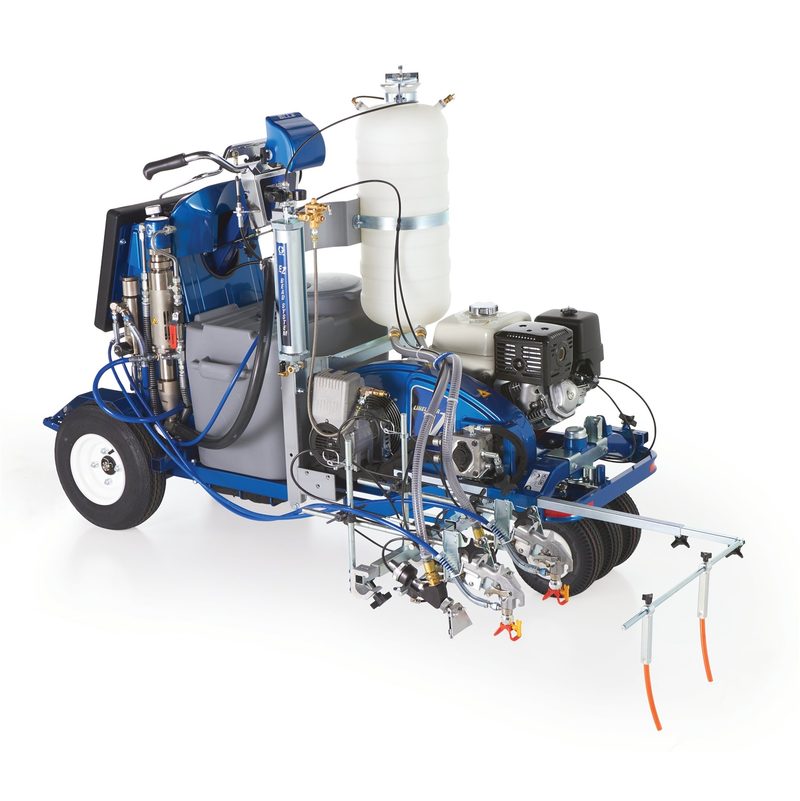

Graco LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 1 Tank
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17J951 LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 1 Tank, part number 17J951. Graco LineLazer self-propelled line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 2.5 gpm maximum flow rate. Gas Hydraulic powered. Honda GX390 engine. 2 gun(s). Maximum tip size 0.039 in. Weight 778 lb. All values read from the Graco product page (17J951 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- LineLazer
- Part number
- 17J951
- Attachments
- None
- Bead Tank Size (lb)
- 120
- Compatible Material
- Road-Marking Paint
- Compatible Surfaces
- Pavement, Turf
- Engine Brand
- Honda
- Engine Model
- GX390
- Fuel Tank Capacity (gal)
- 1.4
- Gun Activation
- 2 Automatic
- Hopper Volume Capacity (gal)
- 25
- Includes
- Pressurized Bead System (1 Bead Tank), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL)
- Maximum Flow Rate (GPM)
- 2.5
- Maximum Operating Speed (mph)
- 10
- Maximum Sound Pressure Level (dB(A))
- 89.1
- Maximum Speed (RPM)
- 3600
- Maximum Tip Size (in)
- 0.039
- Maximum Working Pressure (psi)
- 3300
- Model
- LineLazer V
- Number of Colors
- One Color
- Number of Guns
- 2
- Number of Hoppers
- 1
- Number of Pumps
- 1
- Overall Height (in)
- 50.5
- Overall Length (in)
- 73.5
- Overall Width (in)
- 33
- Power Rating (HP)
- 13
- Power Rating (kW)
- 9.69
- Power Source
- Gas Hydraulic
- Product Series
- HP Reflective
- Pump Type
- Endurance
- Series
- 250SPS
- Type
- Self-Propelled Line Striper
- Weight (lb)
- 778
- Fuel Tank Capacity (L)
- 5.3
- Hopper Volume Capacity (L)
- 95
- Maximum Flow Rate (L/min)
- 9.5
- Maximum Operating Speed (km/h)
- 16.1
- Maximum Tip Size (cm)
- 0.0991
- Maximum Tip Size (mm)
- 0.9906
- Maximum Working Pressure (bar)
- 227
- Maximum Working Pressure (kPa)
- 2270
- Overall Height (cm)
- 128.3
- Overall Height (mm)
- 1282.7
- Overall Length (cm)
- 186.7
- Overall Length (mm)
- 1866.9
- Overall Width (cm)
- 83.8
- Overall Width (mm)
- 838
- Weight (kg)
- 352
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.89
Compatibility & Fitment
Complete LineLazer striper. Confirm power source (gas / battery), number of guns and tip sizes against the marking application before ordering. Bundled gun, hose and tip kit is listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco LineLazer RAC 5 SwitchTip, 435
LL5435
Graco
Graco LineLazer RAC 5 SwitchTip, 439
LL5439
Graco
Graco LineLazer RAC 5 SwitchTip, 443
LL5443
Graco
Graco LineLazer RAC 5 SwitchTip, 621
LL5621
Graco
Graco LineLazer V 200DC HP Automatic Series Airless Line Striper, 2 Auto Guns
17Y269
Graco

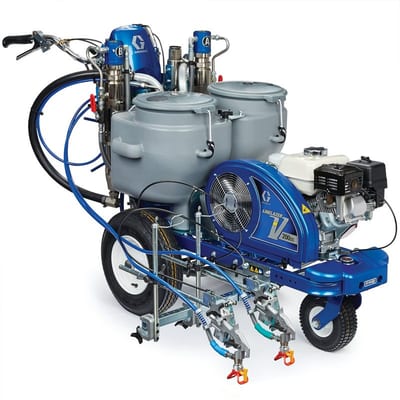

Graco LineLazer V 200DC Standard Series Airless Line Striper, 2 Manual Guns
17Y231
Graco

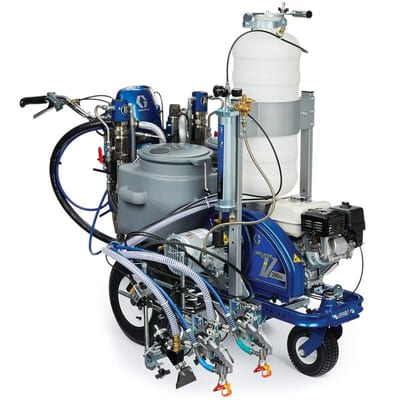

Graco LineLazer V 200DC HP Reflective Series Airless Line Striper, 2 Auto Guns, 1 Tank
17Y270
Graco

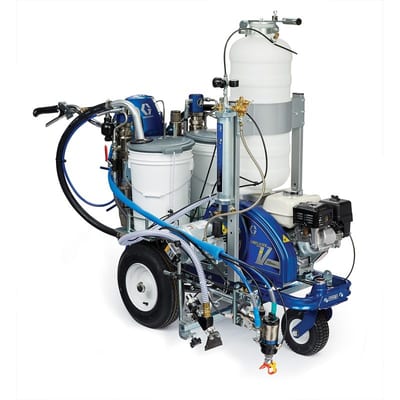

Graco LineLazer V 200MMA 1:1 HP Reflective Series Airless Line Striper, 1 Gun
