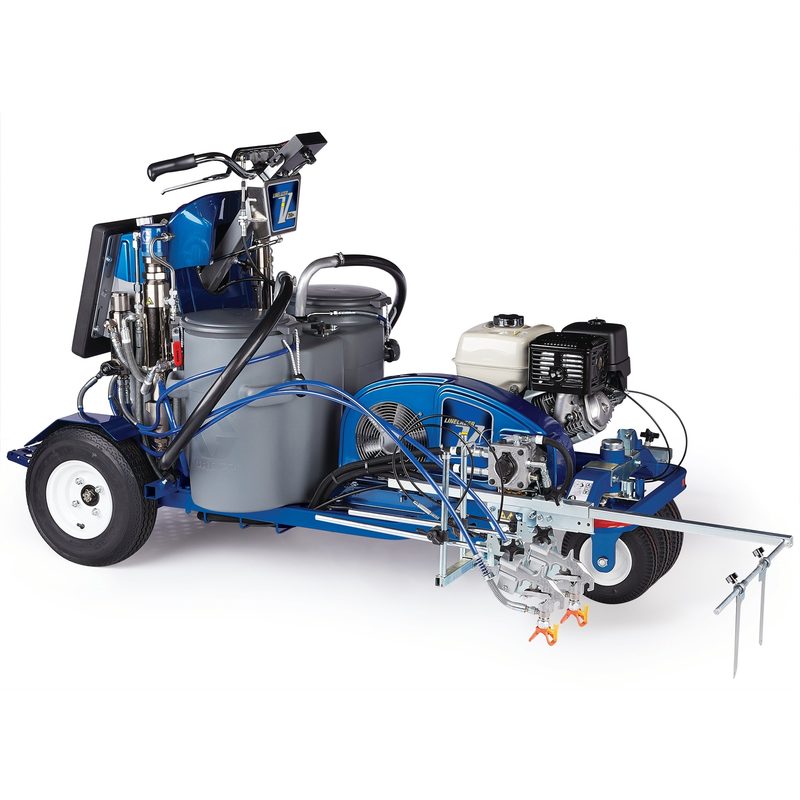

Graco LineLazer V 250DC HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 3 Auto Guns
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17H472 LineLazer V 250DC HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 3 Auto Guns, part number 17H472. Graco LineLazer self-propelled line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 2.5 gpm maximum flow rate. Gas Hydraulic powered. Honda GX390 engine. 3 gun(s). Maximum tip size 0.031 in. Weight 397 lb. All values read from the Graco product page (17H472 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- LineLazer
- Part number
- 17H472
- Attachments
- None
- Compatible Material
- Road-Marking Paint
- Compatible Surfaces
- Pavement, Turf
- Engine Brand
- Honda
- Engine Model
- GX390
- Fuel Tank Capacity (gal)
- 1.4
- Gun Activation
- 3 Automatic
- Hopper Volume Capacity (gal)
- 30
- Includes
- Flex Plus Gun (3), LineLazer RAC 5 321 Spray Tip (3), LineLazer RAC 5 425 Spray Tip (3), LineLazer RAC 5 627 Spray Tip (3), RAC 5 Tip Guard (3), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), TSL, 4 oz (118 ml)
- Maximum Flow Rate (GPM)
- 2.5
- Maximum Operating Speed (mph)
- 10
- Maximum Sound Pressure Level (dB(A))
- 86.5
- Maximum Speed (RPM)
- 3600
- Maximum Tip Size (in)
- 0.031
- Maximum Working Pressure (psi)
- 3300
- Model
- LineLazer V
- Number of Colors
- Two Colors
- Number of Guns
- 3
- Number of Hoppers
- 2
- Number of Pumps
- 2
- Overall Height (in)
- 50.5
- Overall Length (in)
- 73.5
- Overall Width (in)
- 33
- Power Rating (HP)
- 13
- Power Rating (kW)
- 9.69
- Power Source
- Gas Hydraulic
- Product Series
- HP Automatic
- Pump Type
- Endurance
- Series
- 250DC
- Type
- Self-Propelled Line Striper
- Weight (lb)
- 397
- Fuel Tank Capacity (L)
- 5.3
- Hopper Volume Capacity (L)
- 114
- Maximum Flow Rate (L/min)
- 9.5
- Maximum Operating Speed (km/h)
- 16.1
- Maximum Tip Size (cm)
- 0.0787
- Maximum Tip Size (mm)
- 0.7874
- Maximum Working Pressure (bar)
- 227
- Maximum Working Pressure (kPa)
- 2270
- Overall Height (cm)
- 128.3
- Overall Height (mm)
- 1282.7
- Overall Length (cm)
- 186.7
- Overall Length (mm)
- 1866.9
- Overall Width (cm)
- 83.8
- Overall Width (mm)
- 838
- Weight (kg)
- 180
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.89
Compatibility & Fitment
Complete LineLazer striper. Confirm power source (gas / battery), number of guns and tip sizes against the marking application before ordering. Bundled gun, hose and tip kit is listed under "Includes" in the specifications.
