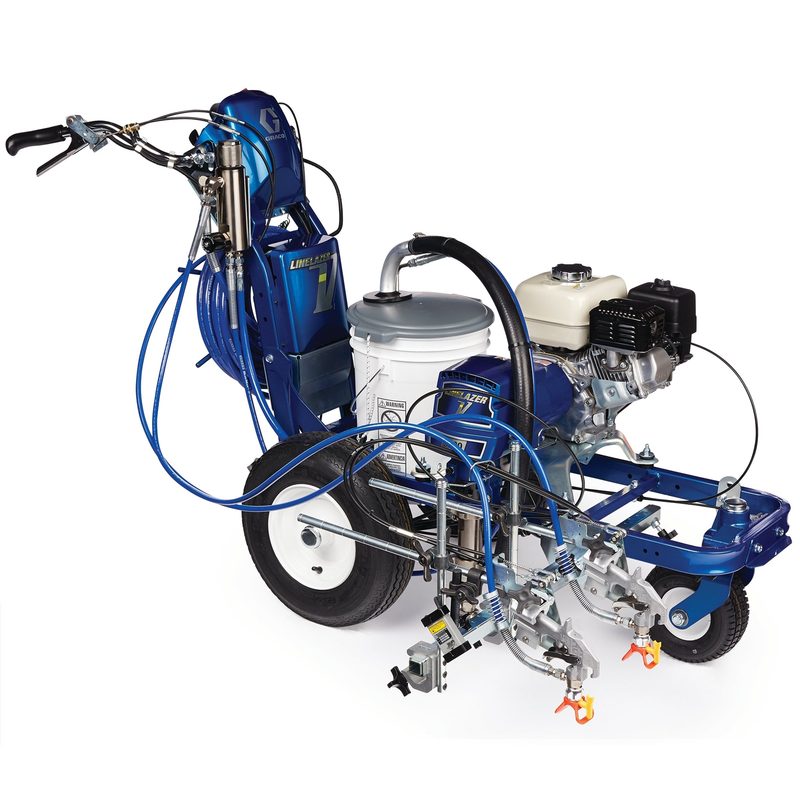

Graco LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17H457 LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 1 Auto Gun, 1 Manual Gun, part number 17H457. Graco LineLazer walk-behind line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 1.6 gpm maximum flow rate. Gas powered. Honda GX160 engine. 2 gun(s). Maximum tip size 0.043 in. Weight 266 lb. All values read from the Graco product page (17H457 on graco.com).
Technical Specifications
- Brand
- Graco
- Line
- LineLazer
- Part number
- 17H457
- Attachments
- LazerGuide 1700
- Bead System
- Optional
- Compatible Material
- Road-Marking Paint
- Compatible Surfaces
- Pavement, Turf
- Engine Brand
- Honda
- Engine Model
- GX160
- Fuel Tank Capacity (gal)
- 0.95
- Gun Activation
- 1 Automatic & 1 Manual
- Includes
- LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
- Maximum Flow Rate (GPM)
- 1.6
- Maximum Sound Pressure Level (dB(A))
- 87.1
- Maximum Tip Size (in)
- 0.043
- Maximum Working Pressure (psi)
- 3300
- Model
- LineLazer V
- Number of Colors
- One Color
- Number of Guns
- 2
- Number of Pumps
- 1
- Power Rating (HP)
- 5.5
- Power Rating (W)
- 4100
- Power Rating (kW)
- 4.1
- Power Source
- Gas
- Product Series
- HP Automatic
- Pump Type
- Endurance
- Series
- 5900
- Type
- Walk-Behind Line Striper
- Weight (lb)
- 266
- Fuel Tank Capacity (L)
- 3.6
- Maximum Flow Rate (L/min)
- 6.06
- Maximum Tip Size (cm)
- 0.1092
- Maximum Tip Size (mm)
- 1.092
- Maximum Working Pressure (bar)
- 227
- Maximum Working Pressure (kPa)
- 2270
- Weight (kg)
- 120.7
Standards & Compliance
- Pressure Rating
- 3300 psi max working
- HS Code
- 8424.89
Compatibility & Fitment
Complete LineLazer striper. Confirm power source (gas / battery), number of guns and tip sizes against the marking application before ordering. Bundled gun, hose and tip kit is listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns
17H458
Graco
Graco LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 2 Auto Guns
17H464
Graco
Graco LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns
17H467
Graco

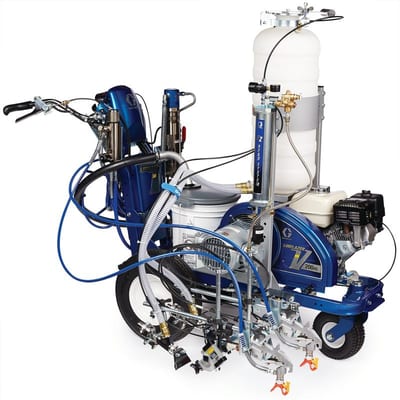

Graco LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns
17H465
Graco

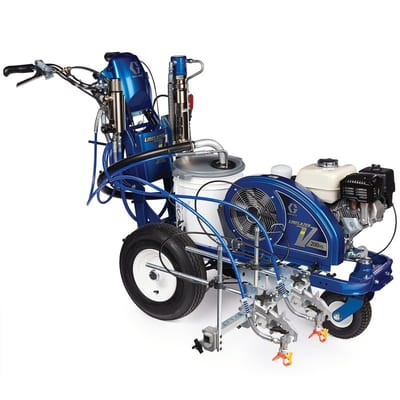

Graco LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns
17H461
Graco

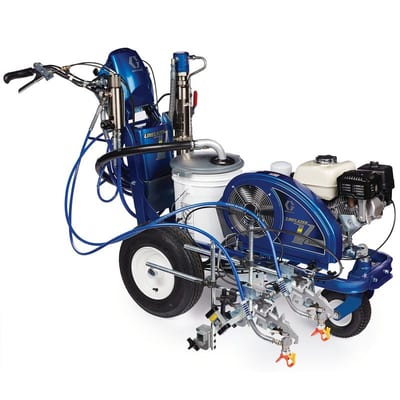

Graco LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun
17H463
Graco

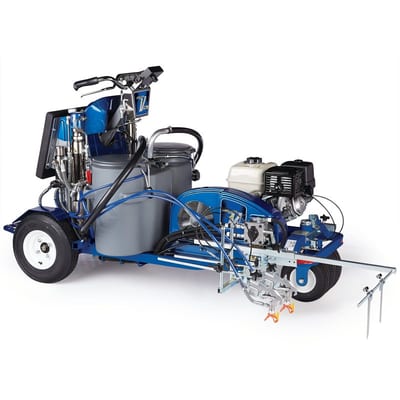

Graco LineLazer V 250DC HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 3 Auto Guns
17H472
Graco

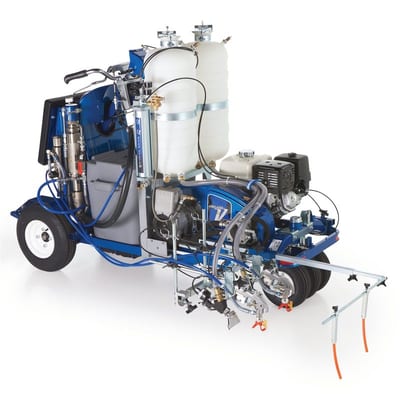

Graco LineLazer V 250SPS HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks
