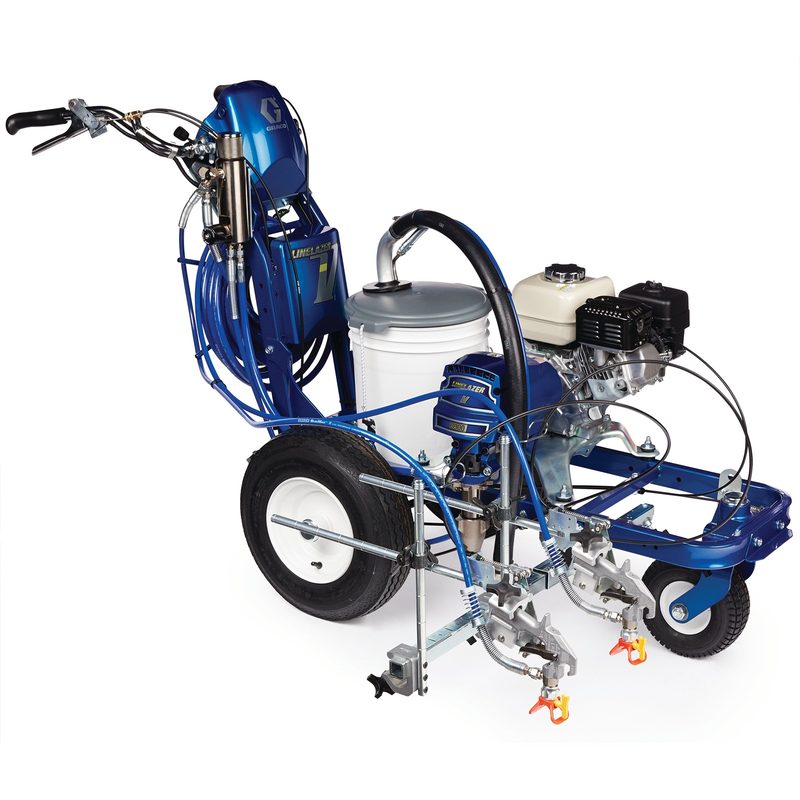

Graco LineLazer V 3900 Standard Series Gas Airless Line Striper, 2 Manual Guns

Graco 17H450 LineLazer V 3900 Standard Series Gas Airless Line Striper, 2 Manual Guns, part number 17H450. Graco LineLazer walk-behind line striper for applying airless pavement and athletic-field line markings. 3300 psi maximum working pressure. 1.25 gpm maximum flow rate. Gas powered. Honda GX120 engine. 2 gun(s). Maximum tip size 0.025 in. Weight 230 lb. All values read from the Graco product page (17H450 on graco.com).

Brand

Graco

Line

LineLazer

Part number

17H450

Attachments

None

Compatible Material

Road-Marking Paint

Compatible Surfaces

Pavement, Turf

Engine Brand

Honda

Engine Model

GX120

Fuel Tank Capacity (gal)

0.66

Gun Activation

2 Manual

Includes

Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz

Maximum Flow Rate (GPM)

1.25

Maximum Sound Pressure Level (dB(A))

85.5

Maximum Tip Size (in)

0.025

Maximum Working Pressure (psi)

3300

Model

LineLazer V

Number of Colors

One Color

Number of Guns

2

Number of Pumps

1

Overall Height (in)

44.5

Overall Length (in)

68.25

Overall Width (in)

34.25

Power Rating (HP)

4

Power Rating (kW)

2.98

Power Source

Gas

Product Series

Standard

Pump Type

Endurance

Series

3900

Type

Walk-Behind Line Striper

Weight (lb)

230

Fuel Tank Capacity (L)

2.5

Maximum Flow Rate (L/min)

4.7

Maximum Tip Size (cm)

0.0635

Maximum Tip Size (mm)

0.6350

Maximum Working Pressure (bar)

227

Maximum Working Pressure (kPa)

2270

Overall Height (cm)

113.03

Overall Height (mm)

1130.3

Overall Length (cm)

173.36

Overall Length (mm)

1733.55

Overall Width (cm)

87.0

Overall Width (mm)

870

Recommended Annual Usage

Up to 500 gallons per week

Weight (kg)

104

Pressure Rating

3300 psi max working

HS Code

8424.89
