Glamox
E20-S G2 LED M/NM E1/ST
Part numberE20660102EAN / GTIN7020940359825
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

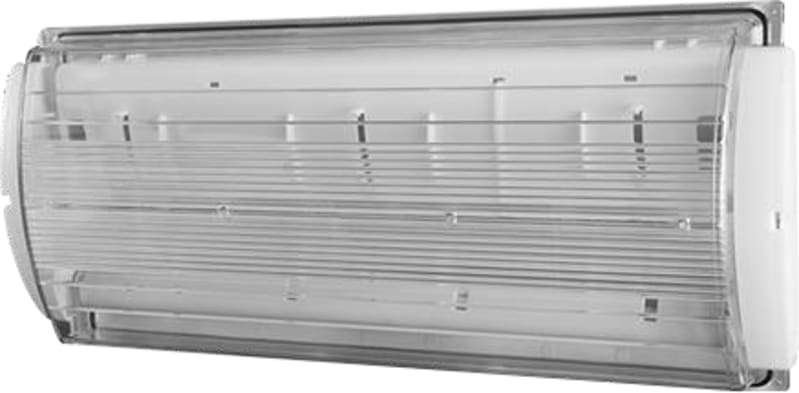

Glamox E20660102 E20-S G2 LED M/NM E1/ST.
Technical Specifications
- Manufacturer part number (MPN)
- E20660102 EAN / GTIN: 7020940359825 Sales unit: pcs Product shape: Rectangular Certification: ENEC minimum TA (ºC): -20 Maximum TA (ºC): 30 IK classification: 06 IP classification: 65 Light source: LED Lumen Out (lm): 132 Lumen Per Watt (lm/W): 66 MacAdam step: 3 Type of LED Driver: M-NM: Maintained/Non-Maintained LED Lifetime L70B50 Ta25 (h): 70000 LED Lifetime L80B50 Ta25 (h): 50000 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 2 IEC Protection Class: II Emergency Type: ST = Self test Duration (hrs): 1 Charging power consumption (Emg) (W): 1.50 Percentage Light Out In Emergency: 100 Reading distance sign (m): 24 Body material: Polycarbonate Treatment housing: Reinforced Body Colour: WH - White Main Body Colour Name: White Length (mm): 330 Width (mm): 144 Height (mm): 78 Item Net Weight (kg): 0.83 Termination: 3x2x2.5mm2 Push In Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 0.90
Cross References
- EAN 7020940359825
- SAP 1200566831
- Code 82907692
Product Documentation
Document preview: E20-S G2 LED M/NM E1/ST (E20660102) — Specification sheet
