Glamox

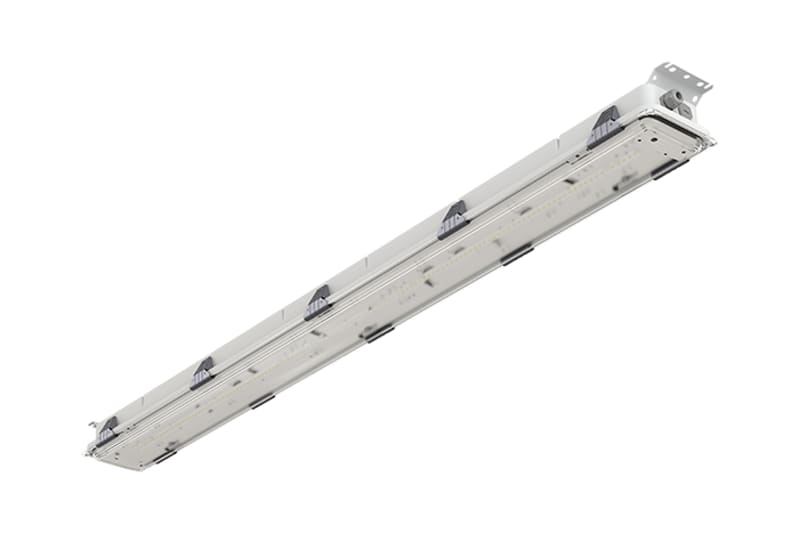

MIRZ67-1500 G2 11000 HF 840 TW M20 FR/PC
Part numberMIR099061EAN / GTIN7054130990611HS code8543.70
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox MIR099061 MIR G2 is a IP66/67 industrial lighting fixture with long service life. Luminaire Housing in aluminium-/sinkbehandlet steel (Z). display in polycarbonate. IK10.
Technical Specifications
- Manufacturer part number (MPN)
- MIR099061 EAN / GTIN: 7054130990611 HS code: 8543.70 Sales unit: pcs Product shape: Linear Certification: DNV Marine Approved: No EX zone: No Ex Leakage Current (mA): 0.30 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 180 Main Feed DC (V) Max: 270 Total Consumption (W): 77 Number Of Luminaire MCB 10B: 13 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 minimum TA (ºC): -25 Maximum TA (ºC): 30 IK classification: 10 IP classification: 66/67 Corrosion class: C3 Light source: LED Lumen Out (lm): 11.034 Number Of Light Source: 1 Lumen Per Watt (lm/W): 143 Lamp colour temp (K): 4000 Colour Rendering Index: >80 Light Distribution Up %: 2 Light Distribution Down %: 98 MacAdam step: 3 Energy Class Light Source: C Light Source Included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta45 (h): 100000 Optic Name: FR/PC - Frosted diffuser in polycarbonate Diffuser material: Polycarbonate Optic main category: Diffuser Body material: Aluminium/ zinc-treated steel Body Colour: WH - White Main Body Colour Name: White Mounting bracket type: GL std. Length (mm): 1.634 Width (mm): 158 Height (mm): 95 CC Min: 1.614 CC max: 1.614 Item Net Weight (kg): 6.55 Termination: 5X6.0mm2 Screw Terminal Through Wiring: 5x2.5 Cable Gland: M20-Polyamide Number of Glands: 2 Blinds: M20-Polyamide Number of Blinds: 2 Max Cable Diameter (mm): 14 Min Cable Diameter (mm): 7 Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 7.12
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7054130990611
- SAP 1200722788
- Code 83848716
Product Documentation
Document preview: MIRZ67-1500 G2 11000 HF 840 TW M20 FR/PC (MIR099061) — Specification sheet
