Glamox
MIR KIT-600 G2 2500 HF 840 FR/PC IP66/67
Part numberMIR102120EAN / GTIN7054131021208
Lighting & Electrical Accessories
High-Bay Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

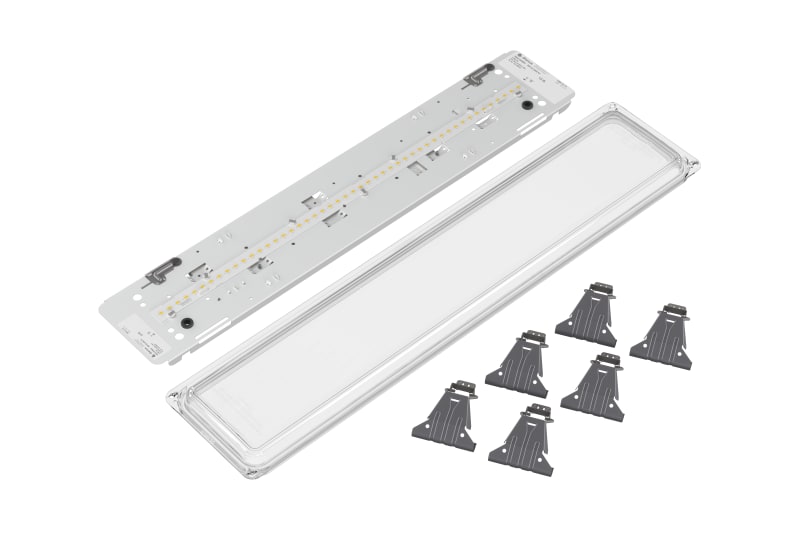

Glamox MIR102120 MIR KIT-600 G2 2500 HF 840 FR/PC IP66/67.
Technical Specifications
- Manufacturer part number (MPN)
- MIR102120 EAN / GTIN: 7054131021208 Sales unit: pcs IP rating: IP66 Product shape: Linear EPD (Environmental Product Declaration): Yes EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.30 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Main Feed DC (V) Min: 180 Main Feed DC (V) Max: 270 Total consumption (W): 18 Number of luminaires on a 10A MCB type B: 10 Number of luminaires on a 10A MCB type C: 16 Number of luminaires on a 16A MCB type C: 26 Marine approved: No EX zone: No Ex minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 45 IP classification: 66/67 Light source: LED Lumen out (lm): 2.678 Number of lamps: 1 Lumen per Watt (lm/W): 149 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 2 Light distribution down %: 98 MacAdam step: 3 Energy class light source: C Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L80 Median useful life LED Ta45 (hr): 100000 Optic: FR/PC - Frosted diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Steel Body colour: WH - White Main body colour name: White Length (mm): 645 Net weight (kg): 1.78 Termination: 5X6.0mm2 Screw Terminal Type of through wiring: 5x2.5 Cradle To Gate A1-A3 (Kg C02-eq): 24.36 Total Recyclable material %: 112.51 Actual Recycled material - EN15804 %: 17.2 Repairable/Changeable Parts: Internal driver,Optic Packaging material: Recycled cardboard Item gross weight (kg): 1.94
Cross References
- EAN 7054131021208
- SAP 1200790596
- Code 83957591
Product Documentation
Document preview: MIR KIT-600 G2 2500 HF 840 FR/PC IP66/67 (MIR102120) — Specification sheet
More from Glamox
Glamox
MAXS67-1200 G2 5000 HF EB3/S End+HNUT700
MAX103553
Glamox
Univ LED-kit (M) 2X600 2800 DALI 830
ULK103621
Glamox
Glamox RLX Junction-Box Gel Kit DxZ1 for Luminell Floodlight
1002600
Glamox
C77-P125X1200 WH 40/60 7000 WR (C77102287)
Glamox
RLXC 80WAC1 MB40 2ABAABK
LN1000017
Glamox
RLXDXZ2.21 240WAC1D Wide 3HEBABK
LN1002750
Glamox
RLX DXZ1 240WAC1D SB15 3HEAABK
LN1002396
Glamox
RLXCXZ1 80WAC1D Wide 2HCBABK
LN1002273
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MIR102120?
- MIR102120 can be ordered from cballast.com as a Glamox catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Glamox product?
- The manufacturer part number is MIR102120.
- Who manufactures MIR102120?
- MIR102120 is a Glamox product in the Lighting & Electrical Accessories range.
- Is a datasheet available for MIR102120?
- Yes — the MIR102120 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MIR102120?
- The minimum order quantity is 1.
- Is MIR102120 available?
- Yes — MIR102120 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for MIR102120?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
