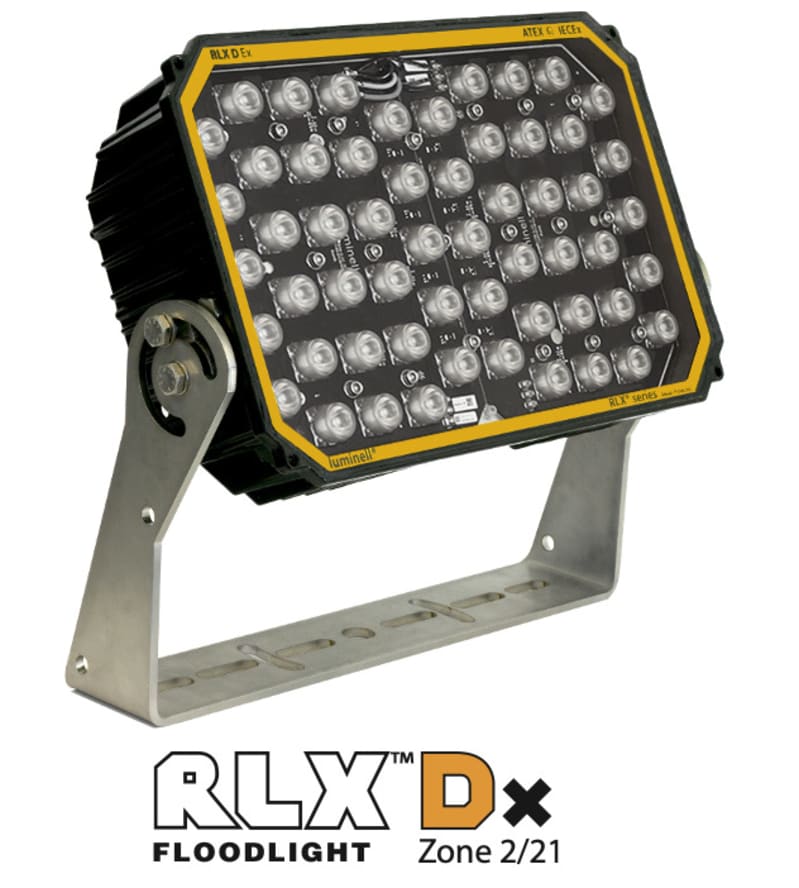

RLXDXZ2.21 240WAC1D Wide 3HEBABK

Glamox LN1002750 RLX Dx Floodlight Ex Zone 2.21, 240W, Wide beam (80x60), 15kg, dimmable, 2xM25, 2xM20.

Manufacturer part number (MPN)

LN1002750 EAN / GTIN: 7072720003480 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 100 Maximum voltage +10% (VAC): 277 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 100 Main Feed DC (V) Max: 300 Total consumption (W): 240 Inrush current (A): 200 Number of luminaires on a 10A MCB type B: 4 Number of luminaires on a 10A MCB type C: 7 Number of luminaires on a 16A MCB type B: 6 Number of luminaires on a 16A MCB type C: 10 Certification: ATEX,Ex Zone 2,Ex Zone 21,Ex Zone 22,IECEx,INMETRO Marine Approved: Yes Ignition Class: T4135° Atex code: Ex II 3G II 2D Class Ex Gas: IIC Class Ex Dust: IIIC Max surface temp Dust: 135 Class III: No EX zone: Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -55 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 22.062 Number of lamps: 1 Lumen per Watt (lm/W): 92 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 MacAdam step: 3 Light source included: Yes Dimmable: Yes Beam angle (°): 80x60 Optic: WB - Wide beam material of diffuser: Structured Glass Type of LED Driver: HFDa: Dimming Analogue 1-10V Number of Driver: 1 L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 444 Width (mm): 143 Height (mm): 397 Net weight (kg): 14.26 Termination: 4x6+2x16+8x2.5mm2 Spring Cage Maximum core diameter: 6 mm2 minimum core diameter: 0.5 mm2 Cable gland: M25-Nickel plated brass Number of cable glands: 2 Blind plugs: M20-Nickel plated brass Number of blind plugs: 2 Max cable diameter (mm): 18 Min cable diameter (mm): 10 Item gross weight (kg): 15.50

HS Code

8543.70

• EAN 7072720003480
• SAP 1200575718
• Code 82939769
